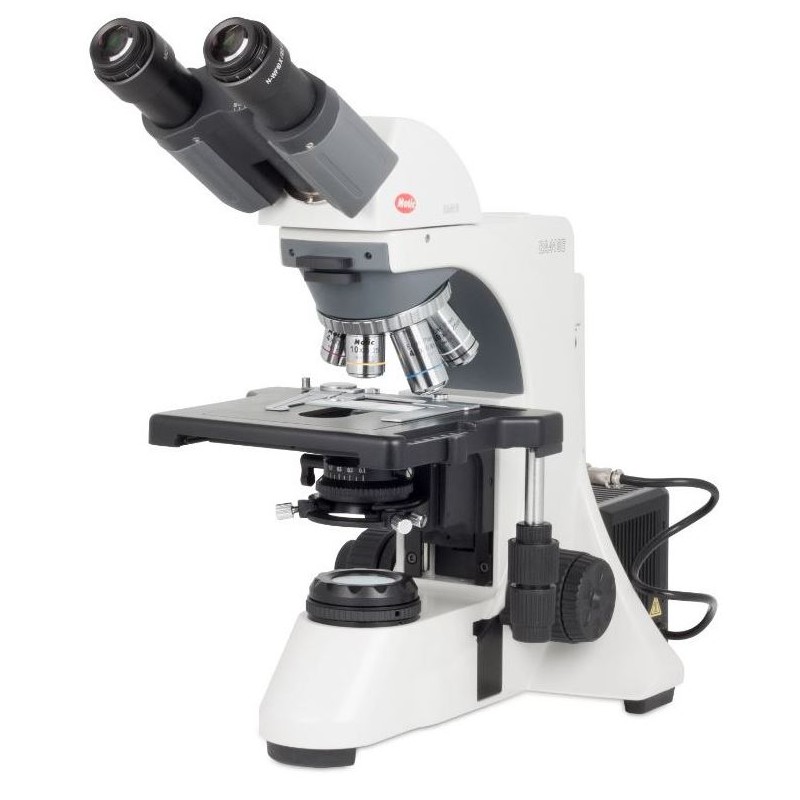

Motic Microscope BA410 Elite, bino, Hal, 50W, 40x-1000x (53497)

The BA410 Elite Series is Motic’s advanced clinical and laboratory microscope platform, designed to deliver the highest level of optical performance for demanding applications. This flagship model is ideal for pathology, hematology, and cytology, where accurate color reproduction and high resolution are critical. The BA410E features a complete set of optional Plan Apochromatic lenses for exceptional color fidelity and resolution, increased numerical apertures for enhanced specimen detail, and innovative features like AUTO ON-OFF and light memory functions for efficient and safe laboratory operation. The rackless stage with a ceramic insert ensures long-term durability and perfectly flat slide placement.

Main Features

• Optional Plan Apochromatic lenses for maximum color fidelity and resolution

• AUTO ON-OFF function for energy savings and lab safety

• Light memory function with coded 6-fold nosepiece, recalling illumination settings for each objective

• Rackless stage with ceramic insert for highest abrasion resistance

BA410E Binocular Sextuple 50W Specification

Observation Tube
Binocular head, Siedentopf type, 30° inclined, 360° rotating
Widefield high eyepoint eyepieces N-WF 10X/22 mm with diopter adjustment and rubber eyecups

Nosepiece and Objectives
Reversed coded sextuple nosepiece
CCIS Plan achromatic objectives: EC-H PL 4X, 10X, 40X S, 100X S-Oil
Objective 1: 4X/0.10 (WD 15.9 mm)
Objective 2: 10X/0.25 (WD 17.4 mm)
Objective 3: 40X/0.65/S (WD 0.5 mm)
Objective 4: 100X/1.25/S-Oil (WD 0.15 mm)

Focusing and Stage
Coaxial coarse and fine focusing adjustment
Low position rackless stage with ceramic insert, reversible for right or left hand control
Stage size: 180 x 170 mm, travel range: 80 x 55 mm


Cross table design

Condenser and Illumination
Achromat swing-out condenser N.A. 0.90/0.13 with iris diaphragm
Koehler illumination quartz halogen 12V/50W with external lamp house and intensity control
Auto-OFF and Light Memory function
Brightness control: Yes

General Information
Optical system: Infinity
Magnification: Up to 1000x
Type of build: Binocular
Viewing posture: 30° oblique viewing, 360° rotating head
Revolver: 6-position
Wide-angle eyepiece: Yes
Filter holder: Yes
Color: Grey/black
Weight: 14,200 g
Height: 439 mm
Width: 242 mm
Length: 550 mm
Series: BA-410E

Included Accessories
45 mm blue filter
Clear glass
Immersion oil (5 ml)
Power cord
Allen hexagonal key
Vinyl dust cover
Dust cover bag: Yes

Field of Application
Medicine: Yes
Veterinary medicine: Yes
University: Yes
