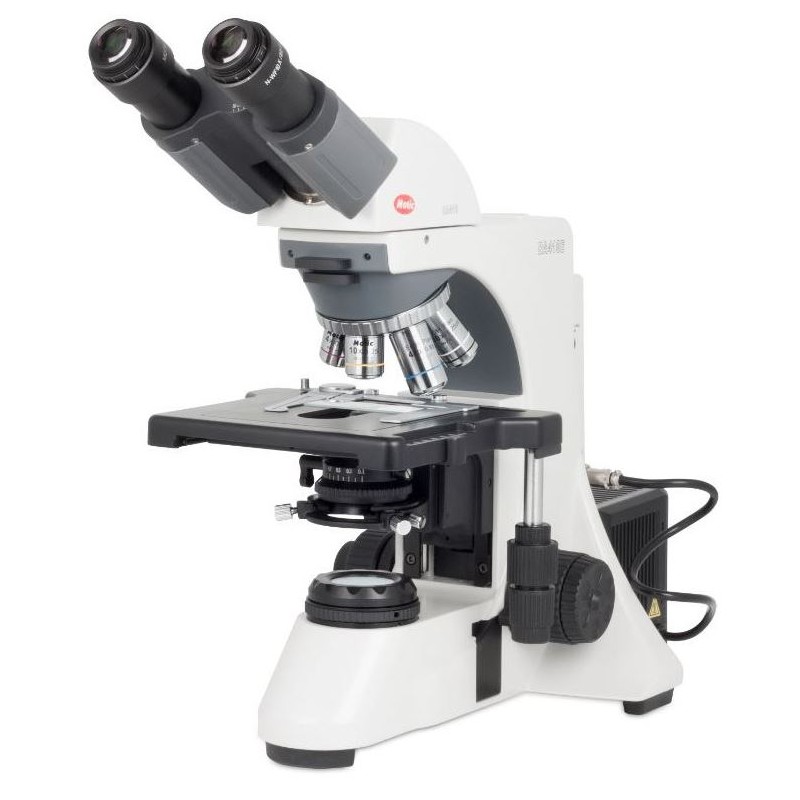

Motic Microscope BA410 Elite, bino, Hal, 100W, 40x-1000x (53499)

The BA410 Elite Series is Motic’s advanced clinical and laboratory microscope platform, offering top-tier optical performance for demanding professional environments. This flagship model is ideal for applications such as pathology, hematology, and cytology, where precise color reproduction and high resolution are essential. The BA410E features optional Plan Apochromatic lenses for superior color fidelity, higher numerical apertures for enhanced detail, and innovative features like AUTO ON-OFF and a light memory function for user convenience and lab safety. The rackless stage with a ceramic insert ensures durable, perfectly flat slide placement for a lifetime of use.

Main Features

• Optional Plan Apochromatic lenses for maximum color accuracy and resolution

• AUTO ON-OFF function for energy savings and improved laboratory safety

• Light memory function with coded 6-fold nosepiece, recalling illumination settings for each objective

• Rackless stage with ceramic insert for abrasion resistance and long-term durability

BA410E Binocular Sextuple 100W Specification

Observation Tube
Binocular head, Siedentopf type, 30° inclined, 360° rotating
Widefield high eyepoint eyepieces N-WF 10X/22 mm with diopter adjustment and rubber eyecups

Nosepiece and Objectives
Reversed coded sextuple nosepiece
CCIS Plan achromatic objectives: EC-H PL 4X, 10X, 40X S, 100X S-Oil
Objective 1: 4X/0.10 (WD 15.9 mm)
Objective 2: 10X/0.25 (WD 17.4 mm)
Objective 3: 40X/0.65/S (WD 0.5 mm)
Objective 4: 100X/1.25/S-Oil (WD 0.15 mm)

Focusing and Stage
Coaxial coarse and fine focusing adjustment
Low position rackless stage with ceramic insert, reversible for right or left hand control
Stage size: 180 x 170 mm, travel range: 80 x 55 mm
Cross table design

Condenser and Illumination
Achromat swing-out condenser N.A. 0.90/0.13 with iris diaphragm
Koehler illumination, quartz halogen 12V/100W with external lamp house and intensity control
Auto-OFF and Light Memory function
Brightness control: Yes

General Information
Optical system: Infinity
Magnification: Up to 1000x
Type of build: Binocular
Viewing posture: 30° oblique viewing, 360° rotating head
Revolver: 6-position
Wide-angle eyepiece: Yes
Filter holder: Yes
Color: Grey/black
Weight: 14,200 g
Height: 439 mm
Width: 242 mm
Length: 592 mm
Series: BA-410E

Included Accessories
45 mm blue filter
Clear glass
Immersion oil (5 ml)
Power cord
Allen hexagonal key
Vinyl dust cover
Dust cover bag: Yes

Field of Application
Medicine: Yes
Veterinary medicine: Yes
University: Yes
