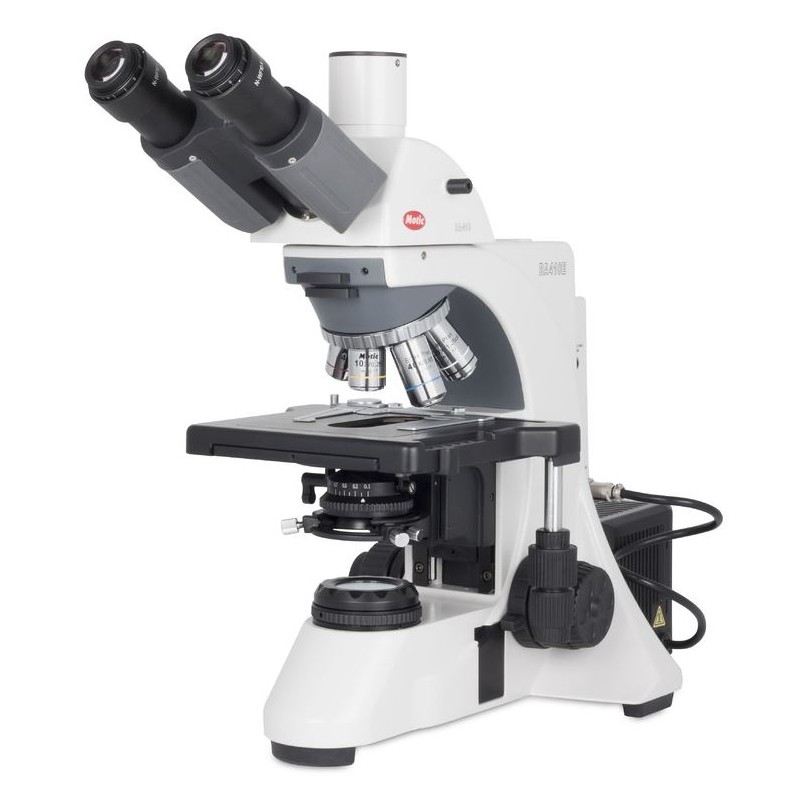

Motic Microscope BA410 Elite, trino, Hal, 100W, 40x-1000x (53500)

The BA410 Elite is the advanced version of Motic’s well-known BA410 flagship microscope, offering exceptional optical performance. This model is designed for the highest standards in color reproduction and resolution, making it ideal for pathology, hematology, and cytology, where precise color fidelity is critical. The BA410 Elite now features a full range of Plan Apochromatic lenses for outstanding color accuracy and enhanced resolution, thanks to increased numerical apertures. This allows for more detailed and accurate specimen evaluation.

This microscope is modular and can be adapted for advanced contrast techniques such as phase contrast, polarization, dark field, and epi-fluorescence with the appropriate accessories. The EC-H objectives ensure excellent field flatness, color reproduction, and contrast across the entire 22mm field of view. The BA410 Elite can also be upgraded for multi-user teaching or discussion purposes.

Key Features

• Plan Apochromatic lenses available for superior color correction and resolution

• AUTO ON-OFF function for energy efficiency and improved laboratory safety, removing the need for a final equipment check at the end of the day

• Light memory function with a coded six-position nosepiece that remembers the last light intensity setting for each objective position, ensuring consistent illumination and saving time when changing magnification

• Rackless stage design, as seen in the BA210/BA310 Elite models, is now included for greater durability and ease of use

• Ceramic stage insert for maximum abrasion resistance and a perfectly flat surface for glass slides, ensuring long-term reliability

• Optional 100W Halogen illumination for increased brightness

Included Accessories

• 45mm blue filter

• Clear glass

• 5ml immersion oil

• Power cord

• Allen hexagonal key

• Vinyl dust cover

BA410E Trinocular Sextuple 100W – Specifications

• Trinocular Siedentopf head, inclined at 30°, with 360° rotation

• Widefield high eyepoint eyepieces (N-WF 10X/22mm) with diopter adjustment and rubber eyecups

• Reversed, coded sextuple nosepiece

• CCIS Plan achromatic objectives: EC-H PL 4X, 10X, 40X S, 100X S-Oil

• Coaxial coarse and fine focusing adjustment

• Low-position, rackless stage with ceramic insert and reversible right or left hand control

• Achromat swing-out condenser with numerical aperture 0.90/0.13 and iris diaphragm

• Koehler illumination with 12V/100W quartz halogen lamp, external lamp house, and intensity control

• Auto-OFF and light memory functions

• Universal power supply (100V-240V, CE certified)
