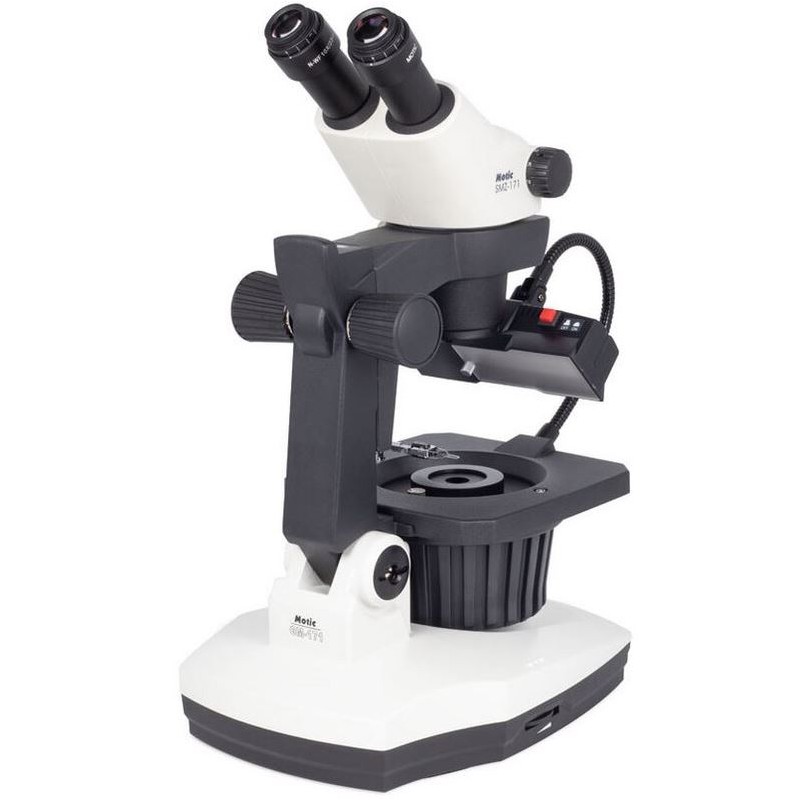

Motic Stereo zoom microscope GM-171, bino, 7.5-50x, wd 110mm (66098)

The Motic GM-171 Stereo Zoom Microscope is a versatile instrument designed for detailed observation in fields such as industry, mineralogy, and microbiology. It features a binocular head with a wide zoom range and both incident and transmitted illumination, making it suitable for examining a variety of specimens. With its robust construction, ergonomic design, and included accessories, this microscope is ideal for both routine and specialized applications.

Optical System and Viewing

• Optical system: Greenough

• Inclination: 45° inclined head for comfortable viewing

• Interpupillary distance: Adjustable from 52 to 75 mm

• Diopter adjustment: On both eyepieces, +/- 5 diopter

• Eyepieces: Widefield WF10X/23mm for a broad field of view

• Objective system: Zoom with a 6.7:1 ratio, providing magnification from 0.75X to 5X

• Total magnification: 7.5X to 50X

• Working distance: 110 mm for easy specimen manipulation

Stand and Focusing

• Stand type: 360° rotary base for flexible positioning

• Head holder: For Ø76 mm head

• Focus mechanism: Coarse focusing system with tension adjustment

• Focusing stroke: 125 mm

• Column/Arm height: 268 mm, with a 45° tilting arm

Illumination

• Incident illumination: Fluorescent 7W with gooseneck, adjustable for precise lighting

• Transmitted illumination: Quartz halogen 6V/30W with intensity control

• Illumination features: Includes a darkfield illuminator for enhanced contrast

• Diaphragm: Iris diaphragm, adjustable aperture from Ø41 mm to Ø2 mm

• Transformer: Internal

• Power supply: 100-240V (CE certified), VDE plug

Stage and Mechanics

• Specimen stage: Spacious base (306 x 236 mm) for stable specimen placement

• Viewing posture: 45° inclined for ergonomic use

• Type of build: Binocular

Special Features and Accessories

• Brightness control: Yes

• Wide-angle eyepiece: Yes

• Dust cover bag: Included

• Stainless steel wire stone holder: Included

• Aluminium carrying case: Included

• Centering stage: Not specified

General Information

• Dimensions (L x W x H): 391 x 236 x 505 mm

• Net weight: 8.2 kg

• Colour: Grey/black

• Series: GM

Fields of Application

• Suitable for industry, mineralogy, and microbiology

This microscope provides a complete solution for users who require high-quality imaging, flexible illumination, and durable construction for professional or research environments.
