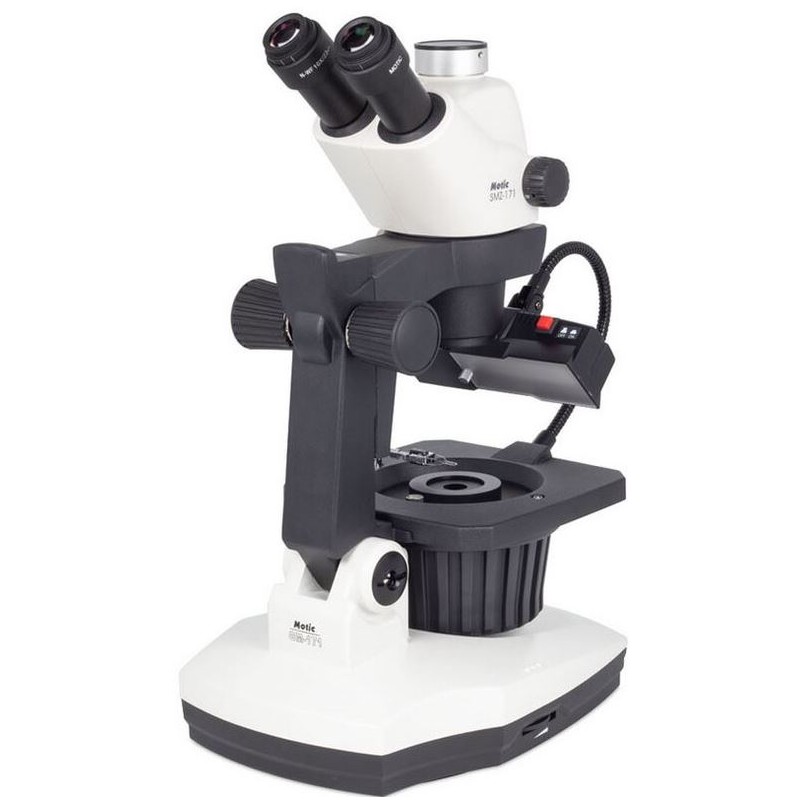

Motic Stereo zoom microscope GM-171, trino, 7.5-50x, wd 110mm (66099)

The Motic GM-171 Trinocular Stereo Zoom Microscope is designed for professional applications in industry, mineralogy, and microbiology. Its trinocular head allows for both direct observation and digital imaging, making it suitable for documentation and analysis. With a wide zoom range, ergonomic design, and versatile illumination options, this microscope provides precise and comfortable viewing for a variety of specimens. Its robust build and included accessories ensure reliable performance in demanding environments.

This microscope offers a comprehensive solution for users who need high-quality imaging, flexible illumination, and the ability to document or share observations through a camera port. Its durable construction and thoughtful design make it a reliable choice for professional and research settings.

Head and Optical System

• Head: Trinocular for simultaneous viewing and camera attachment

• Optical system: Greenough

• Inclination: 45° inclined for ergonomic use

• Interpupillary distance: Adjustable from 52 to 75 mm

• Diopter adjustment: On both eyepieces, +/- 5 diopter

• Eyepieces: Widefield WF10X/23mm for a broad field of view

• Objective system: Zoom, 6.7:1 ratio, providing 0.75X to 5X magnification

• Total magnification: 7.5X to 50X

• Working distance: 110 mm for easy specimen handling

Stand, Focusing, and Stage

• Stand type: 360° rotary base for flexible positioning

• Head holder: For Ø76 mm head

• Focus mechanism: Coarse focusing system with tension adjustment

• Focusing stroke: 125 mm

• Column/Arm height: 268 mm, with a 45° tilting arm

• Specimen stage: Large base (306 x 236 mm) for stable placement

Illumination

• Incident illumination: Fluorescent 7W with adjustable gooseneck for precise lighting

• Transmitted illumination: Quartz halogen 6V/30W with intensity control

• Illumination features: Includes a darkfield illuminator for enhanced contrast

• Diaphragm: Iris diaphragm, adjustable aperture from Ø41 mm to Ø2 mm

• Transformer: Internal

• Power supply: 100-240V (CE certified), VDE plug

Additional Features and Accessories

• Brightness control: Yes

• Wide-angle eyepiece: Yes

• Dust cover bag: Included

• Stainless steel wire stone holder: Included

• Aluminium carrying case: Included

• Centering stage: Not specified

General Information

• Dimensions (L x W x H): 391 x 236 x 505 mm

• Base: 306 x 236 mm

• Net weight: 8.2 kg

• Colour: Grey/black

• Series: GM

Fields of Application

• Suitable for industry, mineralogy, and microbiology
