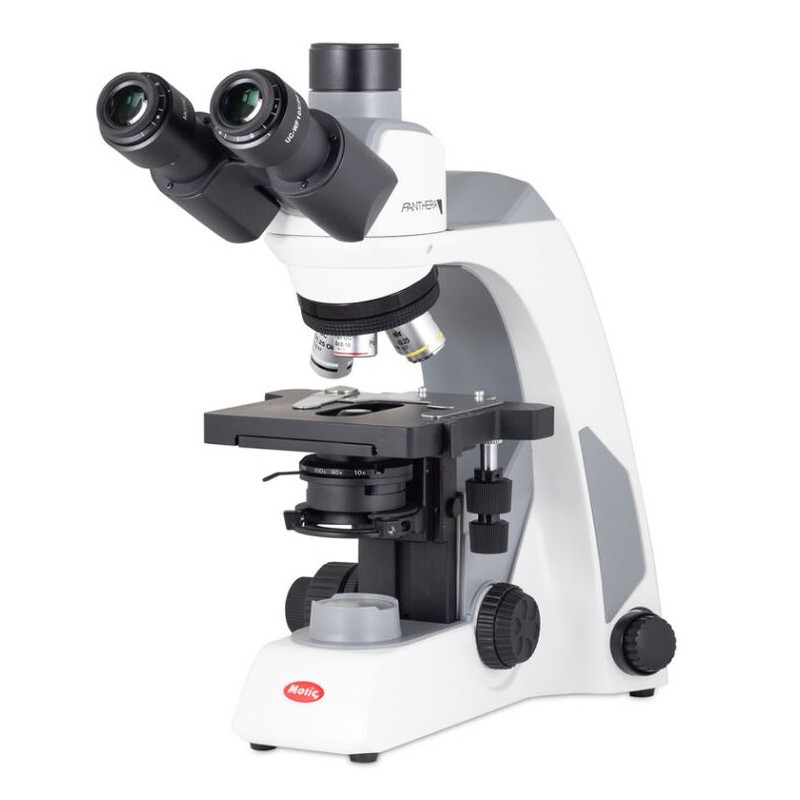

Motic Microscope Panthera E2, Trinocular, HF, Infinity, plan achro., 40x-1000x, fixed Koehl.LED (65803)

The Motic Panthera E2 Trinocular Microscope is a versatile and advanced instrument suitable for a wide range of applications in medicine, biology, education, industry, and research. It features a modern infinity-corrected optical system and plan achromatic objectives, ensuring sharp and accurate imaging across all magnifications. With its trinocular head, this microscope supports both direct observation and digital imaging, making it ideal for documentation and analysis. The Panthera E2 is equipped with a robust mechanical stage, ergonomic controls, and efficient LED illumination for comfortable and reliable daily use.

Optics and Viewing

• Magnification: 40x to 1000x, covering a broad range of observation needs

• Eyepiece: Widefield UC-WF 10x/22mm for a large, clear field of view

• Lens type: Plan, achromatic (CCIS) for flat, color-corrected images

• Optical system: Infinity-corrected (CCIS) for superior image quality and flexibility

• Trinocular head: Allows for both eyepiece viewing and camera attachment

• Viewing posture: 25° inclined for ergonomic comfort

Objectives

• 4x/0.10, working distance 30.5 mm

• 10x/0.25, working distance 17.4 mm

• 40x/0.65/S, working distance 0.6 mm

• 100x/1.25/S-Oil, working distance 0.16 mm

Condenser and Lighting

• Condenser: Abbe N.A. 0.90/1.25, with slider slot, centering, and iris diaphragm for precise light control

• Lighting: Transmitted light with fixed Köhler LED system for bright, even illumination

• Lamp type: LED (interchangeable with halogen if needed)

• Brightness control: Yes, for optimal viewing conditions

Stage and Mechanics

• Specimen stage: Cross table for precise sample movement

• Revolver: 4-position nosepiece for quick objective changes

• Focusing: Coarse and fine movement for accurate focusing

• Build: Trinocular, robust and stable

Power and Features

• Power supply: 100-240V, VDE plug (CE) mains adaptor

• Transformer: Internal for reliable operation

• Filter holder: Included for contrast enhancement

• Wide-angle eyepiece: Yes (10x/22)

• Dust cover bag: Included to protect the microscope

General Information

• Colour: Grey/black

• Weight: 7500 g

• Dimensions: 396 mm (length) x 210 mm (width) x 282 mm (height)

• Series: Panthera

Fields of Application

• Suitable for medicine, industry, education, biology, veterinary medicine, materials science, botany, microbiology, cytology, pathology, secondary and high school, internal medicine, urology, marine biology, technical training, and central laboratories

This microscope is a reliable choice for professionals and educators who require high-quality imaging, ergonomic operation, and flexible application options in their daily work.
