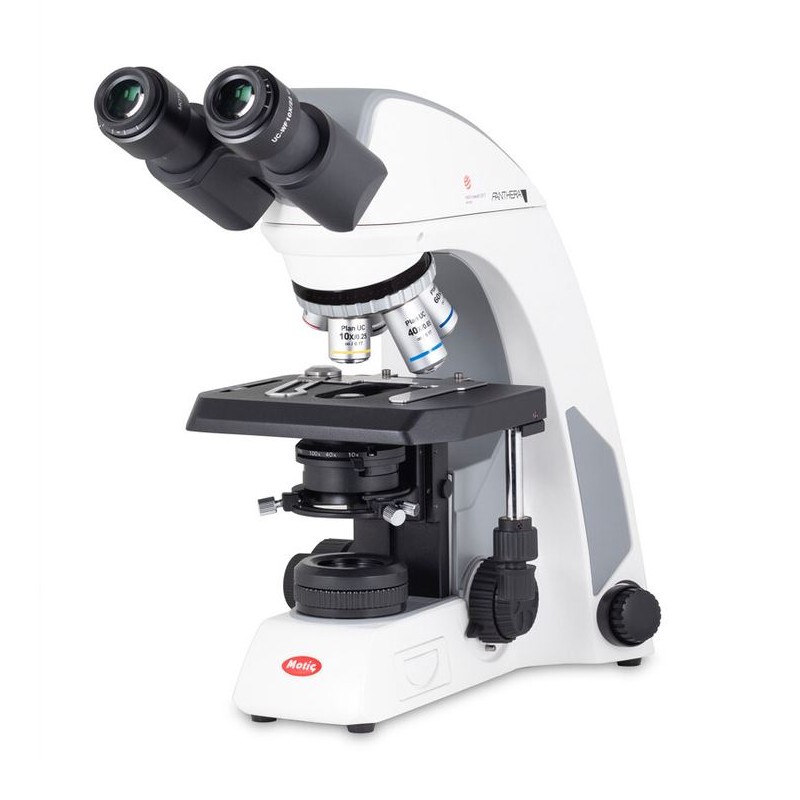

Motic Microscope Panthera C2, bino, infinity, plan, achro, 40x-1000x, Halogen/LED (69236)

The Panthera C2 microscope range is designed to deliver outstanding results when working with colored sections, native smears, fine needle biopsies, or blood smears, whether or not a protective cover slip is used. The advanced ultra contrast (UC) objectives, featuring additional glass elements, provide a wide 22 mm visual field and are optimized for use with neutral eyepieces. With the CCIS© (Colour Corrected Infinity Optical System), users benefit from a fully corrected, digitally accessible intermediate image, ensuring exceptional color fidelity and contrast. The Panthera C2 combines powerful hardware, precise illumination, and intuitive handling to support demanding laboratory and clinical tasks.

Optics and Viewing

• Magnification: Up to 1000x for detailed specimen examination

• Eyepiece: UC-WF 10x/22mm widefield for a large, clear viewing area

• Lens type: Plan, achromatic (CCIS) for flat, color-accurate images

• Optical system: Infinity-corrected for superior imaging flexibility

• Objectives:

  • 4x/0.10, working distance 30.5 mm

  • 10x/0.25, working distance 17.4 mm

  • 40x/6.65/S, working distance 0.6 mm

  • 100x/1.25/S-Oil, working distance 0.16 mm

Illumination and Condenser

• Lighting: Transmitted light for brightfield observation

• Lamp type: Halogen, with the option to interchange with LED

• Condenser: Abbe condenser (NA 1.25) with slider slot, centering, and iris diaphragm for precise light control

• Brightness control: Yes, for optimal illumination

Stage and Mechanics

• Type of build: Binocular for comfortable viewing

• Focusing: Coarse and fine adjustments for precise focusing

• Specimen stage: Cross table (185 x 145 mm) for stable and accurate sample movement

• Revolver: 5-position nosepiece for quick objective changes

Additional Features

• Filter holder: Included for enhanced contrast and imaging options

• Wide-angle eyepiece: Yes (10x/22)

• Dust cover bag: Included for protection

General Information

• Colour: Grey/black

• Weight: 8400 g

• Dimensions: 396 mm (length) x 210 mm (width) x 282 mm (height)

• Series: Panthera

Fields of Application

• Suitable for medicine, industry, hobby, biology, education, veterinary medicine, university, materials science, botany, microbiology, cytology, pathology, technical training, marine biology, and central laboratories

The Panthera C2 is an excellent choice for professionals and educators who require high-quality imaging, reliable performance, and flexible application options in laboratory and clinical environments.
