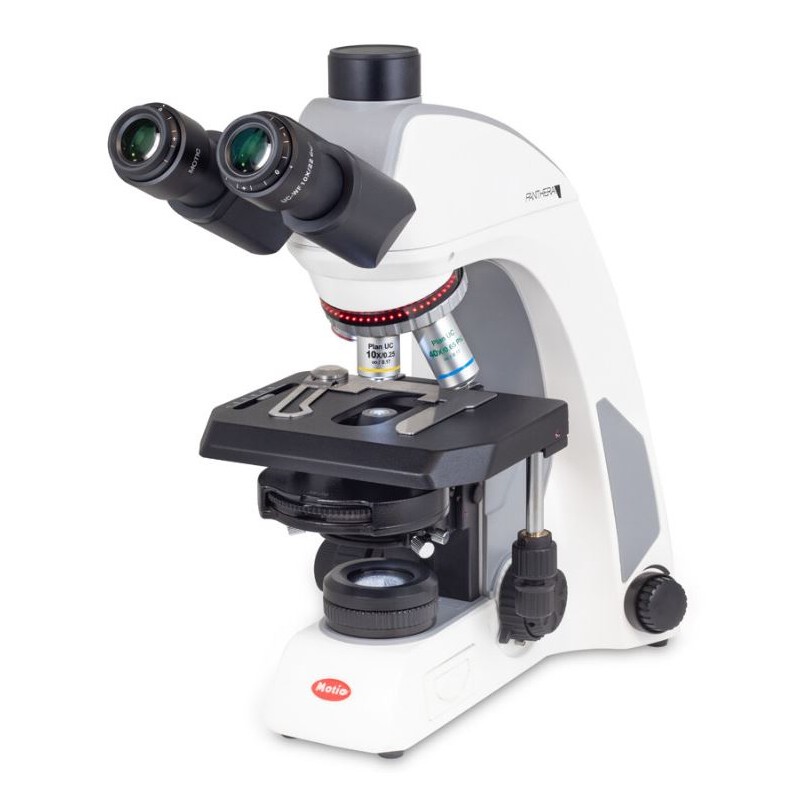

Motic microscope Panthera C2, phase package, trino, infinity, plan, achro, 40x-400x, Halogen/LED (73957)

The Panthera C2 trinocular phase package is designed for advanced laboratory work involving colored tissue sections, native smears, fine needle biopsies, and blood smears, with or without a cover slip. Its ultra contrast (UC) objectives with additional glass elements provide a wide 22 mm field of view and exceptional image clarity when used with neutral eyepieces. The CCIS© (Colour Corrected Infinity Optical System) ensures a fully corrected, digitally accessible intermediate image, delivering outstanding color fidelity and contrast. This microscope combines robust hardware, versatile illumination, and ergonomic handling, making it ideal for demanding clinical and research environments.

Optical and Viewing System

• Optical system: Motic CCIS® Limitless optics for high-quality, color-accurate imaging

• Observation tubes: Siedentopf-style trinocular head, 25° viewing angle, 360° rotatable

• Pupillary distance: Adjustable from 48 to 75 mm for user comfort

• Trinocular beam splitting: Fixed 50/50 for simultaneous viewing and imaging

• Eyepieces: UC-WF10X/22 with diopter compensation of +/- 5 dpt

Objectives and Nosepiece

• Nosepiece: 5-position, reversed, coded for fast and accurate objective changes

• Objectives: CCIS© Plan UC achromatic (lead-free)

  • 4X/0.1 (working distance 30.5 mm)

  • 10X/0.25 (working distance 17.4 mm)

  • 40X/0.65/S (working distance 0.6 mm)

• Objective thread: W 4/5" x 1/36" (RMS standard)

Stage and Focusing

• Stage: Compact mechanical cross table with rackless, coaxial controls and sample holder

• Stage surface: 185 x 145 mm

• Movement range: 75 x 50 mm

• Upper table stop: Factory preset, adjustable for specimen safety

• Focus mechanism: Coaxial coarse and fine adjustments, with fine increments as small as 2 µm

• Vertical table lift: 25 mm

Condenser and Contrast Techniques

• Condenser: Phase contrast variable condenser with 5 positions (Brightfield, Darkfield, Ph1, Ph2, Ph3) and iris diaphragm

• Bright field: Yes

• Phase contrast: Yes

• Polarization contrast: Optional with add-on

• Simple dark field: Yes

• LED fluorescence: Optional with intermediary LED module

Illumination and Lighting Functions

• Light source: 30W halogen lamp and 3W Köhler-type LED module, both interchangeable

• Light source compatibility: Halogen/LED with adjustable color temperature

• Lighting features: Motic LightTracer system with save function, sleep mode (automatic shut-down), and LED light intensity display on the nosepiece

• Filter holder: Located at the light exit point on the base, with fixing ring

Connectivity and Power

• Ports: USB 2.0 for connecting external cameras

• Power supply: 110-240V (CE certified)

General Information

• Dimensions (L x W x H): 282 x 210 x 396 mm

• Weight: 8.4 kg

• Includes: Dust cap, power cable, hex key, blue filter, halogen light source, LED module, centering telescope

Supplier product number: 1100104601172

The Panthera C2 trinocular phase package is a comprehensive solution for laboratories and clinics that require high-quality imaging, flexible contrast methods, and reliable performance for routine and advanced microscopy tasks.
