Motic microscope Panthera cloud, bino, digital, infinity, plan, achro, 40x-1000x, 10x/22mm, Halogen/LED, HDMI, 8MP (77020)

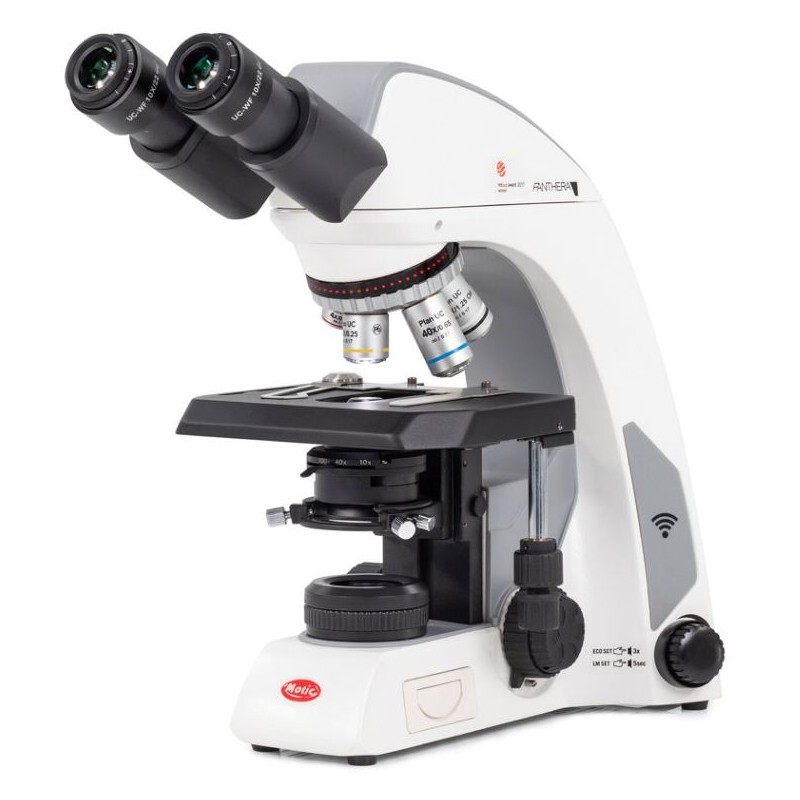

The Motic Panthera Cloud is a modern digital binocular microscope designed for advanced imaging and documentation in medicine, education, veterinary science, and technical training. This model features an infinity-corrected optical system, plan achromatic objectives, and a built-in digital camera for high-resolution capture and live image streaming. With both halogen and LED illumination options, ergonomic controls, and robust construction, the Panthera Cloud is an excellent choice for laboratories, classrooms, and clinical settings seeking reliable performance and digital connectivity.

Optical System and Viewing

• Magnification range: 40x to 1000x, suitable for a wide variety of specimens and applications

• Eyepiece: Widefield UC-WF 10x/22mm, providing a large and comfortable field of view

• Lens type: Plan, achromatic (CCIS) for flat, color-corrected images across the field

• Objectives:

  • 4x/0.10, working distance 30.5 mm

  • 10x/0.25, working distance 17.4 mm

  • 40x/0.65/S, working distance 0.6 mm

  • 100x/1.25/S-Oil, working distance 0.16 mm (immersion lens included)

• Condenser: Abbe condenser (NA 1.25) with slider slot, centering, and iris diaphragm for precise light control

• Optical system: Infinity-corrected for superior image quality and accessory compatibility

Illumination

• Lighting: Transmitted light for brightfield observation

• Lamp type: Halogen (with interchangeable halogen and LED lighting for flexibility)

• Brightness control: Yes, for optimal illumination of specimens

Stage and Mechanics

• Build: Binocular for comfortable viewing

• Focusing: Coarse and fine focus adjustments for precise control

• Specimen stage: Cross table, 185 x 145 mm, for stable and accurate sample movement

• Revolver: 5-position nosepiece for quick objective changes

• Pupillary distance: Adjustable from 48 to 75 mm

Digital Camera and Connectivity

• Built-in camera: 4 MP CMOS sensor for high-quality imaging and documentation

• HDMI output: Enables direct connection to monitors and projectors for live viewing and presentations

Additional Features

• Filter holder: Included for contrast enhancement

• Wide-angle eyepiece: Yes (10x/22)

• Dust cover bag: Included for protection

General Information

• Colour: Grey/black

• Weight: 8800 g

• Dimensions: 282 mm (length) x 210 mm (width) x 394 mm (height)

• Series: Panthera L

Fields of Application

• Suitable for medicine, education, veterinary medicine, university, gynecology, technical training, high school, and internal medicine

Supplier product number: 1100104601181

The Panthera Cloud microscope is a comprehensive solution for users who need high-quality optical performance, digital imaging capabilities, and flexible illumination in a single, easy-to-use instrument.
