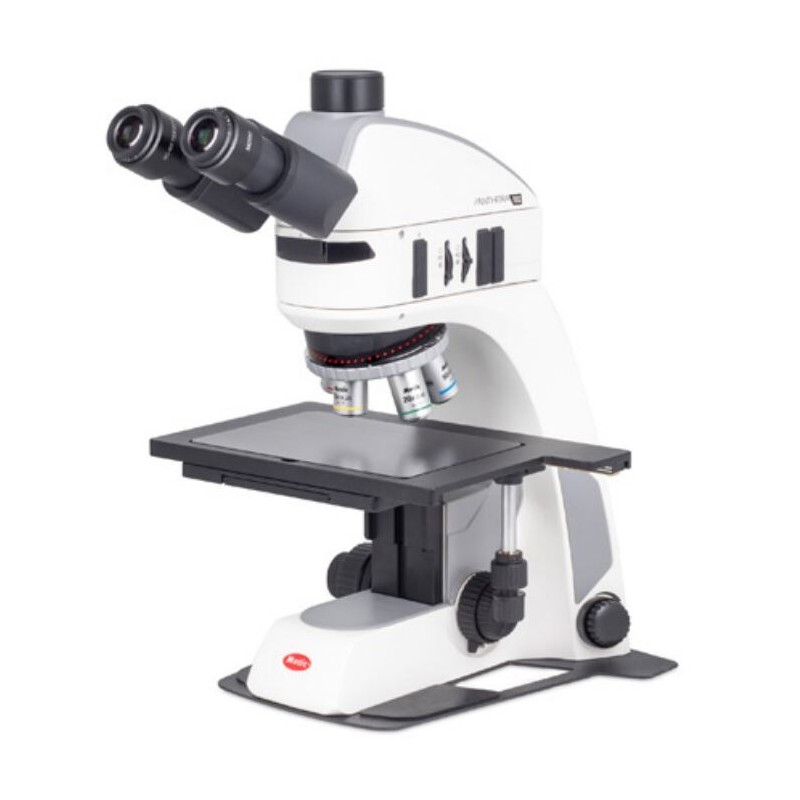

Motic Microscope Panthera TEC MAT BF-T trino, infinity, plan, 50x-500x, 10x/22mm, Al/Dl, LED, 3W (79921)

Microscopes in the Panthera TEC series are designed for precise inspection of semiconductors and composite materials, making them especially valuable for technical training and industrial quality control. They combine bright field, dark field, and simple polarization contrast with innovative segmental illumination, which provides oblique incident light. This feature is ideal for detecting scratches or other defects on flat, reflective surfaces without the need to reposition the sample.

The Panthera TEC BD models are equipped with LD Plan BD lenses that deliver excellent imaging performance and are mounted on a 5-position encoded nosepiece. The microscope automatically stores and recalls the light intensity for each lens position, ensuring consistent illumination when switching objectives. The compact epi-illumination system includes a polarizer and analyzer slot for polarization contrast and reducing internal reflections. Controls are provided to adjust incident light in both bright field and dark field modes, as well as the illumination angle. With a 22mm field of view, users benefit from a 21% larger visual area compared to standard 20mm systems. The trinocular version features a beam splitter set to 50/50 (visual/photo) with a 25° viewing angle.

Incident illumination is provided by a 3W LED with selectable color temperature, while the reflected/transmitted light stand for composite materials includes a transmitted light LED system with 39 LEDs in the condenser and a stage with a glass insert. Two stage sizes (6"x4" and 3"x2") offer flexibility for different sample dimensions. The Panthera TEC series bridges the gap in the Panthera family, allowing for easy and effective examination of opaque industrial samples with advanced optics, flexible configurations, and intelligent control features.

Optical Specifications

• Magnification: 50x to 500x for a range of inspection needs

• Eyepiece: UC-WF 10x/22mm for a wide and clear field of view

• Lens type: Plan, achromatic (CCIS) for flat, color-accurate images

• Optical system: Infinity-corrected for superior image quality

• Objectives:

  • Plan Achromat LD 5X/0.13 (working distance 20.3 mm)

  • Plan Achromat LD 10X/0.25 (working distance 17.5 mm)

  • Plan Achromat LD 20X/0.40 (working distance 8.1 mm)

  • Plan S-APO 50X/0.80 (working distance 1 mm)

• Condenser: LED for transmitted light

Illumination and Mechanics

• Lighting: Incident and transmitted LED illumination for versatile contrast techniques

• Lamp type: LED, including a 3W LED for incident light and 39-LED condenser for transmitted light

• Brightfield: Yes

• Build: Trinocular head for simultaneous viewing and imaging

• Focusing: Coarse and fine focus adjustments for precise control

• Specimen stage: Cross table, available in two sizes for different sample requirements

• Revolver: 5-position nosepiece for quick objective changes

Additional Features

• Dust cover bag: Included for protection

• Power supply: 100-240V, VDE plug (CE) mains adaptor for global compatibility

General Information

• Weight: 10,000 g

• Dimensions: 282 mm (length) x 210 mm (width) x 450 mm (height)

• Series: Panthera TEC MAT

Fields of Application

• Suitable for medicine, industry, veterinary medicine, university, semiconductor technology, and materials science

Supplier product number: 1100104600201

The Panthera TEC series provides advanced solutions for industrial and scientific users who require high-quality imaging, flexible illumination, and robust construction for material and quality inspection tasks.
