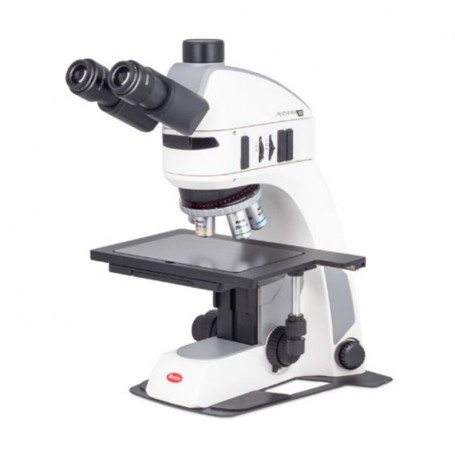

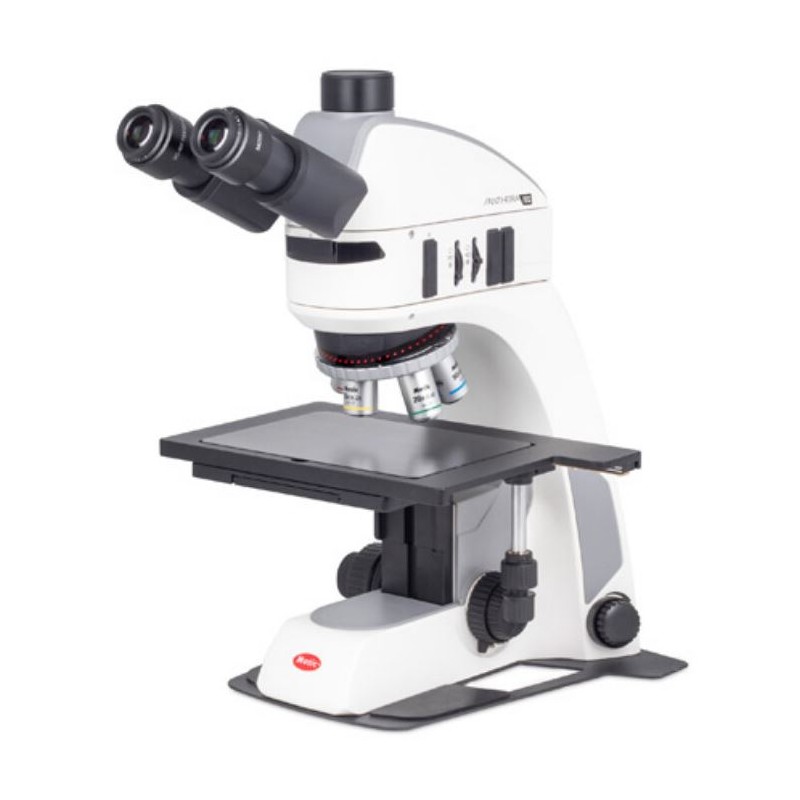

Motic Microscope Panthera TEC MAT BD trino, infinity, plan, 50x-500x, 10x/22mm, Al, LED, 3W (79922)

The Motic Panthera TEC MAT BD trinocular microscope is engineered for advanced material science, industrial inspection, and semiconductor analysis. This model is optimized for examining opaque samples using both brightfield and darkfield incident illumination, making it ideal for detecting surface defects, scratches, or inclusions on flat, reflective materials. The microscope is equipped with high-performance plan achromatic objectives, a wide field of view, and a robust mechanical stage, providing reliable and precise imaging for demanding laboratory and quality control environments. Its smart illumination and ergonomic controls ensure ease of use and consistent imaging results.

Optical System and Viewing

• Magnification range: 50x to 500x, suitable for detailed inspection of materials and surfaces

• Eyepiece: UC-WF 10x/22mm widefield, offering a large and clear field of view

• Lens type: Plan, achromatic (CCIS) for flat, color-accurate images

• Optical system: Colour Corrected Infinity Optical System (CCIS®) for high-quality imaging

• Objectives:

  • Plan Achromat BD 5X/0.13 (working distance 17.3 mm)

  • Plan Achromat BD 10X/0.25 (working distance 16.3 mm)

  • Plan Achromat BD 20X/0.40 (working distance 7.3 mm)

  • Plan S-APO BD 50X/0.80 (working distance 1 mm)

• Revolver: 5-position nosepiece for flexible objective selection

Illumination

• Lighting: Incident light only, optimized for opaque and reflective samples

• Lamp type: 3W LED, with adjustable color temperature for optimal contrast in various applications

• Brightfield and darkfield: Both modes available for comprehensive surface analysis

Stage and Mechanics

• Build: Trinocular head, Siedentopf type, 25° inclined, 360° swiveling for ergonomic viewing and camera attachment

• Interpupillary distance: Adjustable from 48 to 75 mm

• Diopter adjustment: On both eyepieces, +/- 4 diopter for individual eye correction

• Specimen stage: Large mechanical cross table for smooth and precise sample movement

• Focusing: Coaxial coarse and fine focus controls with tension adjustment for precise focusing

• Fine focus precision: 2 µm for detailed adjustments

• Focusing stroke: 25 mm

• Upper limit stop: Preset but adjustable for specimen safety

Additional Features

• Dust cover bag: Included for instrument protection

• Power supply: 100-240V, VDE plug (CE certified) for international compatibility

• Weight: 10,000 g

• Dimensions: 282 mm (length) x 210 mm (width) x 450 mm (height)

• Series: Panthera TEC MAT

Fields of Application

• Suitable for medicine, industry, veterinary medicine, university, semiconductor technology, and materials science

Supplier product number: 1100104600221

This microscope is an excellent solution for professionals who require robust optical performance, flexible illumination, and precise control for inspecting and analyzing industrial and scientific samples.
