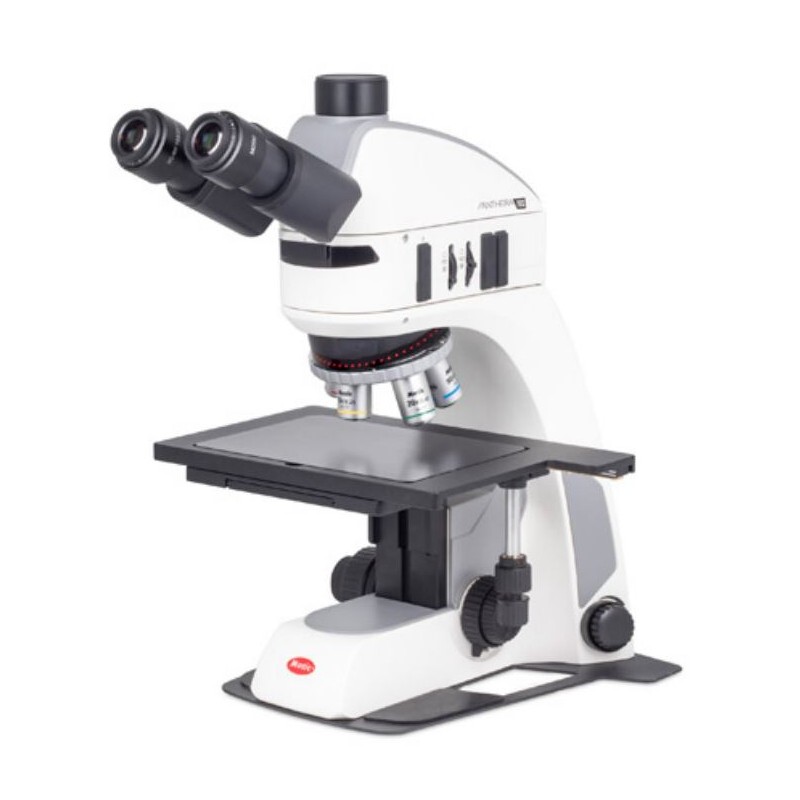

Motic Microscope Panthera TEC MAT BD-T trino, infinity, plan, 50x-500x, 10x/22mm, Al/Dl, LED, 3W (79923)

The Motic Panthera TEC MAT BD-T trinocular microscope is designed for advanced inspection tasks in material science, industry, and semiconductor technology. It is equipped for both brightfield and darkfield observation using incident LED illumination, making it especially effective for examining opaque, flat, or reflective samples for surface defects or inclusions. The microscope features plan achromatic objectives, a wide 22mm field of view, and a robust mechanical stage, ensuring precise and reliable imaging for demanding laboratory and quality control applications. With both incident and transmitted LED illumination, this model offers flexibility for examining a wide range of sample types, including semi-transparent materials.

Optical System and Viewing

• Magnification range: 50x to 500x, suitable for detailed material and surface inspection

• Eyepiece: UC-WF 10x/22mm widefield for a large, clear field of view

• Lens type: Plan, achromatic (CCIS) for flat, color-accurate images

• Optical system: Infinity-corrected (CCIS®) for high-quality imaging

• Objectives:

  • Plan Achromat BD 5X/0.13 (working distance 17.3 mm)

  • Plan Achromat BD 10X/0.25 (working distance 16.3 mm)

  • Plan Achromat BD 20X/0.40 (working distance 7.3 mm)

  • Plan S-APO BD 50X/0.80 (working distance 1 mm)

• Nosepiece: 5-position revolver for flexible objective selection

Illumination

• Incident illumination: 3W LED with integrated field and aperture diaphragms for optimal contrast and clarity

• Transmitted illumination: LED condenser included for examining semi-transparent samples

• Brightfield and darkfield: Both modes available for comprehensive surface analysis

• Adjustable LED color temperature to suit various observation needs

Stage and Mechanics

• Trinocular head, Siedentopf type, 25° inclined, 360° swiveling for ergonomic viewing and camera attachment

• Interpupillary distance: Adjustable from 48 to 75 mm

• Specimen stage: Large mechanical cross table, hard coated, with low-position coaxial controls and glass plate

• Stage size: 300 x 180 mm

• Travel range: 150 x 100 mm (6" x 4") for accommodating large samples

• Focusing: Coaxial coarse and fine focus with tension adjustment

• Fine focus precision: 2 µm

• Focusing stroke: 25 mm

• Upper limit stop: Preset and adjustable for specimen safety

Additional Features

• Dust cover bag included for protection

• Power supply: 100-240V, VDE plug (CE certified) for international use

• Weight: 10,000 g

• Dimensions: 282 mm (length) x 210 mm (width) x 450 mm (height)

• Series: Panthera TEC MAT

Fields of Application

• Suitable for medicine, industry, veterinary medicine, university, semiconductor technology, and materials science

Supplier product number: 1100104600231

This microscope is a reliable and flexible choice for professionals who require high-quality optics, versatile illumination, and precise mechanical control for the inspection and analysis of industrial and scientific samples.
