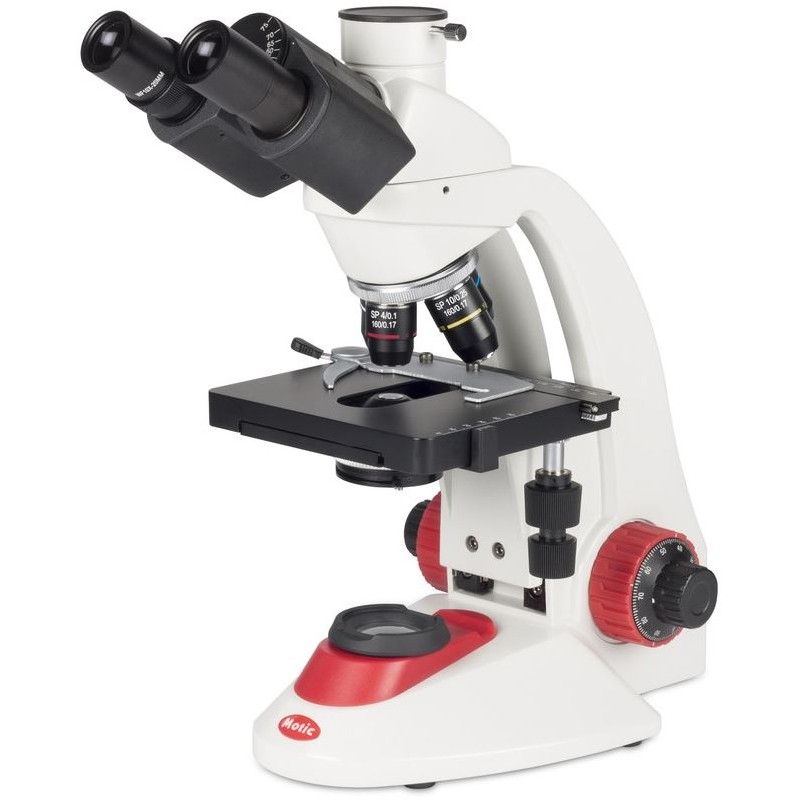

Motic Microscope RED223, trino, 40x - 1000x (52403)

The RED200 Series is specifically engineered for advanced biology students, teachers, professors, doctors, and laboratory technicians who demand stability, precision, and optical excellence in their microscopy work. The microscope’s large, heavy body ensures a stable platform, minimizing vibrations and unwanted movement during observation. Large coaxial focusing controls are easy to access and allow for precise adjustments. Motic’s finest Semi Plan Achromatic (SP) objectives are used in this series, delivering high contrast and sharp images across a wide 20mm field of view. Every RED200 Series microscope is equipped with 4X, 10X, 40X, and 100X/Oil objectives, covering the essential magnification range for most laboratory and educational applications.

RED223 Model Features

• Trinocular head, Siedentopf type, inclined at 30° and 360° rotatable for ergonomic and flexible viewing, with an additional port for camera attachment

• Widefield eyepieces WF10X/20mm for a broad and clear field of view

• Reversed quadruple revolving nosepiece for fast and easy switching between objectives

• Semi Plan Achromatic objectives: SP 4X, 10X, 40X S, 100X S-Oil for excellent image quality and contrast

• Coaxial coarse and fine focusing system with tension adjustment for smooth and precise focusing

• Built-in low position coaxial mechanical stage for stable and accurate specimen movement

• Focusable Abbe condenser N.A. 1.25 with iris diaphragm for optimal light control and contrast

• LED illumination (3W) with adjustable intensity for bright, even lighting

• 0.5X c-mount adapter included for easy camera integration

Specifications

• Optical system: DIN (160mm) for standard compatibility

• Magnification: 40x to 400x, suitable for a wide range of biological and educational uses

• Eyepiece: WF 10x/18, 45° angled and 360° rotatable for comfortable use

• Objectives:

  • 4x/0.10

  • 10x/0.25

  • 40x/0.65/S

  • 100x/1.25/S/Oil

• Lens type: Semi-Plan Achromatic for flat, high-contrast images

• Condenser: Abbe condenser, NA 1.25 with iris diaphragm for precise illumination

• Lamp type: LED (20mA, 3.5V, 70mW)

• Lighting: Transmitted light for brightfield microscopy

• Power supply: Battery charger or mains plug for flexible operation

• Brightness control: Yes, for optimal viewing

• Stage: Cross table (X/Y: 77 x 25 mm) for controlled specimen movement

• Revolver: 4-position nosepiece

• Type of build: Trinocular for simultaneous viewing and camera use

• Focusing: Coarse and fine movement for precise adjustments

• Viewing posture: 30° angled eyepiece, 360° rotatable

• Dust cover bag: Included for protection

• Rechargeable battery operation: Yes

General Information

• Colour: White and red, suitable for educational and laboratory environments

• Weight: 4.7 kg

• Dimensions: 234 mm (length) x 152 mm (width) x 360 mm (height)

• Series: RedLine200

Fields of Application

• Ideal for education and high school laboratory use

The RED223 microscope combines flexibility, quality, and robust construction, making it a dependable choice for advanced users in both educational and professional laboratory settings.
