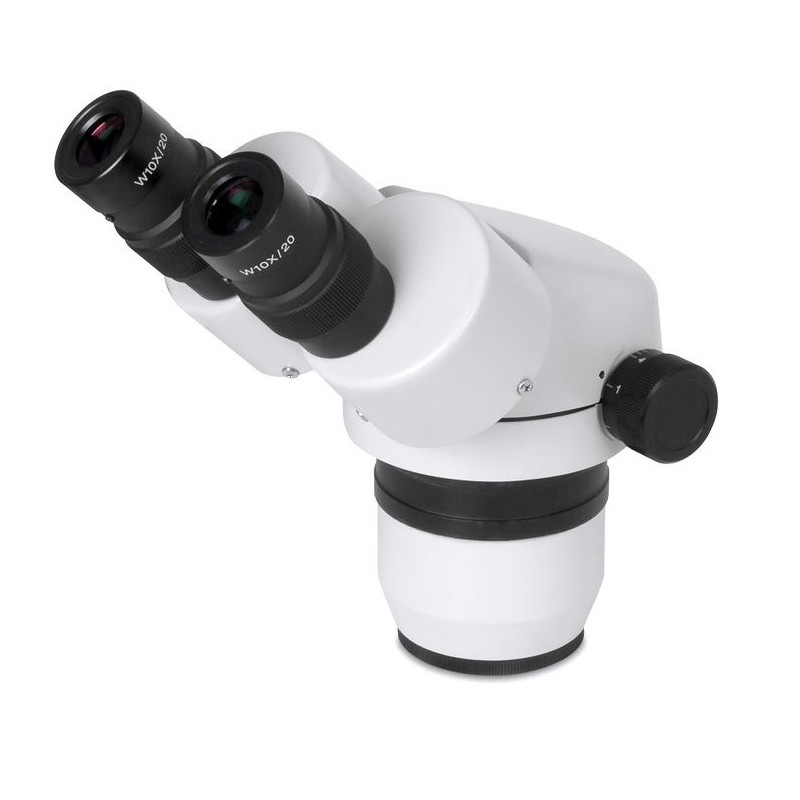

Motic SMZ-140 head, binocular (48012)
Experience the convenience and flexibility of viewing a large area of your sample at 10X magnification, then smoothly zooming in to see close-up details at 40X or any magnification in between. The SMZ140 Series delivers high optical performance and features specially designed halogen illumination with adjustable intensity for both incident and transmitted light.
3014.03 kn net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Experience the convenience and flexibility of viewing a large area of your sample at 10X magnification, then smoothly zooming in to see close-up details at 40X or any magnification in between. The SMZ140 Series delivers high optical performance and features specially designed halogen illumination with adjustable intensity for both incident and transmitted light.
Model: SMZ-140-head
Optical System: Greenough
Observation Tube: Binocular head
Interpupillary Distance: 54-76 mm
Diopter Adjustment: On both tubes, +/- 5 diopter
Inclination: 45° inclined, 360° rotating
Eyepieces: WF10X/20 mm
Objectives System: Zoom, ratio 1:4
Objectives Magnification: 1X-4X
Working Distance: 80 mm
Specifications
Optics
Magnification: 40
Eyepiece: 10
Optical System: Greenough
Mechanics
Type of Build: Binocular
Focusing: Coarse movement
Viewing Posture: 45° angled eyepiece
Specimen Stage: Black/white
Working Distance: 80 mm
Special Features
Dust Cover Bag: Included
Wide-Angle Eyepiece: Yes
General
Colour: Grey/black
Series: SMZ-140
Field of Application: Medicine
