Motic Stereo Zoom Microscope SMZ-160-BLED, LED, 0.75x-4.5x (77799)

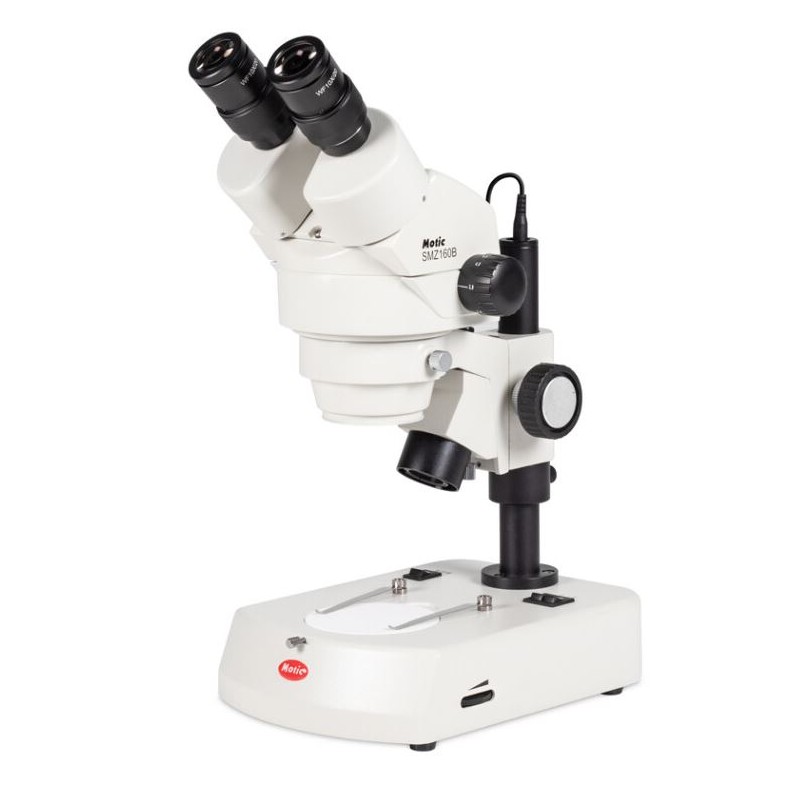

The Motic SMZ-160-BLED is a binocular stereo zoom microscope equipped with both incident and transmitted LED lighting, making it ideal for a variety of professional and educational applications. With a zoom range from 0.75x to 4.5x (total magnification of 7.5x to 45x using 10x eyepieces), this microscope allows users to easily switch between wide field observation and detailed inspection. Its ergonomic design, including a 45° angled and 360° rotatable viewing head, ensures comfortable use during extended sessions.
1833.75 BGN net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Motic SMZ-160-BLED is a binocular stereo zoom microscope equipped with both incident and transmitted LED lighting, making it ideal for a variety of professional and educational applications. With a zoom range from 0.75x to 4.5x (total magnification of 7.5x to 45x using 10x eyepieces), this microscope allows users to easily switch between wide field observation and detailed inspection. Its ergonomic design, including a 45° angled and 360° rotatable viewing head, ensures comfortable use during extended sessions. Suitable for fields such as industry, education, gemology, and materials technology, the SMZ-160-BLED offers flexibility and reliability for diverse laboratory and workshop environments.
Specifications
Optics
Magnification: 7.5x-45x
Eyepiece: 10x
Optical System: Greenough
Zoom Capability: Yes
Field of View: 20 mm
Incident Light: Yes
Transmitted Light: Yes
Mechanics
Type of Build: Binocular
Focusing: Coarse movement
Viewing Posture: 45° angled eyepiece, 360° rotatable
Specimen Stage: Included
Working Distance: 100 mm
Special Features
Dust Cover Bag: Included
Wide-Angle Eyepiece: Yes
General
Colour: Grey/black
Series: SMZ-160
Weight: 3000 g
Width: 170 mm
Length: 237 mm
Height: 398 mm
Field of Application
Industry: Yes
Education: Yes
Odontotechnics: Yes
Veterinary Medicine: Yes
University: Yes
Semiconductor Technology: Yes
Metallurgy: Yes
Materials Technology: Yes
Gemology: Yes
Automotive: Yes
Miscellaneous
Supplier Product Number: 1100201300171
