Motic stereo zoom head SMZ-160-TH, 0.75x-4.5x (77804)

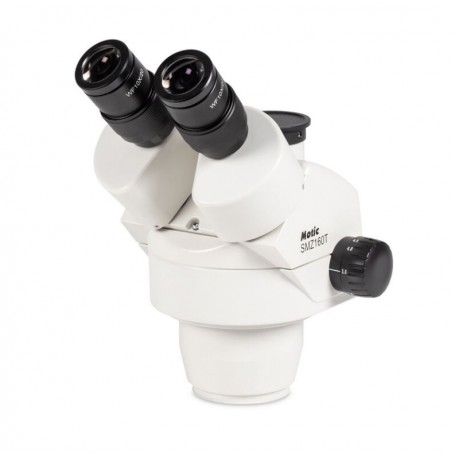

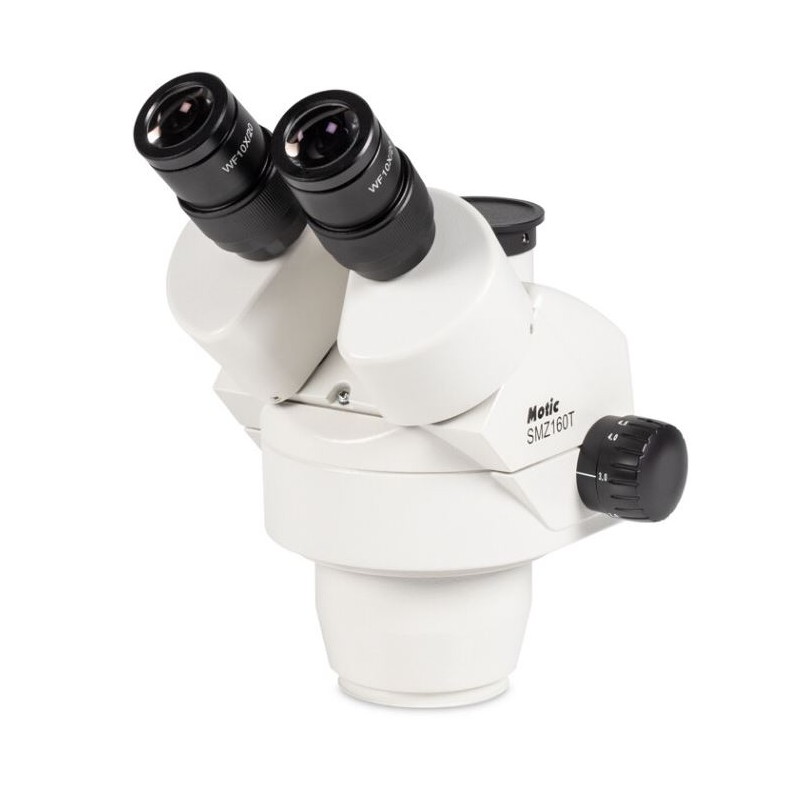

The Motic SMZ-160-TH is a trinocular stereo zoom microscope head designed for flexible use in industrial, educational, and research environments. This microscope head offers a zoom range from 0.75x to 4.5x, providing a total magnification of 7.5x to 45x when paired with 10x eyepieces. Its trinocular design allows for easy camera attachment, making it suitable for documentation and digital imaging.
3385.4 lei net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Motic SMZ-160-TH is a trinocular stereo zoom microscope head designed for flexible use in industrial, educational, and research environments. This microscope head offers a zoom range from 0.75x to 4.5x, providing a total magnification of 7.5x to 45x when paired with 10x eyepieces. Its trinocular design allows for easy camera attachment, making it suitable for documentation and digital imaging. The SMZ-160-TH is lightweight, ergonomically designed, and compatible with various stands and lighting options, making it a versatile choice for a wide range of applications.
Optics
Magnification: 7.5x-45x
Eyepiece: 10x
Optical System: Greenough
Zoom Capability: Yes
Field of View: 20 mm
Transmitted Light: No
Mechanics
Type of Build: Trinocular
Focusing: Coarse movement
Viewing Posture: 45° angled eyepiece, 360° rotatable
Working Distance: 100 mm
Special Features
Dust Cover Bag: Included
Wide-Angle Eyepiece: Yes
General
Colour: Grey/black
Series: SMZ-160
Weight: 1400 g
Field of Application
Industry: Yes
Education: Yes
Odontotechnics: Yes
Veterinary Medicine: Yes
University: Yes
Semiconductor Technology: Yes
Metallurgy: Yes
Materials Technology: Yes
Gemology: Yes
Automotive: Yes
Miscellaneous
Supplier Product Number: 1101010100921
Data sheet
