Motic Stereo zoom microscope SMZ171-BLED, bino, 7,5X-50X (46456)

The SMZ-171 Series from Motic is an advanced stereo zoom microscope designed to meet the needs of both routine and research applications in biological, medical, and industrial fields. This series features improved optics for superior image clarity, ESD-compatible materials for sensitive environments, and a wide range of modular accessories and illumination options. The Greenough optical system ensures sharp, three-dimensional images with a large zoom range and parfocality at all magnifications, making it easy to switch between overview and detail without refocusing. With a robust build, anti-fungus treated optics, and a variety of stands and configurations, the SMZ-171 is a versatile and reliable choice for demanding laboratory and quality control tasks.

General Specifications

• Greenough Optical System

• Achromatic optics with anti-fungus treatment

• Widefield binocular or trinocular 45º observation tube (light distribution 0:100 right eyetube/trinotube in photo position)

• Widefield high eyepoint eyepieces, WF 10X/23 with diopter adjustment on eyepieces +/- 5dpt

• Interpupillary distance: 48-75mm

• Zoom ratio: 6.7:1 with 5 clickstops

• Standard magnification: 7.5X-50X

• Working distance: 110mm

Zoom Range

The SMZ-171 offers a 6.7:1 zoom ratio, providing a standard magnification range of 7.5x to 50x with parfocality throughout the entire zoom range. Auxiliary objectives and eyepieces can extend the total magnification from 2.25X up to 200X, allowing for both macro and micro observations.

Auxiliary Objectives

A standard working distance of 110mm allows for easy manipulation of samples at various magnifications. The maximum field diameter at the lowest zoom setting with 10X eyepieces is 30.7mm.

Eyepieces

Standard widefield 10x/23mm eyepieces are designed for comfort, even for glasses wearers, and feature individual diopter adjustments of +/- 5 dpt. Alternative magnifications and reticules for measurement are also available.

3-D Imaging

The Greenough optical system provides completely separated optical paths, resulting in impressive, distortion-free 3D images. The system achieves a high resolving power of up to 460 lp/mm with a 2x auxiliary objective.

Working Distance

The standard working distance is 110mm and can be extended up to 301mm with additional auxiliary objectives. For higher total magnification, high-magnification eyepieces can be used in combination with objectives less than 1X.

Optical Heads

Available in binocular or trinocular versions with a 45° viewing angle, 10X eyepieces, and a built-in 1X objective. The interpupillary distance is adjustable from 48mm to 75mm. An anti-fungus treatment allows use in humid environments, and a 60° viewing angle head is available for special setups.

Modular Configuration

The SMZ-171 supports a modular component system, including classic pole stands, new arm stands, and industrial boom stands for large samples. ESD versions are available for electrostatic-sensitive environments.

Illumination

A variety of illumination options are available, including ring lights for shadow-free imaging and unidirectional illuminators for surface structure visualization. The microscope can be paired with cold light sources and light guides as needed.

Digital Documentation

The SMZ-171 can be combined with Moticam digital cameras to create a complete analysis and documentation workstation. The trinocular version supports various camera adapters for different chip sizes.

Accessories

• 360° rotatable gliding stage for smooth sample movement

• Attachable x/y-stage with 76x54mm travel range for precise movement

• Polarizer and analyzer for birefringence studies

• Darkfield insert with iris diaphragm for adjustable illumination aperture

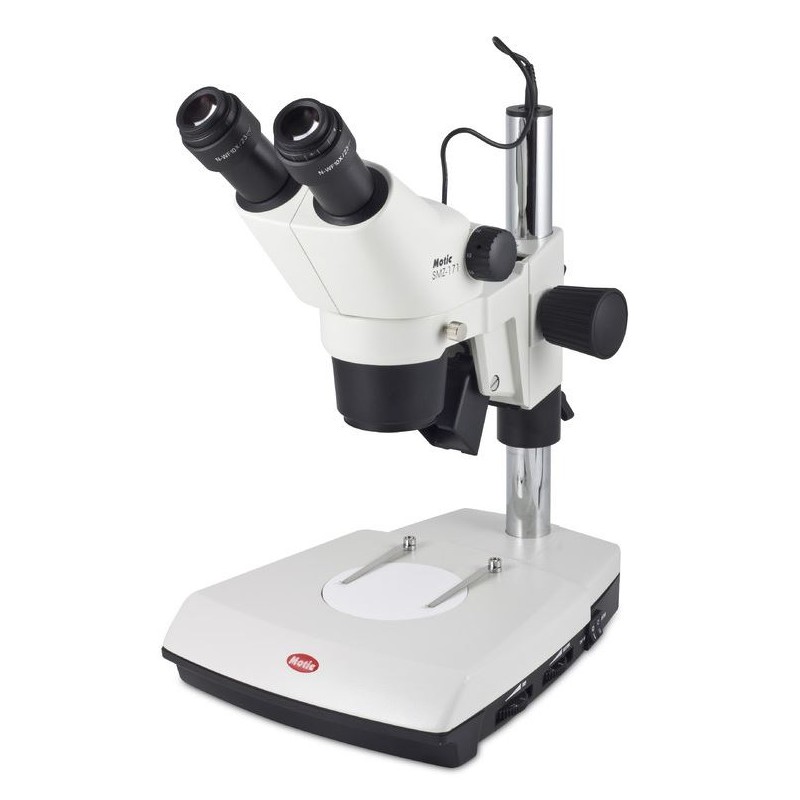

SMZ171-BLED Model Details

• Optical System: Greenough

• Observation Tube: Binocular head

• Interpupillary Distance: 48-75mm

• Inclination: 45° inclined

• Eyepieces: N-WF10X/23mm with diopter adjustment, +/- 5 diopter

• Objectives System: Zoom system, ratio 1:6.7

• Objectives Magnification: 0.75X to 5X

• Working Distance: 110mm

• Stand: Pole type with transmitted illumination and cold light input

• Base: 303x239mm

• Column/Arm: Ø32mm, 232mm height

• Head Holder: For Ø32mm column and Ø76mm head with incident illumination

• Focus Mechanism: Coarse focusing with tension adjustment

• Focusing Stroke: 49mm

• Incident Illumination: 3W LED with intensity control

• Transmitted Illumination: 3W LED with reflector and intensity control

• Transformer: Internal

• Power Supply: 100-240V (CE)

• Accessories Included: Black, white, and frosted stage plates; dust cover

• Dimensions: 303x239x405mm

• Weight: 6.2kg
