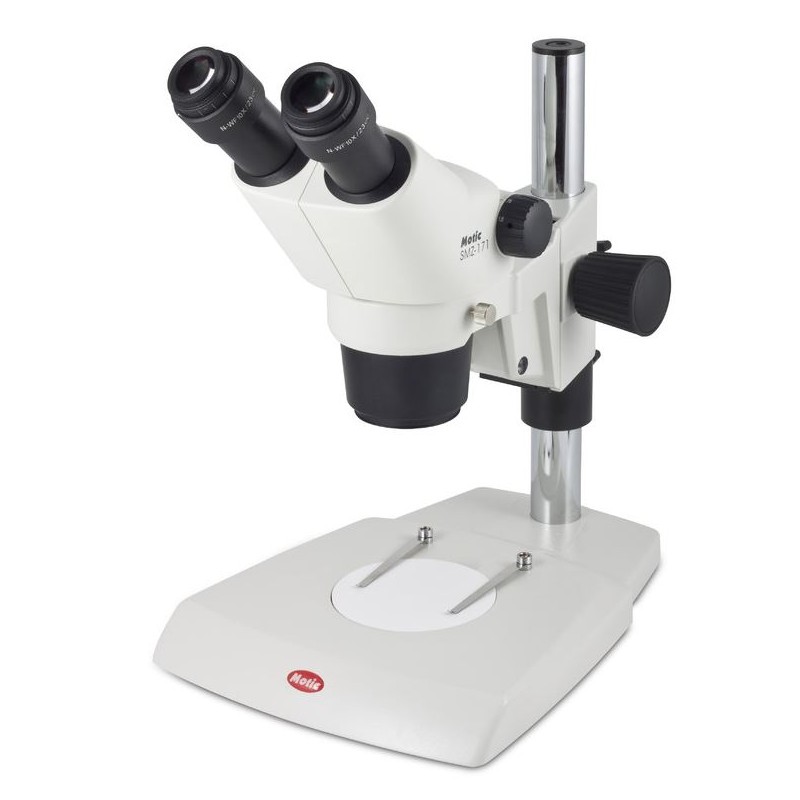

Motic Stereo zoom microscope SMZ171-BP binocular (46457)

The SMZ-171 Series is an advanced addition to Motic's stereo zoom microscope lineup, offering improved optical performance and enhanced versatility for a broad range of biological, medical, and material science applications. This series is designed to meet the needs of both routine and research environments, providing clear, distortion-free images for tasks ranging from biological sample preparation to industrial quality control. The Greenough optical system features a large zoom range and parfocality at all magnifications, allowing users to easily switch between overview and detailed observation without refocusing. The SMZ-171 is also ESD-compatible and supports a wide variety of accessories and illumination options, making it adaptable for many different laboratory setups.

General Specifications

• Greenough Optical System

• Achromatic optics with anti-fungus treatment

• Widefield binocular or trinocular observation tube, 45° inclined (light distribution 0:100 right eyetube/trinotube in photo position)

• Widefield high eyepoint eyepieces WF10X/23 with diopter adjustment, +/- 5 dpt

• Interpupillary distance: 48-75 mm

• Zoom ratio: 6.7:1 with 5 clickstops

• Standard magnification: 7.5X-50X

• Working distance: 110 mm

Zoom Range

The SMZ-171 provides a 6.7:1 zoom ratio, giving a standard magnification range from 7.5x to 50x. The parfocal optical system means you do not need to refocus while zooming. Auxiliary objectives and eyepieces are available to extend the total magnification range from 2.25X up to 200X.

Auxiliary Objectives

With a standard working distance of 110 mm, the microscope allows easy sample manipulation at all magnifications. At the lowest zoom setting with 10X eyepieces, the maximum field diameter is 30.7 mm.

Eyepieces

The standard widefield 10x/23 mm eyepieces are designed for comfort, even for users who wear glasses, and include individual diopter adjustments of +/- 5 dpt. Other magnification options and measurement reticules are also available.

3-D Imaging

The Greenough optical system provides completely separated optical paths, delivering high-quality, distortion-free 3D images. The system achieves a resolving power of up to 460 lp/mm when used with a 2x auxiliary objective.

Working Distance

The standard working distance is 110 mm, which can be extended up to 301 mm with auxiliary objectives. Higher total magnification can be achieved by combining objectives less than 1X with high-magnification eyepieces.

Optical Heads

Available in binocular or trinocular versions with a 45° viewing angle, 10X eyepieces, and a built-in 1X objective. The interpupillary distance is adjustable from 48 mm to 75 mm. For specialized setups, a 60° binocular head is also available. All optics are treated against fungus, making the microscope suitable for humid environments.

Modular Configuration

The SMZ-171 supports a modular system, allowing users to select from classic pole stands, arm stands, or industrial boom stands for larger samples. ESD versions are also available for use in electrostatic-sensitive environments.

Illumination

A wide range of illumination options can be combined with the SMZ-171, including ring lights for shadow-free imaging and cold light sources with light guides for surface structure visualization.

Digital Documentation

The SMZ-171 can be paired with Moticam digital cameras to create a complete documentation and analysis workstation. The trinocular version supports different camera adapters for various camera chip sizes.

Accessories

• 360° rotatable gliding stage for smooth sample movement

• Attachable x/y-stage with 76 x 54 mm travel range for precise movement

• Polarizer and analyzer for birefringence analysis

• Darkfield insert with iris diaphragm for adjustable illumination aperture

SMZ171-BP Model Specification

• Greenough zoom optical system

• Binocular head, 45º inclined, 360º rotating

• Widefield adjustable eyepieces WF10X/23mm

• 6.7:1 zoom ratio, working distance 110 mm

• Objective magnification range: 0.75X-5X

• Pole type plain stand and head holder

• Coarse focusing system with tension adjustment

• Black/white stage plate and dust cover included
