Motic Camera Kamera 1080 INT, f. BA-series, 8MP (56051)

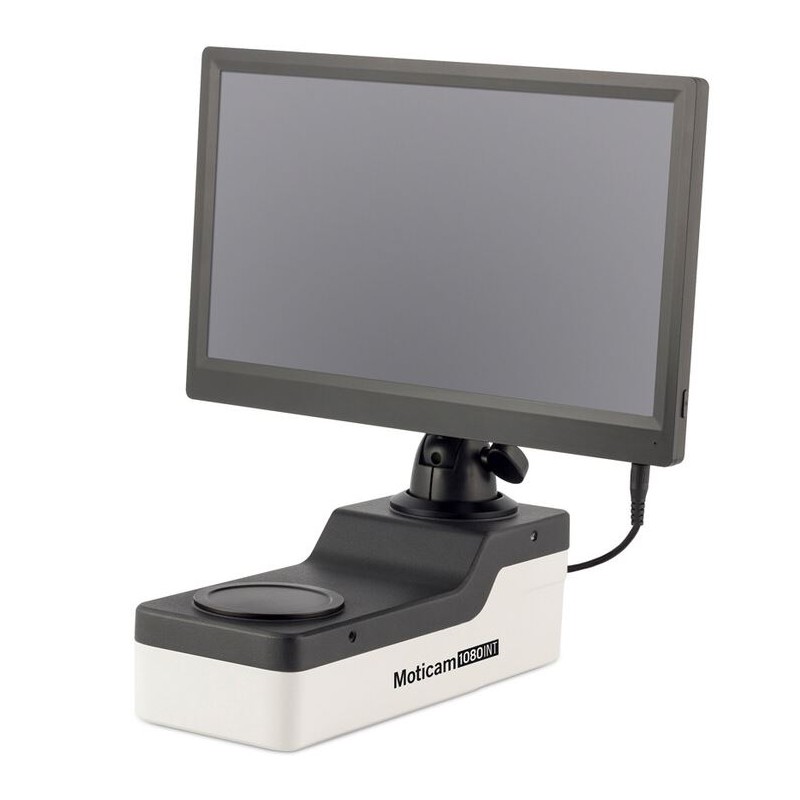

The Motic Camera 1080 INT is an intermediate-level digital camera designed specifically for the BA Series microscopes. This camera features an 8MP CMOS sensor and supports both still image and video capture, making it ideal for documentation and analysis in laboratory and research environments. With both HDMI and USB 2.0 outputs, it can display live images in Full HD on an attached 11.6" LCD screen or on a computer, and it offers onboard software for direct control without the need for a computer.
91319.49 ₴ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Motic Camera 1080 INT is an intermediate-level digital camera designed specifically for the BA Series microscopes. This camera features an 8MP CMOS sensor and supports both still image and video capture, making it ideal for documentation and analysis in laboratory and research environments. With both HDMI and USB 2.0 outputs, it can display live images in Full HD on an attached 11.6" LCD screen or on a computer, and it offers onboard software for direct control without the need for a computer. The camera is compatible with Windows, Mac OSX, and Linux systems, and includes a range of image adjustment and measurement functions for comprehensive microscopy work.
Sensor type: CMOS
Sensor size: 1/2.8"
Imaging area: 5.346 x 3.003 mm
Capture resolution: 8MP (3840 x 2160 pixels)
Image capture resolution (on SD card): 8MP (3840 x 2160 pixels)
Video capture resolution (on SD card): 1920 x 1080p (Full HD)
Live display mode through USB: 1920 x 1080 pixels (Full HD) at 30 fps
Live display mode through HDMI: 1920 x 1080 pixels (Full HD) at 60 fps
Pixel size: 2.8 x 2.8 μm
Scan mode: Progressive
Data transfer: HDMI (1080p), USB 2.0
Maximum frames per second: USB: 30 fps (Full HD), HDMI: 60 fps (Full HD)
Exposure time: 0.06 ms to 40 ms (Auto), 0.06 ms to 999 ms (Manual)
Operating temperature: -10 to +60°C, non-condensing
Maximum signal to noise ratio: 40 dB
Dynamic range: 71 dB
Sensitivity: 0.51 V (typical at 1/30 sec)
Storage slot: SD Card (max 32 GB)
Buttons: On/Off
Supported device drivers: TWAIN and Direct Show
Supported operating systems: Windows XP SP3/Vista/7/8/10, Mac OSX, Linux
Minimum computer requirements: 2 GHz dual-core processor, 2 GB RAM, 512 MB video memory
Screen: 11.6" Full HD (1920 x 1080 pixels) with bracket
Software: Onboard software included, Motic Images Plus 3.0 for PC/OSX/Linux
Software functions: Still image capture, live image recording, zoom, magnifier, region of interest (ROI), mirror, rotation, split, freeze, cross line, gallery, auto/manual exposure, gain, brightness, light frequency, auto/manual white balance, saturation, contrast, gamma, sharpness, denoise, user settings, system time, language (English, Chinese, Japanese), SD card formatting
Power supply: 12V external
Package includes: USB 2.0 cable, HDMI cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 software, universal power supply
Data sheet
