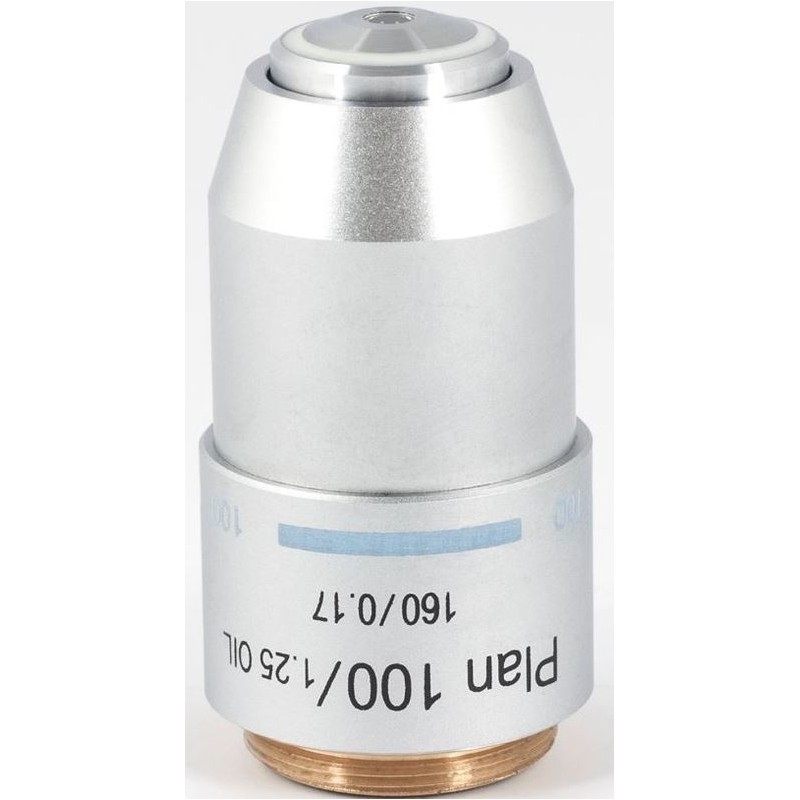

Motic Objective PL, plan, achro, 100x/1.25, S , Oil, w.d. 0.15 mm (RedLine200) (57071)

The Motic PL 100x/1.25 objective is a plan, achromatic oil immersion lens designed for high-resolution microscopy in laboratory and educational environments. This objective provides a flat field of view and excellent color correction, ensuring sharp and accurate images even at the highest magnifications. With a magnification of 100x, a numerical aperture of 1.25, and a working distance of 0.15 mm, it is ideal for observing fine cellular details and advanced specimen analysis. The lens features a suspension mechanism for added safety and is compatible with the RedLine 200 series, following the DIN (160mm) standard optical system.

Field curvature: Plan
Color correction: Achromatic
Immersion lens: Yes (oil immersion)
Infinity corrected: No
Suspension: Yes
Optical system: DIN (160mm)
Numerical aperture: 1.25
Image scale: 20
Magnification: 100x
Working distance: 0.15 mm
Specimen protection spring: Not included
Compatible with: RedLine 200 series
Supplier product number: 12220188
