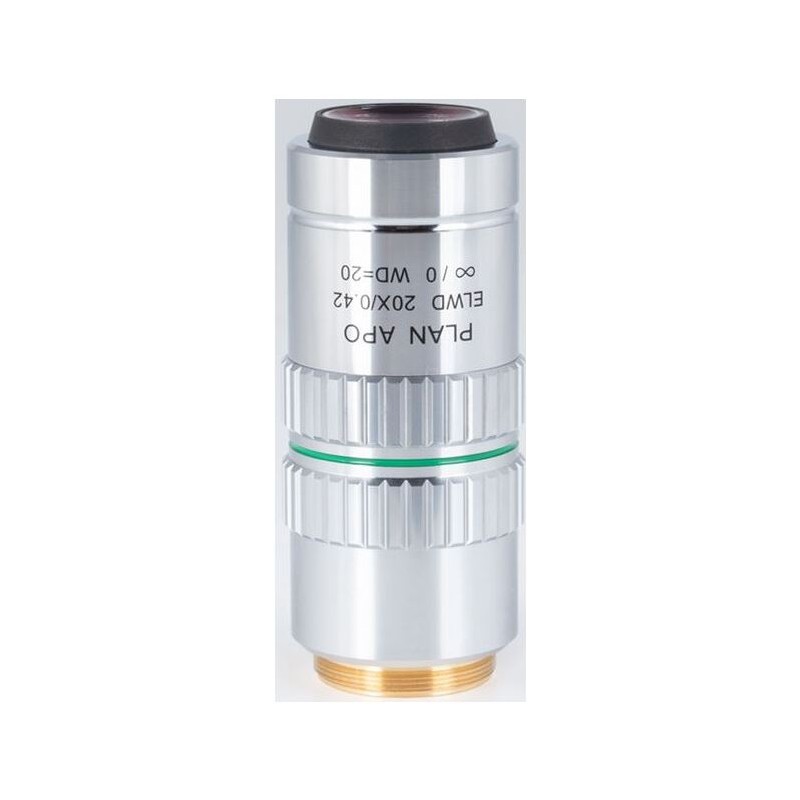

Motic Plan apochromat. objective ELWD 20X/0.420 (wd:20mm) (67687)

The Motic Plan Apochromat ELWD 20x/0.420 objective is designed for applications that require both high image quality and an extra-long working distance. This objective provides excellent color correction and a flat field of view, making it ideal for advanced research, industrial inspection, and laboratory work. With a magnification of 20x, a numerical aperture of 0.420, and a remarkable working distance of 20 mm, it is especially useful for observing large or thick specimens without the need for a cover glass.

89305.59 ₴
Tax included

72606.17 ₴ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Motic Plan Apochromat ELWD 20x/0.420 objective is designed for applications that require both high image quality and an extra-long working distance. This objective provides excellent color correction and a flat field of view, making it ideal for advanced research, industrial inspection, and laboratory work. With a magnification of 20x, a numerical aperture of 0.420, and a remarkable working distance of 20 mm, it is especially useful for observing large or thick specimens without the need for a cover glass. The lens is infinity-corrected and does not require immersion oil.



Field curvature: Plan
Color correction: Apochromatic
Immersion lens: No
Infinity corrected: Yes
Suspension: No
Cover glass correction: No cover glass required
Numerical aperture: 0.420
Image scale: 20
Magnification: 20x
Working distance: 20 mm
Supplier product number: 1101001700042

Data sheet

R59LJTGT63
