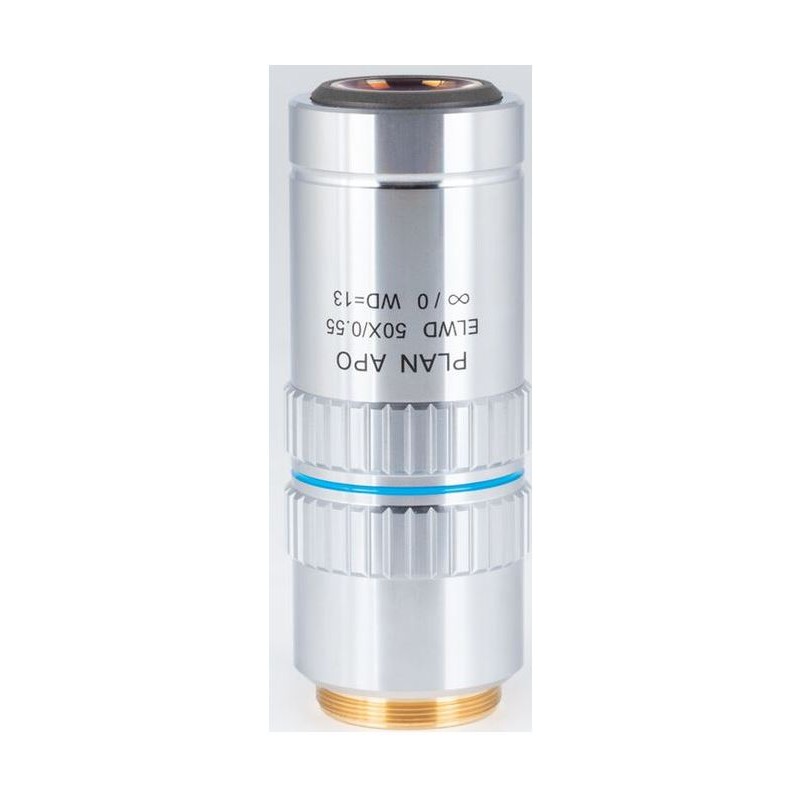

Motic Plan apochromat. objective ELWD 50X/0.550 (wd:13mm) (67685)

The Motic Plan Apochromatic ELWD 50x/0.550 objective is engineered for high-resolution imaging where both magnification and a long working distance are required. This objective provides outstanding color correction and a flat field of view, making it ideal for advanced research, industrial inspection, and laboratory analysis. With a magnification of 50x, a numerical aperture of 0.550, and a working distance of 13 mm, it is suitable for examining large or thick specimens without the need for a cover glass.

2964.05 $
Tax included

2409.8 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Motic Plan Apochromatic ELWD 50x/0.550 objective is engineered for high-resolution imaging where both magnification and a long working distance are required. This objective provides outstanding color correction and a flat field of view, making it ideal for advanced research, industrial inspection, and laboratory analysis. With a magnification of 50x, a numerical aperture of 0.550, and a working distance of 13 mm, it is suitable for examining large or thick specimens without the need for a cover glass. The lens is infinity-corrected and does not require immersion oil.



Field curvature: Plan
Color correction: Apochromatic
Immersion lens: No
Infinity corrected: Yes
Suspension: No
Cover glass correction: No cover glass required
Numerical aperture: 0.550
Image scale: 50
Magnification: 50x
Working distance: 13 mm
Supplier product number: 1101001700062
