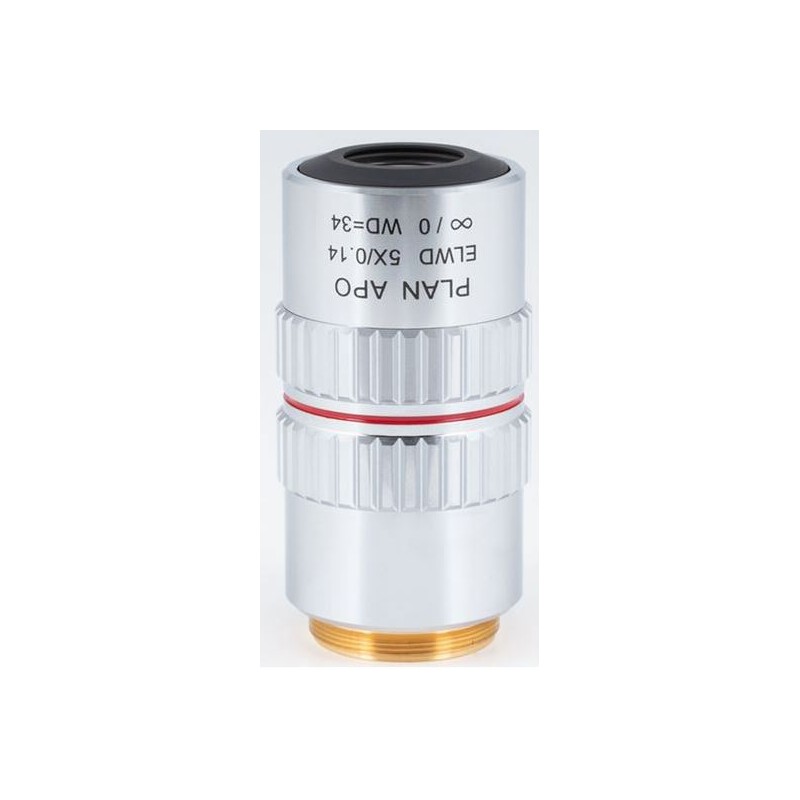

Motic Plan apochromat. objective ELWD 5X/0.140 (wd 34mm) (67684)
The Motic Plan Apochromatic ELWD 5x/0.140 objective is designed for applications that require low magnification and an extra-long working distance. This objective delivers excellent color correction and a flat field of view, making it suitable for examining large, thick, or three-dimensional specimens in research, industrial, or educational environments. With a magnification of 5x, a numerical aperture of 0.140, and a working distance of 34 mm, it allows for easy observation and manipulation of samples without the need for a cover glass.
4656.44 kn net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Motic Plan Apochromatic ELWD 5x/0.140 objective is designed for applications that require low magnification and an extra-long working distance. This objective delivers excellent color correction and a flat field of view, making it suitable for examining large, thick, or three-dimensional specimens in research, industrial, or educational environments. With a magnification of 5x, a numerical aperture of 0.140, and a working distance of 34 mm, it allows for easy observation and manipulation of samples without the need for a cover glass. The lens is infinity-corrected and does not require immersion oil.
Field curvature: Plan
Color correction: Apochromatic
Immersion lens: No
Infinity corrected: Yes
Suspension: No
Cover glass correction: No cover glass required
Numerical aperture: 0.140
Image scale: 5
Magnification: 5x
Working distance: 34 mm
Supplier product number: 1101001700072
Data sheet
