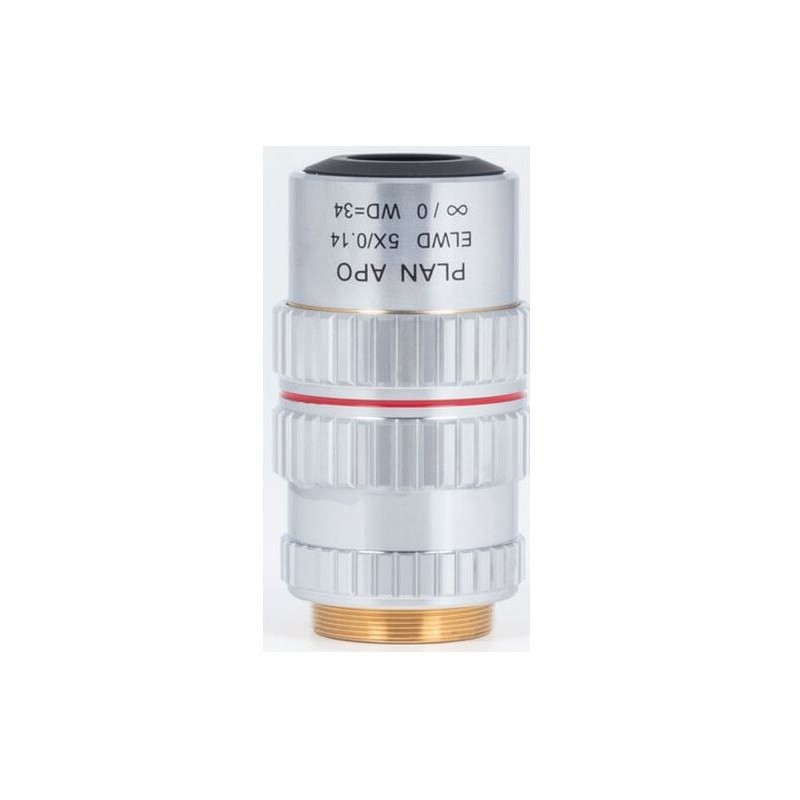

Motic Plan apochromatic. objective PA ELWD 5X/0.140 (wd 34mm) Pafocality adjustment (67680)
The Motic Plan Apochromatic PA ELWD 5x/0.140 objective is designed for applications that require low magnification and an exceptionally long working distance. This objective provides outstanding color correction and a flat field of view, making it ideal for observing large, thick, or three-dimensional specimens in research, industrial, or educational settings. With a magnification of 5x, a numerical aperture of 0.140, and a working distance of 34 mm, it allows for easy sample manipulation without the need for a cover glass.
62290.93 ₽ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Motic Plan Apochromatic PA ELWD 5x/0.140 objective is designed for applications that require low magnification and an exceptionally long working distance. This objective provides outstanding color correction and a flat field of view, making it ideal for observing large, thick, or three-dimensional specimens in research, industrial, or educational settings. With a magnification of 5x, a numerical aperture of 0.140, and a working distance of 34 mm, it allows for easy sample manipulation without the need for a cover glass. The lens is infinity-corrected, does not require immersion oil, and includes parfocality adjustment for smooth focus transitions between objectives.
Image scale: 5
Magnification: 5x
Field curvature: Plan
Color correction: Apochromatic
Immersion lens: No
Infinity corrected: Yes
Suspension: No
Cover glass correction: No cover glass required
Optical system: Infinity
Numerical aperture: 0.140
Working distance: 34 mm
Supplier product number: 1101001700181
Data sheet
