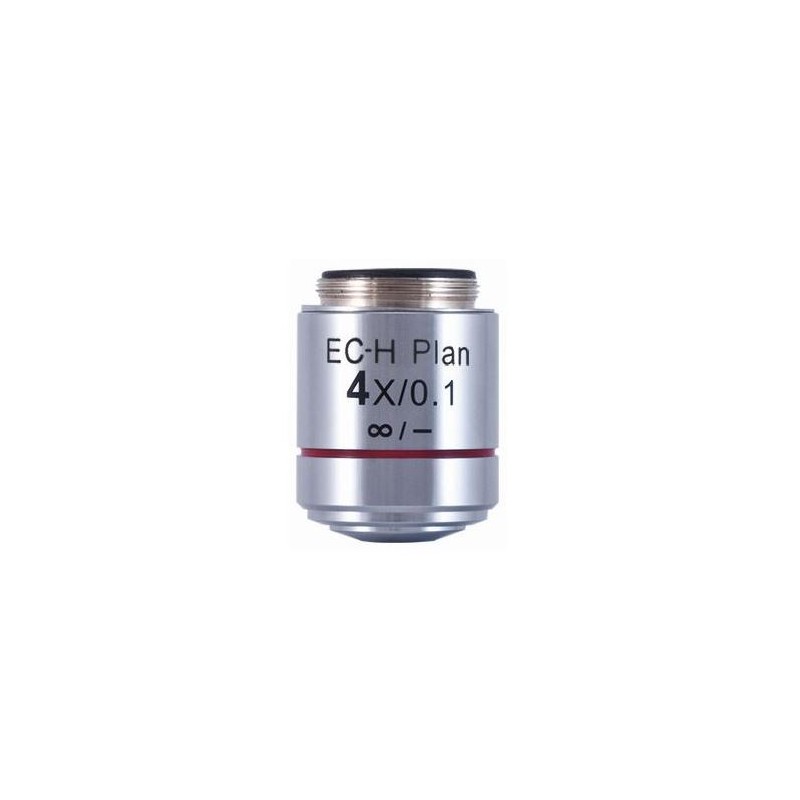

Motic Objective EC-H PL, CCIS, plan, achro, 4x/0.1, w.d. 15.9mm (BA-410 Elite) (57137)
The Motic EC-H PL 4x/0.1 objective is a plan, achromatic lens designed for routine and advanced microscopy in laboratory and research settings. This objective provides a flat field of view and accurate color correction, ensuring clear and sharp images across the entire specimen area. With a magnification of 4x, a numerical aperture of 0.10, and a long working distance of 15.9 mm, it is ideal for scanning large specimen areas and for applications that require extra space between the lens and the sample.
793.65 kn net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The Motic EC-H PL 4x/0.1 objective is a plan, achromatic lens designed for routine and advanced microscopy in laboratory and research settings. This objective provides a flat field of view and accurate color correction, ensuring clear and sharp images across the entire specimen area. With a magnification of 4x, a numerical aperture of 0.10, and a long working distance of 15.9 mm, it is ideal for scanning large specimen areas and for applications that require extra space between the lens and the sample. The lens is infinity-corrected and is compatible with the Motic BA-410 Elite series.
Field curvature: Plan
Color correction: Achromatic
Immersion lens: No
Infinity corrected: Yes
Suspension: No
Optical system: Infinity
Numerical aperture: 0.10
Image scale: 20
Magnification: 4x
Working distance: 15.9 mm
Specimen protection spring: Not included
Compatible with: BA-410 Elite series
Supplier product number: 1101001702871
