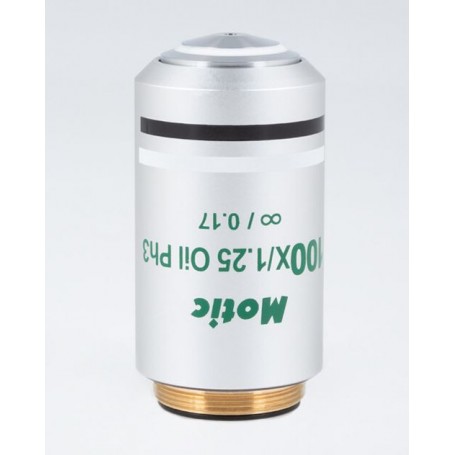

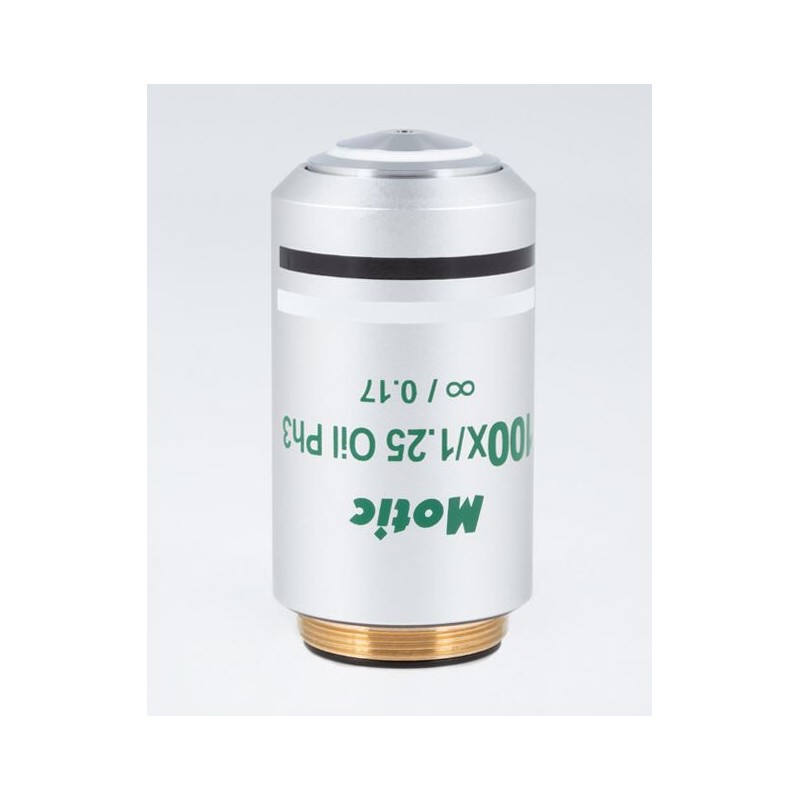

Motic objective CCIS, UC PL Ph, 100X / 1.25, wd 0.16 mm, infinity, PL, Ph, oil, S (73958)

The Motic objective CCIS, UC PL Ph, 100X / 1.25, wd 0.16 mm, infinity, PL, Ph, oil, S is a high-magnification oil immersion objective designed for advanced phase contrast microscopy. It is ideal for observing fine details in transparent or unstained specimens, making it suitable for laboratory and research applications. With a plan achromatic design, this objective ensures flat, color-accurate images across the entire field of view and is optimized for use with 0.17 mm thick cover glasses. It features a specimen protection spring, a working distance of 0.16 mm, and a total length of 45 mm.

Optics:

• Image scale: 100

• Cover glass correction: Yes

• Color correction: Achromatic

• Immersion lens: Yes

• Lens type: Plan, achromatic

Capacity:

• Designed for cover glasses of thickness: 0.17 mm

• Numerical aperture: 1.25

• Phase contrast: Yes

Mechanics:

• Working distance: 0.16 mm

• Specimen protection spring: Yes

Special Features:

• Immersion lens: Yes

General:

• Length: 45 mm

Miscellaneous:

• Supplier product number: 1101001706511
