Nikon Zoom Stereomicroscope SMZ1270i, trino, ERGO, Plan AP 0.75x, 0.63x-8x, FN22, W.D.107mm, C-US2-Stand (65752)

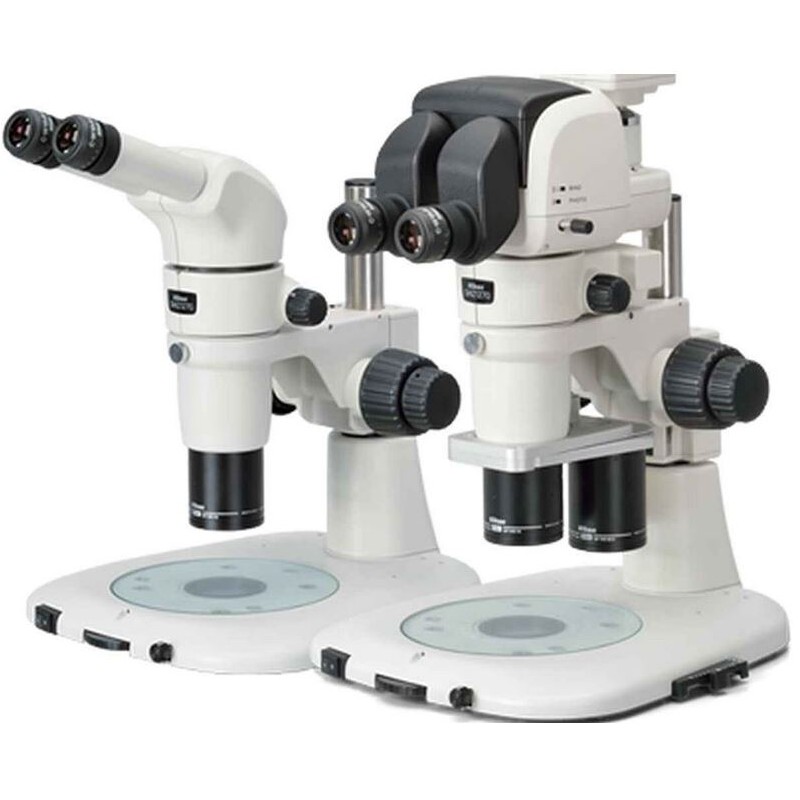

The SMZ1270/1270i stereo microscope is engineered for outstanding sharpness and clarity across a broad magnification range. With a class-leading zoom ratio of 12.7x (0.63x to 8x), it enables both wide-field, low-magnification observation-such as viewing an entire 35 mm petri dish-and high-magnification examination of fine details like cell structures. Advanced apochromat optics provide high-level chromatic aberration correction, delivering crisp, color-accurate images without blur or color fringing. The SMZ1270i model features intelligent functions that automatically detect magnification and objective data, ensuring precise calibration and measurement for imaging and documentation.

Key Features

• Highest-in-class zoom ratio of 12.7x (0.63x to 8x), supporting both overview and detailed observation

• Wide field of view at low magnification for easy confirmation of observation targets

• Apochromat optics for superior chromatic aberration correction, resulting in sharp and clear images

• Newly developed WF series objectives deliver bright, uniform images even at low magnification; a 0.75x objective expands low-magnification options

• Intelligent status readout in the SMZ1270i, compatible with DS-L4 Camera Control Unit and NIS-Elements software, automatically detects and calibrates magnification and objective data

• Double nosepiece enables on-axis imaging, accurate measurement, and extended depth-of-focus (EDF) imaging without distortion

• Ergonomic design with adjustable eyepiece tubes for personalized comfort and slim stands for easy specimen handling

• Expandable with a wide range of accessories, including trinocular tubes and slim-type LED diascopic illumination stands, to suit various research and inspection needs

• OCC illumination enhances contrast for transparent sample structures

Specifications

Magnification: Up to 80x
Lens type: Zoom lens
Eyepiece: 10x
Optical system: CMO (Common Main Objective)
Optical zoom: 0.63x to 8x
Field of view value: 22 mm
Type of build: Trinocular
Viewing posture: 0°–30°
Focusing: Coarse and fine movement
Specimen stage: Stage plate
Working distance: 107 mm
Suitable for: Ages 18 and up
Weight: 11,900 g
Series: SMZ1270

Field of Application

Industry: Yes
Medicine: Yes
Education: Yes
University: Yes
Semiconductor technology: Yes
Metallurgy: Not specified

This microscope is a versatile and powerful tool, ideal for a wide range of scientific, industrial, and educational applications, offering advanced optical performance and user-friendly features.
