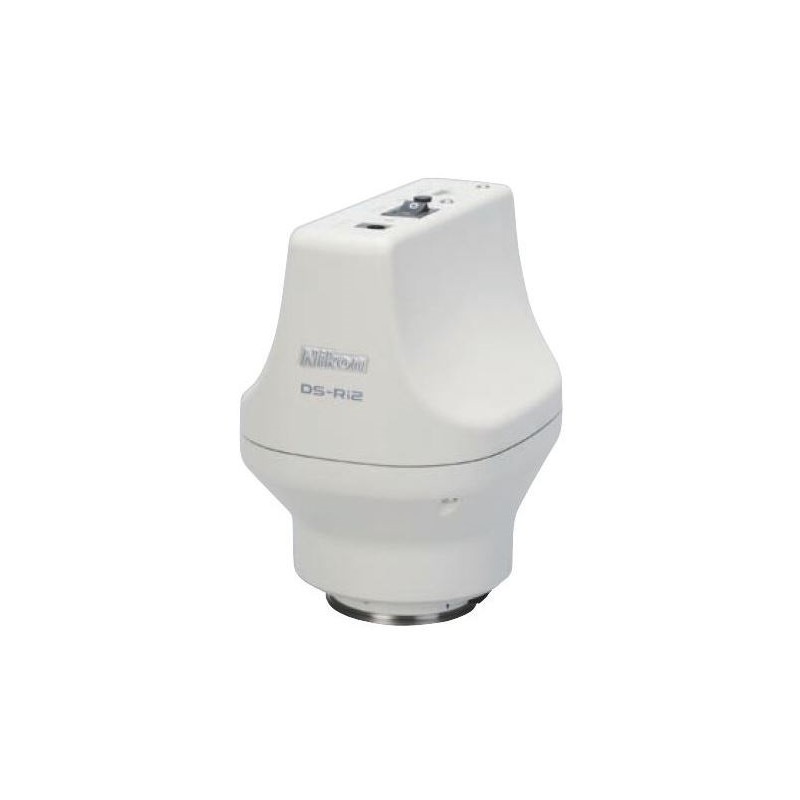

Nikon Camera DS-Ri2, Color, 16.25MP, USB3.0, CMOS, F-mount (65552)

The Nikon DS-Ri2 is a high-performance color microscope camera designed for capturing ultra-high resolution images with exceptional speed and color accuracy. With its 16.25-megapixel full-frame CMOS sensor, the DS-Ri2 delivers detailed and true-to-life images in a single shot, making it ideal for documenting fine structures in biological and industrial samples. The camera’s advanced image processing and high-speed live display capabilities support efficient workflows and precise focusing, while Nikon’s renowned color algorithms ensure that captured images closely match what is seen through the microscope.

Key Features

Ultra-High Resolution Imaging
The DS-Ri2 is equipped with a 16.25-megapixel full-frame CMOS sensor (36 x 23.9 mm), allowing for the capture of images at a resolution of 4908 x 3264 pixels. This high pixel density is perfect for detailed photomicrography at both low and high magnifications, without the need for pixel shifting or stepping.

Accurate Color Reproduction
Nikon’s proprietary image processing engine and advanced color algorithms enable the DS-Ri2 to reproduce colors as seen by the human eye, ensuring natural and lifelike images for accurate analysis and documentation.

High-Speed Live Display
The camera supports real-time live image display at 6 frames per second at full resolution (4908 x 3264 pixels) and up to 45 frames per second at 1636 x 1088 pixels (using 3 x 3 pixel averaging). This high-speed performance makes focusing and sample navigation smooth and efficient.

High Sensitivity and Low Noise
With sensitivity settings from ISO 200 to ISO 12800, the DS-Ri2 is capable of capturing vivid fluorescent images with a high signal-to-noise ratio, making it suitable for both brightfield and fluorescence applications.

Direct PC Connectivity
The DS-Ri2 connects directly to a PC via USB 3.0, allowing for fast image transfer and camera control using Nikon’s NIS-Elements imaging software.

Specifications

• Sensor type: CMOS, full frame (36 x 23.9 mm)

• Effective megapixels: 16.25 MP

• Maximum image resolution: 4908 x 3264 pixels

• Video resolution: 1636 x 1088 pixels

• Pixel size: 7.3 x 7.3 μm

• Frame rate: 6 fps (full resolution), 45 fps (1636 x 1088 pixels)

• Shutter type: Rolling shutter

• Minimum exposure time: 0.1 ms

• Maximum exposure time: 120,000 ms (120 seconds)

• ISO sensitivity: 200–12800

• Color camera: Yes

• Peltier cooling: No

• Image transmission: USB 3.0

• Power supply: USB 3.0

• Recommended adapter: 4x

• Compatible software: NIS-Elements

• Supported operating systems: Windows 7, 8, 10

Physical Characteristics

• Color: White

• Weight: 1200 grams

• Dimensions: 105 mm (length) x 134 mm (width) x 153 mm (height)

• Series: DS

• Supplier product number: MQA17000

The Nikon DS-Ri2 is an excellent solution for users who require fast, high-resolution, and color-accurate imaging in microscopy, supporting a wide range of scientific and industrial applications.
