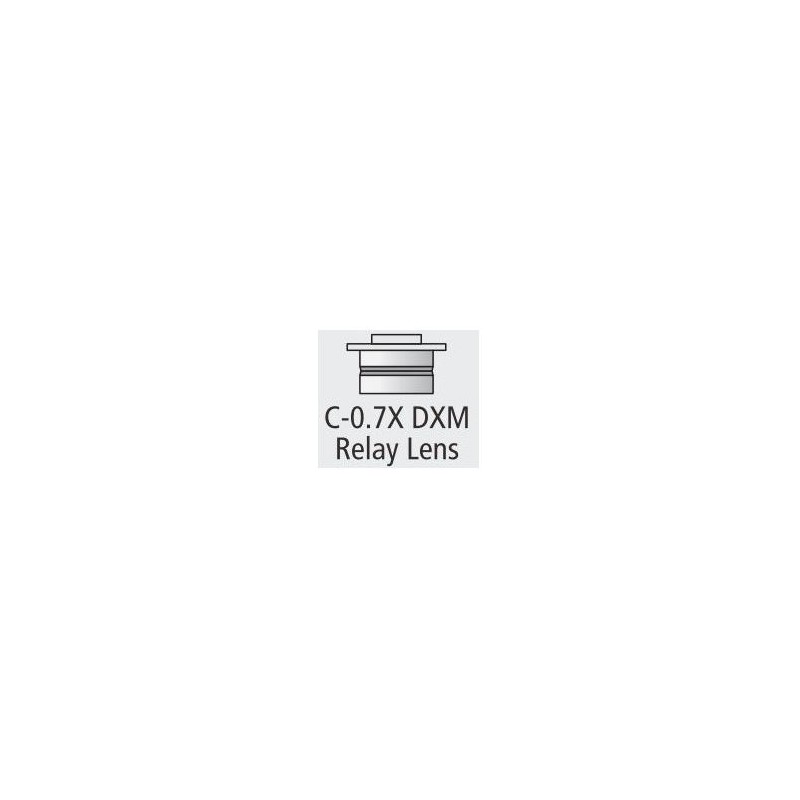

Nikon Camera adaptor C-Mount TV Adapter 0,7 x (65519)

The Nikon C-Mount TV Adapter 0.7x is a camera adapter designed to connect digital cameras with a C-mount interface to Nikon microscopes. This adapter includes a 0.7x reduction lens, which helps to match the microscope’s field of view with the camera’s sensor size, making it especially useful for cameras with 2/3", 1/1.8", or 1/2" sensors. It is widely used in laboratory, research, and industrial settings for high-quality digital imaging and documentation. The adapter is compatible with a range of Nikon microscopes, including models from the E100, E200, 50i, 55i, 80i, 90i, Ni, Ti, SMZ800, SMZ1000, and SMZ15000 series.

Function:
Connects a C-mount digital camera to the phototube of a Nikon microscope for direct image capture.

Magnification:
0.7x (reduction lens)

Sensor Compatibility:
Optimized for cameras with 2/3", 1/1.8", or 1/2" CCD or CMOS sensors

Compatibility:
Suitable for Nikon E100, E200, 50i, 55i, 80i, 90i, Ni series, Ti series, SMZ800, SMZ1000, SMZ15000, and other compatible Nikon microscopes

Construction:
Stainless steel C-mount end and spray-painted aluminum phototube end

Main Features:

• Provides a wider field of view by reducing the image size to fit the camera sensor

• Maintains parfocality with the microscope objectives

• Low light loss for clear imaging

• Durable construction for long-term use

• Easy installation on Nikon trinocular tubes with a standard 38 mm outer diameter

This adapter is an ideal accessory for users who need to capture high-quality digital images from a Nikon microscope using a C-mount camera, ensuring optimal field of view and image clarity.
