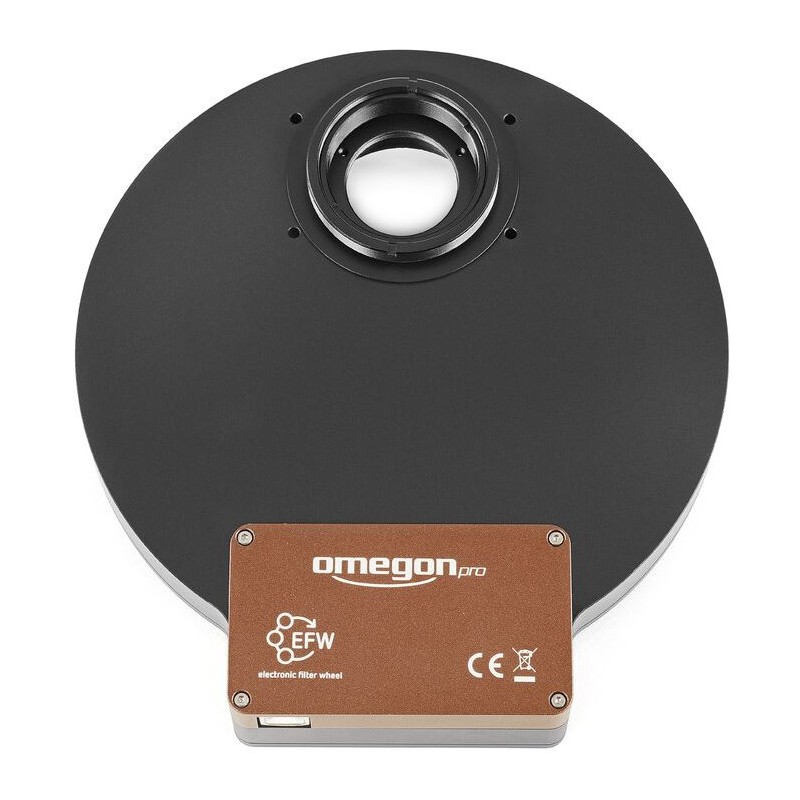

Omegon Electronic filter wheel EFW 5x2'' (83442)

Enhance your astrophotography setup with the Omegon Pro Electronic Filter Wheel (EFW). Designed for both amateur and experienced astronomers, this motorized filter wheel simplifies your workflow and makes switching filters quick and precise.

Key Features:

• Advanced Mechanical Location System: Ensures precise and reliable filter positioning every time you change filters, thanks to a new mechanical indexing system.

• Compact Design: Supports filters with a maximum frame height of 7mm (excluding the filter thread), making it compatible with most filters on the market.

• Seamless Integration: Features M54 female threads on both the front and back, allowing easy connection to telescopes with large focusers. Included adapters provide compatibility with M48 and T2 connections.

• Direct Camera Attachment: Screw holes allow direct connection to newer OmegonPro veTEC and ATR3 cameras, helping you keep the optical back focus as short as possible. Check the mechanical drawing to ensure compatibility with your camera body.

• Short Optical Path: The optical length is just 20mm, keeping your imaging train compact and maintaining optical performance.

• Durable Construction: Made from high-quality aluminum for strength and longevity, even in demanding conditions.

• USB 2.0 Connectivity: Both power and data are supplied via a single USB 2.0 cable, reducing cable clutter and simplifying your setup.

• Software Compatibility: Supports ASCOM drivers for integration with most astronomical software, and is also compatible with INDI control systems.

Versatile Filter Disk Options:

Three interchangeable filter disks are available to suit your needs. One filter disk is pre-installed, and additional carousels can be ordered and swapped easily with the included screwdriver. Options include:

• 8 positions for 1.25" filters

• 5 positions for 2" filters

• 7 positions for 36mm filters

Upgrade your telescope’s filtering capabilities with the Omegon Pro Electronic Filter Wheel. Whether you’re capturing detailed astrophotography or enjoying visual observations, this filter wheel is a valuable addition to your equipment.

Specifications

• Camera connection: T2, M48, M54

• Telescope connection: T2, M48, M54

• Optical length: 20 mm

• Power supply: USB 2.0

• Motor type: Stepper motor

• Filter slot size: 2"

• Maximum number of filter slots: 5

• Maximum filter thickness: 5.5 mm

• Motor-powered: Yes

• Series: Pro

• Weight: 580 g

• Outer material: Aluminum

• Height: 176 mm

• Length: 34 mm

• Width: 160 mm

• Type: Filter wheel

• Category: Filters
