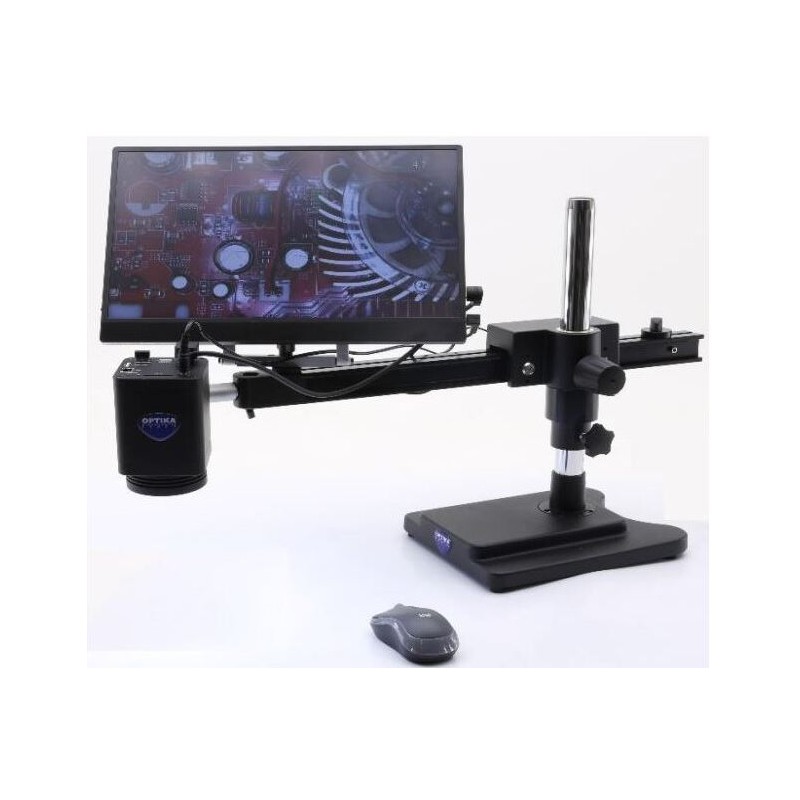

Optika Microscope IS-4K2, zoom opt. 1x-18x, autofocus, 8 MP, 4K Ultra HD, overhanging stand, 15.6" screen (83169)

Advanced inspection system designed for intensive use, ideal for video inspection in quality control for electronics, mechanics, and other industrial applications.

The IS-4K2 system features a real-time full HD auto-focus camera with optical zoom capabilities ranging from 1x to 18x. It delivers a crystal clear 4K live view on a large 15.6-inch HD monitor, providing a fast 30 fps connection. The angle of view is fully adjustable, and instant focus is achieved in less than one second without the need to constantly adjust the lens position. The system offers an extended working distance that can reach infinity, making it especially suitable for inspecting multi-layered objects.

All system functions are controlled directly from the screen using a wireless mouse. Images and videos can be saved to an SD card and easily transferred to any device. The inspection system is supported by the SZ-STLX boom stand, which includes a special joint for full rotation, both transversally and longitudinally. The longitudinal movement is achieved by sliding the horizontal rail, which can be locked in place, and the overall height is also adjustable and lockable.

Specifications

• Lighting: Incident light

• Power supply: Power plug

• Optical zoom: 1x–18x

• LCD screen: 15.6 inches

• Camera sensor size: 1/2.8 inch

• Digital build type

• Working distance: 160–255 mm

• Focusing: Autofocus

• Built-in digital camera: Yes

• Colour camera: Yes

• Photo resolution: 3840 x 2160 pixels

• Megapixels: 8

• Pixel size: 1.45 μm

• Sensor type: CMOS

• Shutter: Rolling shutter

• Sensitivity: 300 mV/s

• Minimum exposure time: 0.04 ms

• Maximum exposure time: 1000 ms

• Image format: 16:9

• Frame rate: 30 fps

• Extendable storage: Yes (SD card)

• Series: IS

• Colour: Black

• Dimensions: Height 645 mm, Length 550 mm, Width 740 mm

• Weight: 20,000 g

• Contrast method: Brightfield

• Suitable for: Industry, hobby, mineralogy, semiconductor technology, metallurgy, dental technology, automotive

• Supplier product number: IS-4K2

This system is an excellent solution for professional environments that require reliable, high-quality video inspection with flexible viewing and easy image management.
