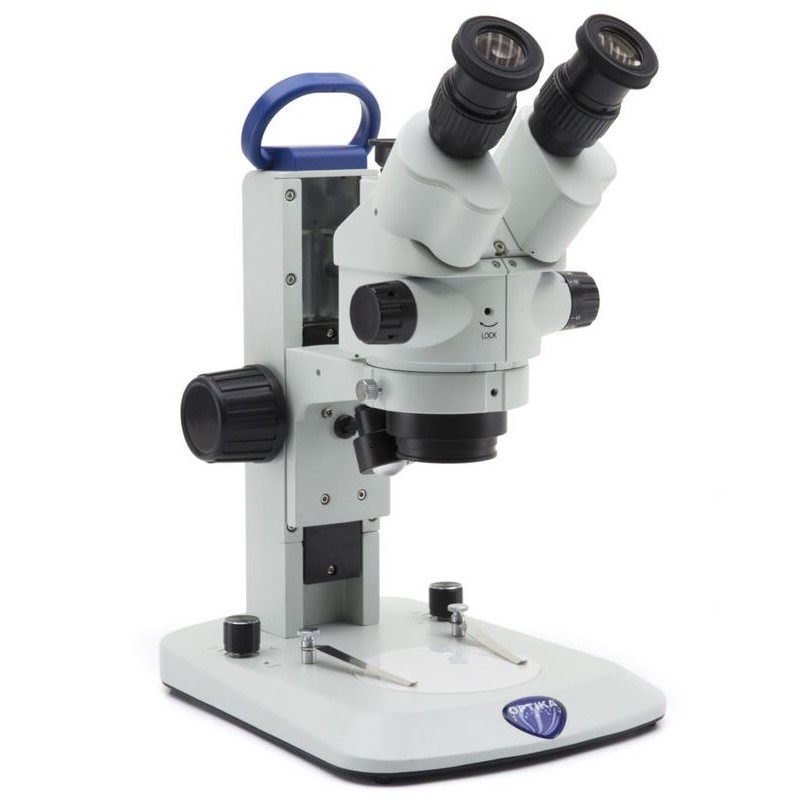

Optika zoom stereo microscope SLX-3, 7-45x zoom, LED, w.d.100mm, trino (63316)

The SLX-3 is a versatile, cordless, and modern stereo zoom microscope designed for a wide range of applications such as dissection, biology, entomology, anatomy, chemistry, material science, and industrial uses.

Head:

• Trinocular design with a fixed split ratio of 50% eyepiece / 50% photo

• 45° inclined and 360° rotatable for flexible viewing

• Made from aluminum and plastic molds with aluminum gears

• Interpupillary distance adjustable from 51 to 75 mm

• Dioptric adjustment on both tubes

• Head holder internal diameter: 76 mm

• Tube inner diameter: 30 mm

Eyepieces:

• Widefield 10x/21 mm, high eyepoint, secured by screw with rubber cups

• Field number: 21 mm

• Dioptric adjustment on both eyepieces

• Optional micrometric scale

• Diameter of micrometer glass: 23 mm

• Suitable for eyeglass wearers

• Retractable protections

Objective:

• Parfocal achromatic zoom, 0.7x to 4.5x (6.43:1 ratio), anti-fungus treated

• Greenough optical system

• Standard magnification range: 7x to 45x

• Working distance: 100 mm

Focusing:

• Rack and pinion coarse focusing mechanism

• Total coarse travel: 110 mm

• Adjustable tension

• Head holder internal diameter: 76 mm

Stand:

• High-grade, fixed arm stand with handle for easy transport

Stage:

• White diffusion plate for transmitted illumination (100 mm diameter)

• Optional black/white contrast plate for incident illumination

• Specimen clips included

Illumination:

• EcoLED™ system with swiveling incident and transmitted light

• Manual brightness control

• Color temperature: 6,300 K

• Long LED lifetime: over 65,000 hours

• Rechargeable Ni-MH batteries (3x AA size), up to 12 hours working time, 8 hours charging

• Multi-plug external power supply (EU, UK, US), input 100-240 Vac, output 5 Vdc 500 mA

• LED indicator

Additional Information:

• Maximum sample height: 100 mm

Included components:

• SLX-3 microscope

• Dust cover

• User manual (digital version, downloadable)

This microscope is ideal for professionals and enthusiasts who need reliable, high-quality imaging and ergonomic design for extended use in both laboratory and industrial environments.
