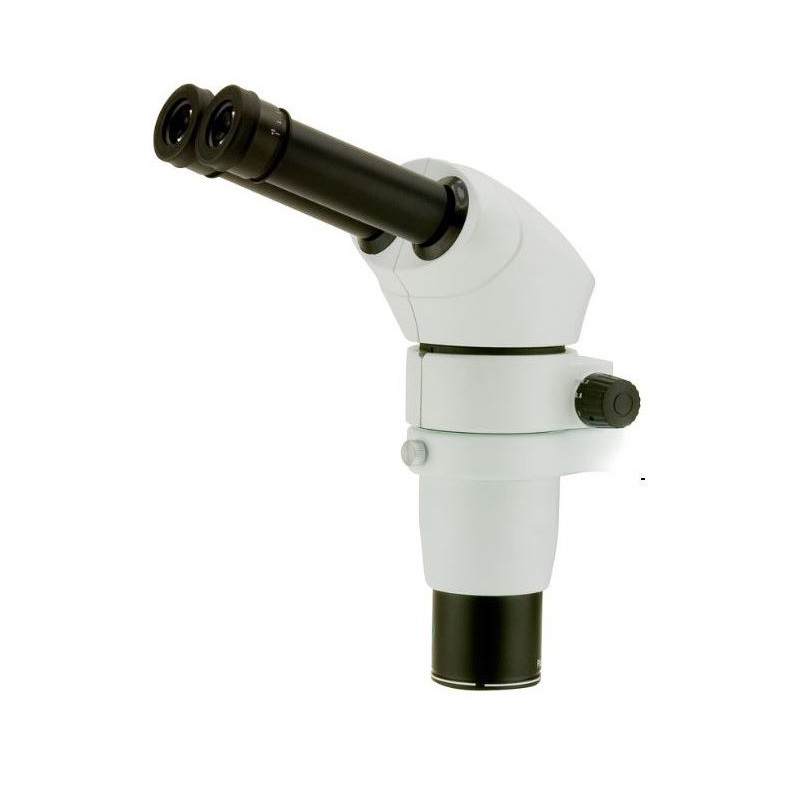

Optika SZP-10 zoom binocular head, with WF10X/22mm eyepieces (25440)

This microscope head does not include a built-in illumination system but can be paired with external illuminators such as halogen, LED, or optical fiber lights. It is compatible with the following illumination models: ST-151, ST-153, SZ-STL3Led, ST-155, ST-156, and SZ-STL8.

19215.96 zł
Tax included

15622.73 zł net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

This microscope head does not include a built-in illumination system but can be paired with external illuminators such as halogen, LED, or optical fiber lights. It is compatible with the following illumination models: ST-151, ST-153, SZ-STL3Led, ST-155, ST-156, and SZ-STL8.



Focusing

The SZP-10 can be used with a variety of stands, including ST-150, ST-151, ST-152, ST-153, SZ-STL1H, SZ-STL2H, SZ-STL3Led, SZ-STL3, SZ-STL4, ST-155, ST-156, and SZ-STL8. Alternatively, any focusing system with a 76 mm diameter head holder can be used.



Head

  • Binocular design, 360° rotating and 30° inclined for comfortable viewing

  • Diopter adjustment of ±5 on both eyepieces

  • Interpupillary distance adjustable from 52 to 75 mm

Eyepieces and Optics

  • Widefield eyepieces WF10x/22, field number 22

  • Parfocal achromatic objective 1x

  • Working distance: 80 mm

  • Zoom range: 0.8x to 8x, with a zoom factor of 10:1

  • Maximum standard magnification: 80x (expandable up to 320x with additional accessories)

Accessories

The package includes an instruction manual and a dust cover.



Specifications

  • Magnification range: 8x to 80x

  • Eyepiece: 10x/22 widefield

  • Optical system: CMO

  • Type: Binocular

  • Viewing posture: 30° oblique, 360° rotating head

  • Working distance: 80 mm

  • Series: SZP

  • Colour: White

Fields of Application

  • Suitable for industry, biology, metallurgy, mineralogy, semiconductor technology, dental technology, and marine biology

This stereozoom head is ideal for users who require flexibility in illumination and stand options, and who need precise, high-quality imaging for a wide range of professional and scientific applications.
