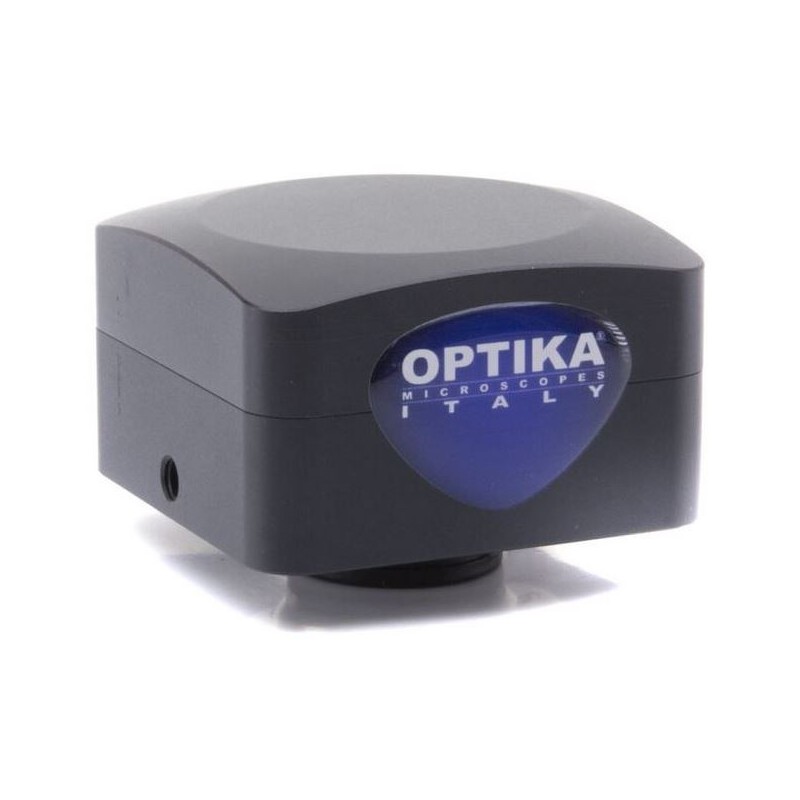

Optika Camera C-B10+, color, CMOS, 1/2.5", 10MP, USB 3.0 (66772)

This high-speed, user-friendly camera features a 10-megapixel CMOS sensor and a USB3.0 connection, making it ideal for general applications in education and home use, especially for capturing images of moving specimens.

109204.38 ¥
Tax included

88784.05 ¥ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

This high-speed, user-friendly camera features a 10-megapixel CMOS sensor and a USB3.0 connection, making it ideal for general applications in education and home use, especially for capturing images of moving specimens.

The camera is ready to use with any microscope, thanks to its direct eyepiece tube connection and included C-mount projection lens and rings. It can also be connected to trinocular tubes of various brands using the included C-mount projection lens or an additional focusable C-mount adapter.

Free downloadable software is available for Windows, Mac OS, and Linux, ensuring you always have access to the latest updates.

Key Features

  • Simple operation with no driver installation required

  • Universal compatibility with any microscope brand

  • Direct connection to eyepiece and trinocular ports

  • Delivers crisp, high-resolution 10 MP images

  • USB3.0 interface for fast image transfer and high frame rates

  • Reliable color fidelity

  • C-mount projection lens and rings included

  • USB cable and calibration slide included

  • Free downloadable software: OPTIKA ProView & LiteView for Windows, OPTIKA LiteView for Mac OS and Linux



Specifications

  • Sensor size: 1/2.5"

  • Megapixels: 10

  • Light sensitivity: 0.53V/lux-sec

  • Image format: 4:3

  • Photo resolution: 3584 x 2748 pixels

  • Interface: USB 3.0

  • Optical interface: C-mount

  • Color camera: Yes

  • Pixel size: 1.67 μm

  • Image transmission: USB 3.0

  • Sensor type: CMOS (Aptina)

  • Frame rate: 24.5 fps

  • Shutter type: Rolling shutter

  • Minimum exposure time: 0.4 ms

  • Maximum exposure time: 2000 ms

  • Sensitivity: 0.31 V/lux sec

  • Adapter required: 0.5x

  • Supported software: LiteView

  • Supported operating systems: Windows 7/8/10, Mac OS, Linux

  • Dimensions: 68 x 68 x 46 mm

  • Weight: 280 g

  • Series: C-B

  • Supplier product number: C-B10+

This camera is an excellent solution for anyone needing high-quality imaging with easy setup and universal compatibility for a wide range of microscopy applications.
