Optolong Filters Venus UV-Filter, 1.25'' (59434)

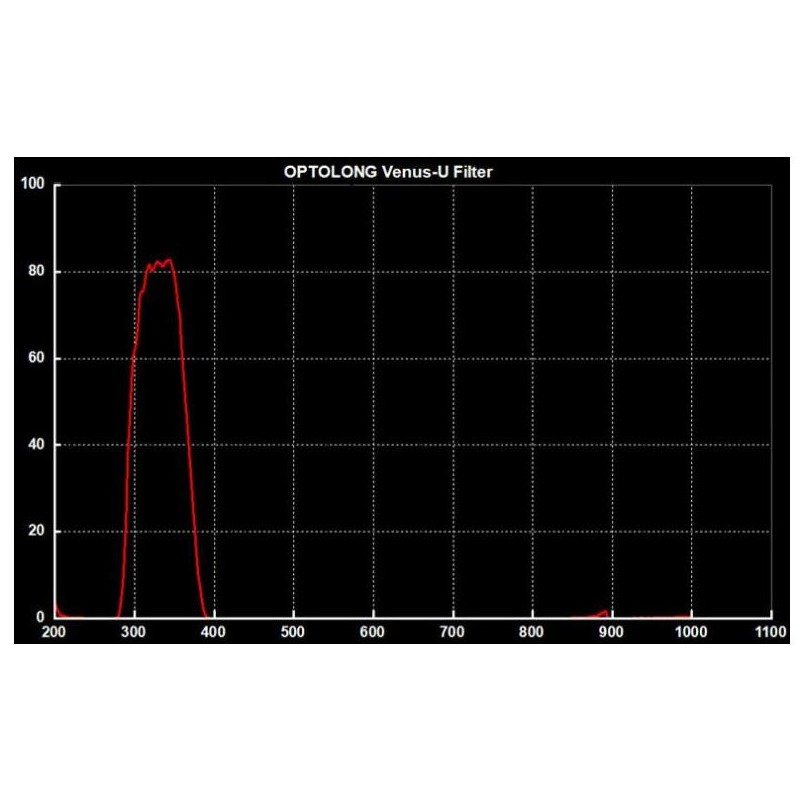

The Optolong Venus-U Filter is designed for capturing photographs, CCD, or video images in the UV-A range (320-400 nm), making it possible to observe cloud structures on Venus. This filter is intended for use with monochrome CCD cameras, provided the sensor’s cover glass and internal UV-IR blocker are removed to allow UV light to pass through. The same applies to mono DSLRs, which require removal of the built-in low pass filter. A specialized UV lens is also necessary for proper imaging.

485.27 BGN
Tax included

394.53 BGN net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Optolong Venus-U Filter is designed for capturing photographs, CCD, or video images in the UV-A range (320-400 nm), making it possible to observe cloud structures on Venus. This filter is intended for use with monochrome CCD cameras, provided the sensor’s cover glass and internal UV-IR blocker are removed to allow UV light to pass through. The same applies to mono DSLRs, which require removal of the built-in low pass filter. A specialized UV lens is also necessary for proper imaging. All-reflecting telescopes, such as Newtonians and RCs without correctors, are suitable if their reflective layers are made of aluminum. CCD and CMOS sensors can detect light in the 350-1100 nm range.



Important safety note:
Optolong filters are not designed for solar observation. Never look at the sun with an Optolong filter, as this can cause permanent blindness.



Coating features:

  • Multi-layer anti-reflection coating

  • Non-cemented optical substrate

  • Electron-beam gun evaporation with ion-assisted deposition for durability, scratch resistance, and stable central wavelength regardless of temperature changes

  • Planetary rotation system ensures precise, uniform coatings for high transmission in the pass-band and strong optical density outside the pass-band

This filter must never be used as the only solar filter.



Specifications

  • Optical coating: Multiple layers

  • Frame size: 1.25"

  • Transmission: 80%

  • Surface accuracy: 1/4

  • Material: Schott glass

  • Filter type: Planetary & comet filter

  • Suitable for photography: Yes

  • Suitable for Venus observation: Yes

  • Not suitable for visual use

Data sheet

3F5M32L0L5
