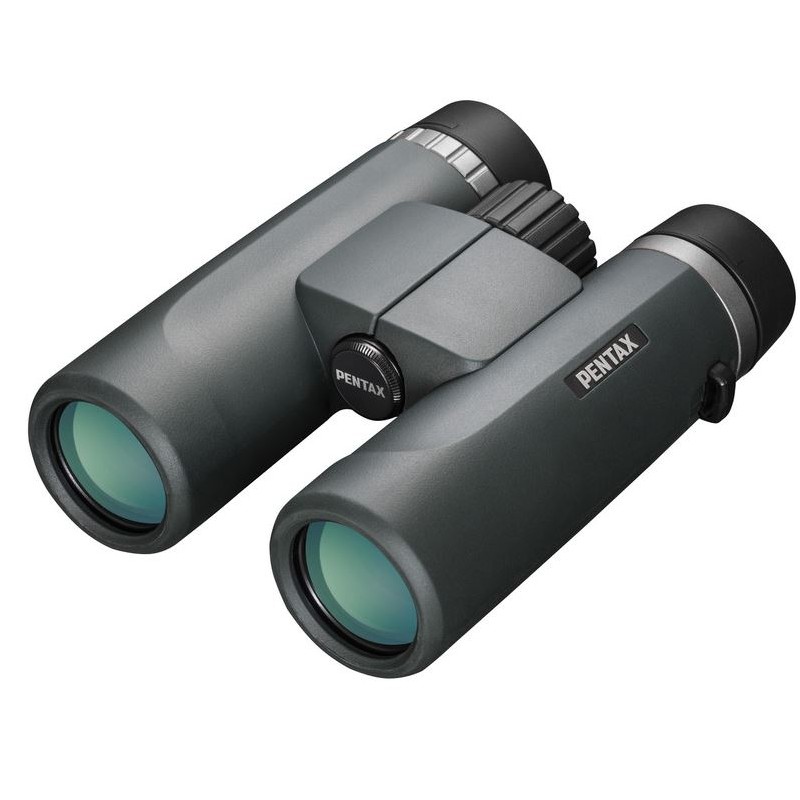

Pentax Binoculars AD 8x36 WP (49536)

The PENTAX AD-series includes compact roof prism binoculars with objective lenses smaller than 40mm. These models are designed to be portable and durable, serving as the smaller, more convenient version of the S-series. Despite their compact size, they deliver excellent optical performance. With fully multi-coated lenses, phase-corrected BaK4 prisms, and enhanced light transmission coatings, these binoculars provide sharp images with outstanding contrast. They also feature inner focusing, water and dustproof construction, nitrogen-purged interiors, a fully rubberized body, a central focus wheel, and twist-up eyecups for comfortable handling and easy focusing. Their modern design and high performance make them ideal for enjoyable viewing in various situations.

Key Features of the A-Series

• Fully multi-coated optics maximize light transmission and reduce flare and ghosting, resulting in clear and crisp images. Multiple coating layers are applied to every lens and prism surface.

• Enhanced light transmission coatings use advanced film-deposition technology to further increase brightness and provide accurate color reproduction.

• BaK4 prisms offer a high refractive index, producing a perfectly round exit pupil and a clear, unvignetted image.

• Phase correction coatings are applied to maximize image quality in the complex optical design of roof prism binoculars.

• Waterproof construction is fully sealed and nitrogen-purged, achieving a JIS Class 6 rating and allowing submersion in up to 3 feet of water.

• Nitrogen purging eliminates humidity inside the binoculars, preventing condensation during rapid temperature changes and keeping dust and particles out.

• Inner focus optics design reduces maintenance and extends product life by preventing exposure to airborne particles and moisture.

• Long eye relief allows users, including eyeglass wearers, to see the entire field of view comfortably and reduces eye strain during extended use.

Specifications for PENTAX AD 8x36

• Type: Roof prism binoculars

• Magnification: 8x

• Objective lens diameter: 36 mm

• Exit pupil: 4.5 mm

• Eye relief: 16 mm

• Eyepiece cups: Rotatable

• Glass material: BaK-4

• Lens coatings: Phase coating and full multi-coating

• Focusing system: Central focusing

• Diopter adjustment: Right side

• Special features:

  • Waterproof and splash-proof

  • Suitable for eyeglass wearers

  • Includes protection bag, lens cover, eyepiece cap, and wide loop connector for strap

  • Threaded tripod connector

• Field of view (true): 6.5°

• Field of view at 1,000 m: 113 m

• Close focus limit: 3.0 m

• Light intensity: 20.3

• Twilight factor: 16.9

• Surface material: Rubber armouring

• Color: Black

• Dimensions: 155 mm (length) x 129 mm (width) x 53 mm (height)

• Weight: 640 g

• Series: AD

Recommended Uses

• Bird watching: Good

• Hunting: Good

• Travel and sports: Good

• Sailing: Moderate suitability

• Astronomy: Not recommended

• Theatre: Not recommended

The PENTAX AD-series is an excellent choice for users seeking a compact, durable, and high-performing binocular for outdoor activities and general use.
