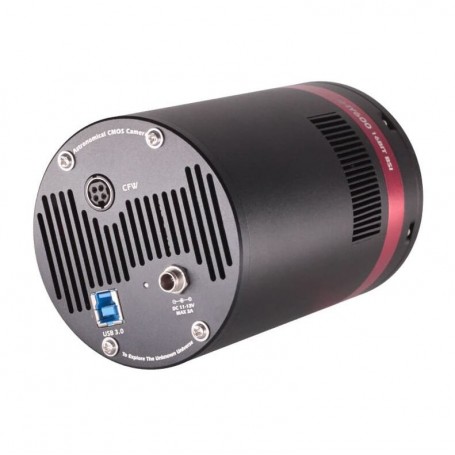

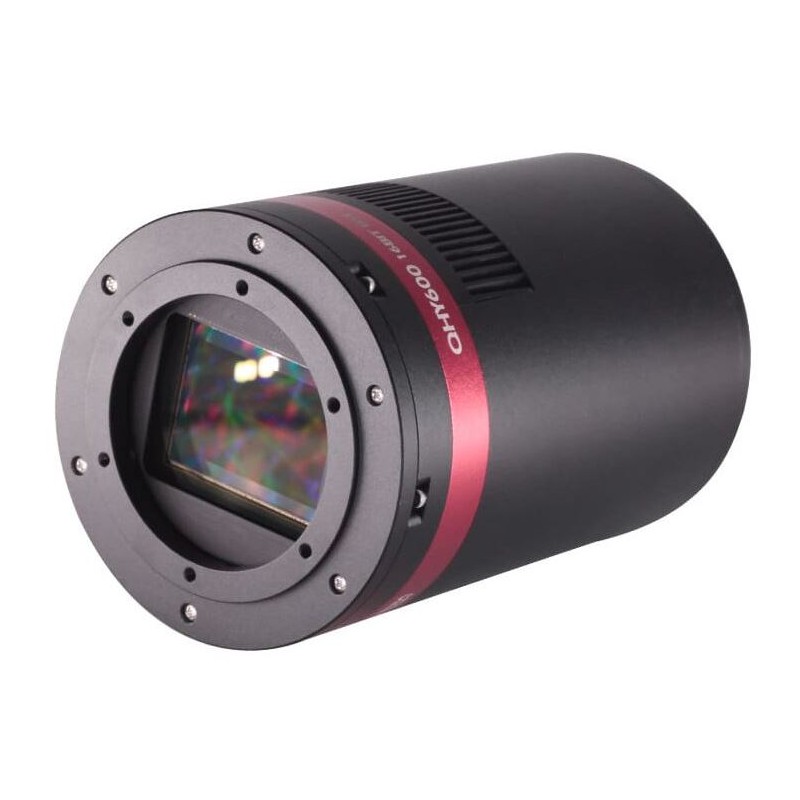

QHY Camera 600PH-C Color (84755)
The QHY Camera 600PH-C Color is a high-resolution, cooled color astrophotography camera built for capturing detailed images of the Moon, planets, nebulae, and galaxies. It features a large, back-illuminated CMOS sensor for outstanding sensitivity, advanced cooling with anti-dew technology, and a robust sealed design to prevent condensation and humidity issues. This camera is ideal for users seeking the convenience of direct RGB imaging without the need for additional filters or filter wheels.
6100.79 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
The QHY Camera 600PH-C Color is a high-resolution, cooled color astrophotography camera built for capturing detailed images of the Moon, planets, nebulae, and galaxies. It features a large, back-illuminated CMOS sensor for outstanding sensitivity, advanced cooling with anti-dew technology, and a robust sealed design to prevent condensation and humidity issues. This camera is ideal for users seeking the convenience of direct RGB imaging without the need for additional filters or filter wheels.
Back-Illuminated CMOS Sensor
The back-illuminated sensor design allows more light to reach the photosensitive layer, significantly increasing quantum efficiency and overall sensitivity. This means the camera can capture faint astronomical objects more effectively, producing clearer and more detailed images.
Cooling and Anti-Dew Control
Dual-stage TE cooling, a built-in dew heater, and a sealed chamber with a silicon gel tube keep the sensor dry and free from condensation. This ensures low noise and reliable operation, even during long exposures in challenging conditions.
Frame Rate
-
Full resolution: 4.0 FPS (8-bit output), 2.5 FPS (16-bit output)
-
ROI (Region of Interest): Up to 160 FPS at 9600 x 100 pixels
Specifications
Sensor type: CMOS (Sony IMX455)
Sensor size: 36 x 24 mm (full-frame)
Megapixels: 61.17
Pixel size: 3.76 µm
Photo resolution: 9576 x 6388 pixels
Bit depth: 16 bits
Active cooling: Yes (up to -35°C below ambient)
Interface: USB 3.0
Telescope connection: M54 thread
Color camera: Yes
Maximum exposure time: 60 minutes
Minimum exposure time: 40 microseconds
Frame rate (full resolution): 6.8 FPS
Read noise: 1.0 – 3.7 e-
Full well capacity: Greater than 51 ke-
Flange focal distance: 17.5 mm
Power supply: 12V (not included)
Shutter type: Rolling shutter
Cable length: 1.5 meters
Quantum efficiency: 87%
Internal memory: 2 GByte DDR3
Dark current: 0.0022 e-/pixel/sec
Infrared filter: Yes
Filter wheel: Not included
Weight: 780 grams
Recommended uses: Moon and planetary imaging, deep-sky objects such as nebulae and galaxies
Not suitable for: All-sky imaging, meteor detection, or use as an autoguider
