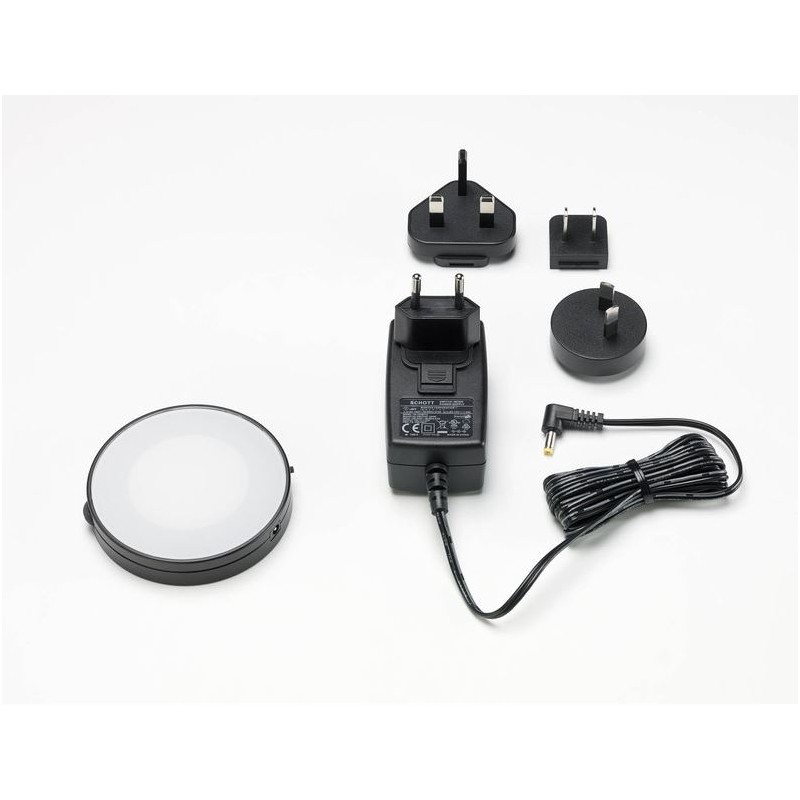

Schott EasyLED transmitted light system, i84mm, incl. power supply (49566)

The Schott EasyLED Transmitted Light System is designed to provide high-quality, uniform illumination for stereo microscopy and macroscopy. This system uses advanced neutral white LEDs and integrates controller electronics directly into the illuminator, ensuring easy operation and excellent color fidelity. The robust metal construction and efficient heat dissipation contribute to a long service life and consistent brightness. With its ergonomic design and flexible installation options, this illumination system is ideal for laboratory and professional microscopy applications.

Key Features:

• Ergonomic and compact design for stereo microscopes and macroscopes

• Integrated high-brightness neutral white LEDs (5600 K) for accurate color rendering

• Robust metal housing and efficient heat sinks for maximum brightness and a lifetime of up to 50,000 hours

• No separate controller box needed for ringlight and backlight; compact controller for spotlights

• Easy and intuitive operation with integrated jog dial wheel

• Continuous dimming from 0 to 100% for precise light adjustment

• Each device can be dimmed separately

• Wide input range power supply (100 - 240 V) with worldwide plug compatibility

• Manufactured in the EU

• Low cost for high quality and functionality

Transmitted Light Stage Features:

• Provides highly uniform backlight illumination

• Easily retrofits to incident light bases with a diameter of 84 mm (adaptors available)

• Integrated controller allows for continuous dimming (0–100%) and includes a separate on/off switch

• Illuminated area diameter: 50 mm

• Maximum luminance up to 12,000 cd/m²

Specifications:
Power supply: 12 V
Lamp type: 140 lm (LED)
Working distance: 50–130 mm
Height: 61 mm
Length: 24 mm
Width: 47 mm
Diameter: 84 mm
Series: EasyLED
Supplier product number: 600.400

This illumination system offers reliable, adjustable, and uniform lighting, making it an excellent choice for professionals seeking precise and comfortable microscopy lighting solutions.
