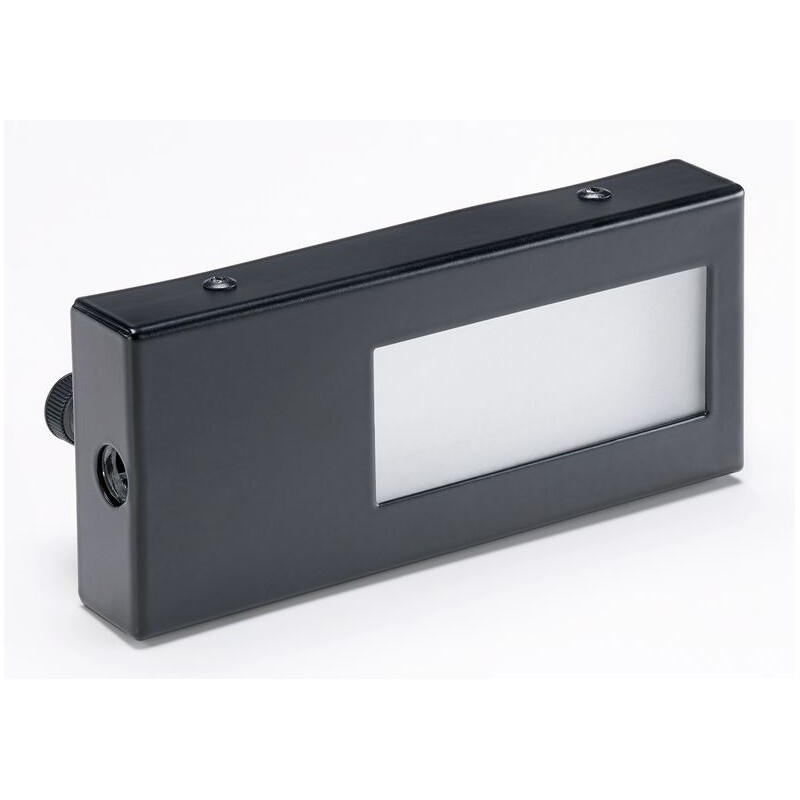

Schott Diffusing Facelight 78 x 30mm (49524)

The Schott Diffusing Facelight is designed to provide diffuse and uniform illumination over an active area of 78 x 30 mm. This accessory is ideal for illuminating polished or highly reflective surfaces, ensuring even light distribution without glare. It features a white acrylic diffuser plate for optimal uniformity and intensity, and mounts directly to the appropriate light guide using a thumb screw. The housing is made from rugged, black anodized aluminum, and the fiber bundle is protected with flexible metal PVC sheathing for added durability.

Key Features:

• Provides diffuse and uniform illumination over a 78 x 30 mm area

• White acrylic diffuser plate ensures a balance of uniformity and intensity

• Direct mounting to the light guide with a thumb screw

• Rugged black anodized aluminum housing

• Fiber bundle protected with flexible metal PVC sheathing

• Manufactured in the EU

Benefits:

• Ideal for illuminating polished or highly reflective surfaces

Specifications:
Diameter: 10 mm
Length: 137 mm
Height: 23 mm
Segmented: No
Series: KL-1500-1600-2500
Supplier product number: 500.100

This diffusing facelight is a reliable solution for applications that require soft, even lighting on shiny or reflective materials.
