Schott Goose neck guide, 2-branch Kombi PURAVIS 4,5mm / 500mm + 800mm (48488)

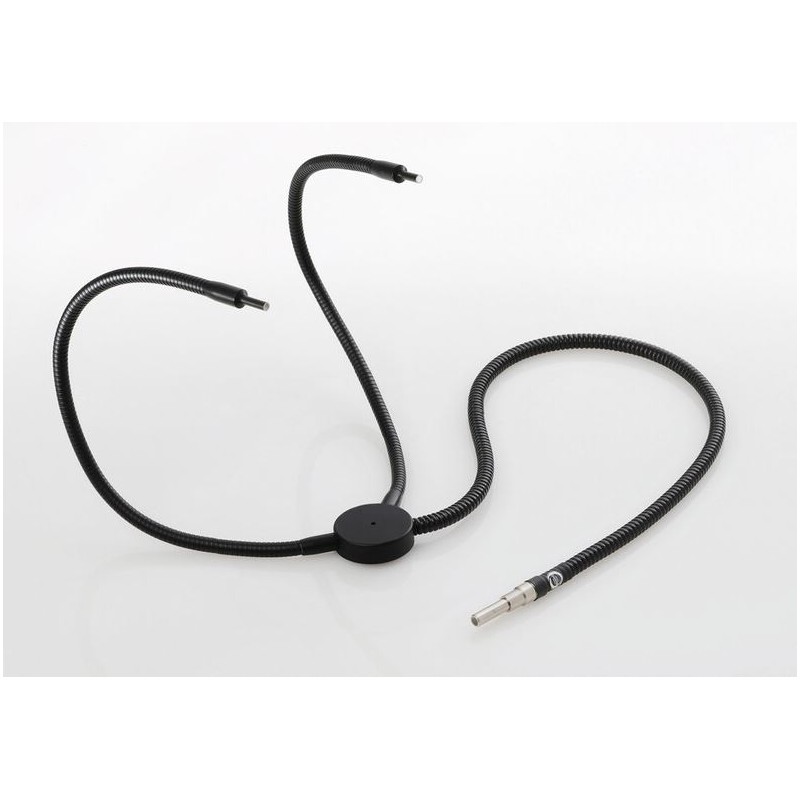

The Schott Gooseneck Guide, 2-branch Kombi PURAVIS, is designed for precise and versatile illumination in microscopy and inspection applications. This model features two branches: a semi-rigid gooseneck arm measuring 500 mm and an additional flexible light guide arm measuring 800 mm, both with a diameter of 4.5 mm. The black lacquered semi-rigid tubing allows for stable positioning, while the flexible arm offers extended reach and adaptability. Compatible with Schott cold light sources such as the KL 1500 HAL, KL 1600 LED, KL 2500 LED, and KL 2500 LCD, this guide can be further enhanced with focusing optics and color filters.

Key Features:

• Flex-and-stay gooseneck arm (500 mm) and flexible light guide arm (800 mm) for versatile illumination

• Black lacquered semi-rigid tubing for stable and precise positioning

• Focusing optics and color filter options available

• Compatible with KL 1500 HAL, KL 1600 LED, KL 2500 LED, and KL 2500 LCD cold light sources

• Articulating arms and holders available for flexible mounting

• High flexibility for different illumination techniques and remote lighting

Benefits:

• Precise positioning for complete control of light placement

• Dual branches can be positioned in opposite directions for near shadow-free illumination

• Easy to re-adjust as needed

• Dual models illuminate the workspace with a single light source

• Can be fixed to a microscope post for stable operation

Specifications:
Type: Gooseneck
Diameter: 4.5 mm (each branch)
Length: 500 mm (gooseneck arm), 800 mm (flexible arm)
Series: KL-1500-1600-2500
Supplier product number: 170.402

This dual-branch gooseneck guide is an excellent choice for users who require adaptable, precise, and stable lighting for detailed inspection, microscopy, or technical applications.
