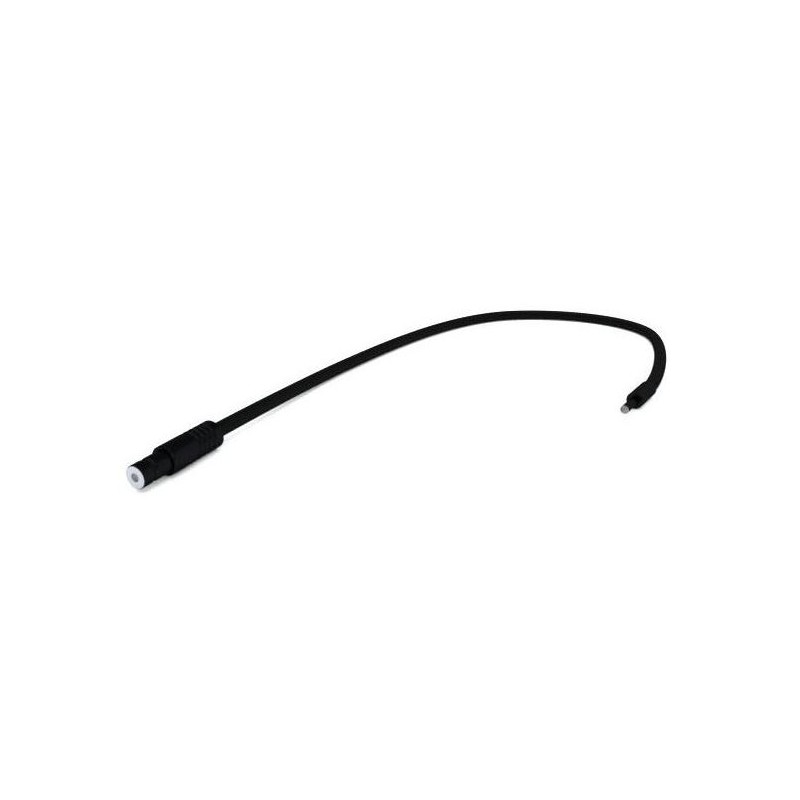

StarLight Opto-Electronics GLF1-1600-4.5, 1-arm, arm length 1600 mm, active diameter 4.5 mm (58736)

The StarLight Opto-Electronics GLF1-1600-4.5 is a high-quality fiber optical light guide designed for precision spot illumination in laboratory, industrial, and inspection settings. With a single flexible arm measuring 1600 mm in length and an active diameter of 4.5 mm, this light guide is compatible with both halogen and LED cold light sources. It delivers efficient, focused illumination with minimal heat generation at the object, making it ideal for sensitive samples or components. The GLF1-1600-4.5 is highly adaptable, offering compatibility with cold light sources from all major manufacturers and the ability to meet specific customer requirements.

This fiber optical light guide is an excellent choice for applications requiring precise, reliable, and cool illumination, ensuring optimal performance and versatility in demanding environments.

Key Features

• Designed for use with halogen and LED cold light sources

• Low heat generation at the point of illumination

• Available in versions with multiple flexible arms

• Excellent light transmission and high luminous efficiency

• Highly flexible for easy positioning

• Provides precise spot illumination

• Adaptable to various cold light sources and customer needs

Technical Data

• Number of arms: 1

• Active light guide diameter: 4.5 mm

• Arm length: 1600 mm

• Standard light guide access: 15 mm

• Light output diameter: 13 mm

• Light input diameter: 15 mm

• Outer tube diameter: 10 mm

• Illumination: Point-like, with a 70° beam angle

• Maximum temperature at light source input: 240°C

• Maximum ambient temperature: 80°C

• Tube material: Steel spiral with PVC coating
