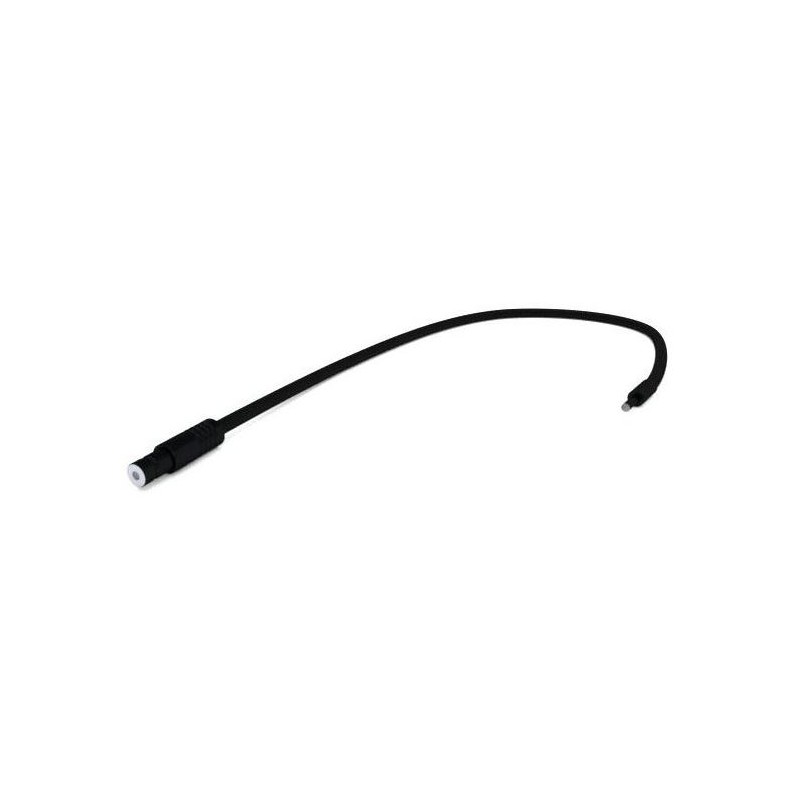

StarLight Opto-Electronics GLF1-1600-11.0, 1-arm, arm length 1600 mm, active diameter 11 mm (58738)

The StarLight Opto-Electronics GLF1-1600-11.0 is a fiber optical light guide designed for precise and powerful spot illumination in laboratory, industrial, and inspection applications. This model features a single flexible arm with a length of 1600 mm and an active diameter of 11 mm, providing a broad, focused beam and excellent reach. It is compatible with both halogen and LED cold light sources, ensuring efficient light transmission and minimal heat generation at the illuminated object. The GLF1-1600-11.0 can be adapted to cold light sources from all major manufacturers and customized to meet specific user requirements.

This fiber optical light guide is an excellent choice for applications requiring strong, reliable, and cool spot illumination, offering high flexibility and performance in demanding environments.

Key Features

• Suitable for use with halogen and LED cold light sources

• Low heat generation at the target area

• Available in versions with multiple flexible arms

• Excellent light transmission and high luminous efficiency

• Highly flexible for easy positioning and adjustment

• Provides focused, point-like spot illumination

• Compatible with cold light sources from all manufacturers

• Adaptable to customer needs

Technical Data

• Number of arms: 1

• Active light guide diameter: 11 mm

• Arm length: 1600 mm

• Standard light guide access: 15 mm

• Light output diameter: 13 mm

• Light input diameter: 15 mm

• Outer tube diameter: 10 mm

• Illumination: Point-like, with a 70° beam angle

• Maximum temperature at light source input: 240°C

• Maximum ambient temperature: 80°C

• Tube material: Steel spiral with PVC coating
