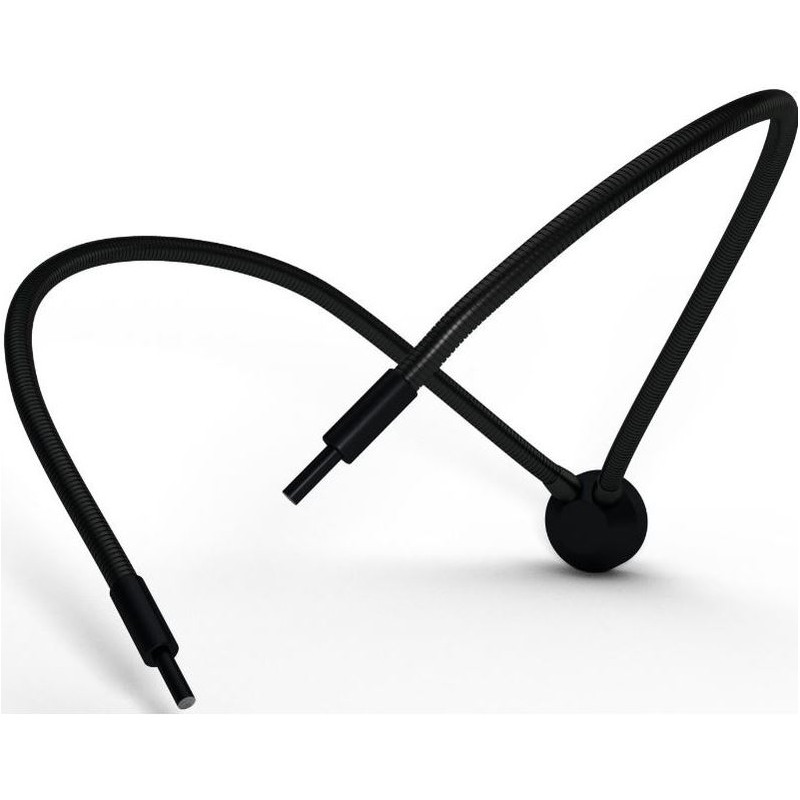

StarLight Opto-Electronics GLS2-450-4.5, 2-arm, arm length 450 mm, active diameter 4.5 mm (58747)

The StarLight Opto-Electronics GLS2-450-4.5 is a fiber optical light guide designed for precise spot illumination in laboratory, industrial, and inspection settings. This model features two flexible arms, each with a length of 450 mm and an active diameter of 4.5 mm, providing targeted and adjustable lighting for detailed work. It is compatible with both halogen and LED cold light sources, ensuring efficient light transmission and minimal heat buildup at the illuminated object. The GLS2-450-4.5 is adaptable to cold light sources from all major manufacturers and can be tailored to meet specific customer requirements.

This dual-arm fiber optical light guide is an excellent choice for applications that require precise, reliable, and cool spot illumination, offering flexibility and high performance in demanding environments.

Key Features

• Suitable for halogen and LED cold light sources

• Low heat generation at the point of illumination

• Available in versions with multiple flexible arms

• Excellent light transmission and high luminous efficiency

• Highly flexible for easy positioning and adjustment

• Provides focused, point-like spot illumination

• Compatible with cold light sources from all manufacturers

• Adaptable to customer needs

Technical Data

• Number of arms: 2

• Active light guide diameter: 4.5 mm per arm

• Arm length: 450 mm

• Standard light guide access: 15 mm

• Light output diameter: 13 mm

• Light input diameter: 44 mm

• Outer tube diameter: 10 mm

• Illumination: Point-like, with a 70° beam angle

• Maximum temperature at light source input: 230°C

• Tube material: Steel/brass, black painted
