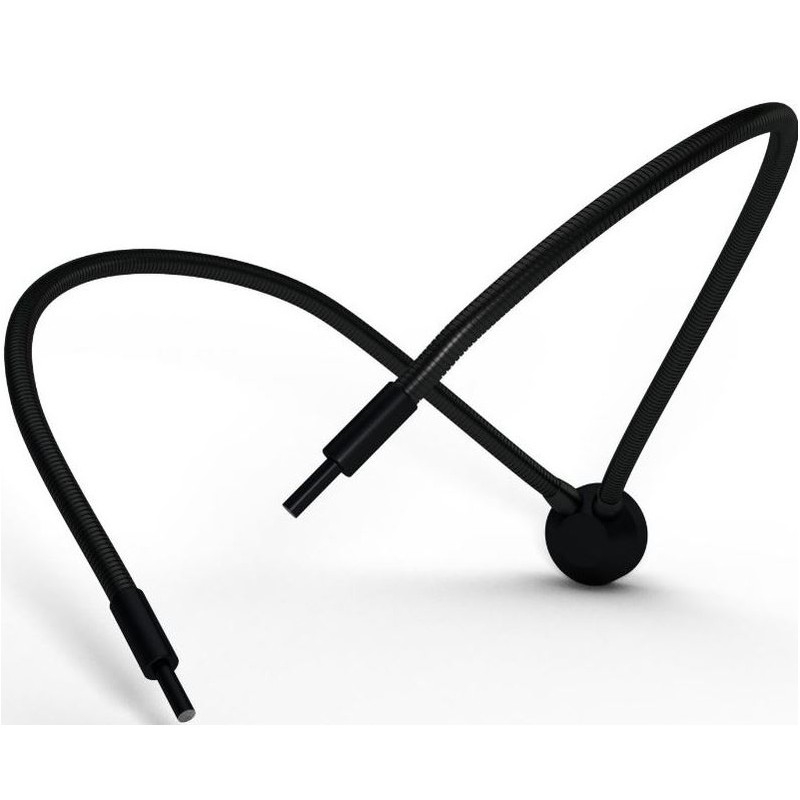

StarLight Opto-Electronics GLS2-600+800-4.5, 2-arm, arm length 600 mm + 800 mm, active diameter 4.5 mm (58750)

The StarLight Opto-Electronics GLS2-600+800-4.5 is a fiber optical light guide designed for precise and flexible spot illumination in laboratory, industrial, and inspection environments. This model features two flexible arms, one with a length of 600 mm and the other with 800 mm, each with an active diameter of 4.5 mm. This combination allows for targeted and adjustable lighting in a variety of settings. The light guide is compatible with both halogen and LED cold light sources, ensuring efficient light transmission and minimal heat generation at the illuminated object. The GLS2-600+800-4.5 can be adapted to cold light sources from all major manufacturers and customized to meet specific user needs.

This dual-arm fiber optical light guide is an excellent solution for applications that require precise, reliable, and cool spot illumination, offering flexibility and high performance in demanding environments.

Key Features

• Suitable for halogen and LED cold light sources

• Low heat generation at the point of illumination

• Available in versions with multiple flexible arms

• Excellent light transmission and high luminous efficiency

• Highly flexible for easy positioning and adjustment

• Provides focused, point-like spot illumination

• Compatible with cold light sources from all manufacturers

• Adaptable to customer requirements

Technical Data

• Number of arms: 2

• Active light guide diameter: 4.5 mm per arm

• Arm lengths: 600 mm and 800 mm

• Standard light guide access: 15 mm

• Light output diameter: 13 mm

• Light input diameter: 44 mm

• Outer tube diameter: 10 mm

• Illumination: Point-like, with a 70° beam angle

• Maximum temperature at light source input: 230°C

• Tube material: Steel/brass, black painted
