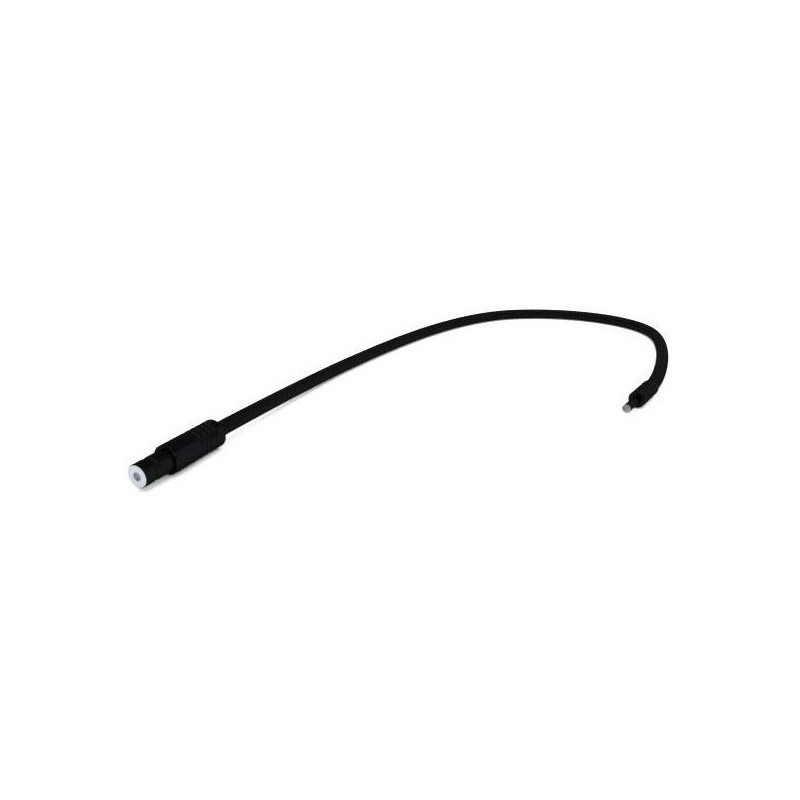

StarLight Opto-Electronics GLF1-1000-11.0, 1-arm, arm length 1000 mm, active diameter 11.0 mm (58735)

The StarLight Opto-Electronics GLF1-1000-11.0 is a fiber optical light guide designed for spot illumination in scientific, industrial, and inspection applications. This model features a single flexible arm with a length of 1,000 mm and an active diameter of 11 mm, ensuring high flexibility, excellent light transmission, and low heat generation at the object. It is compatible with both halogen and LED cold light sources from any manufacturer and can be adapted to specific customer requirements. The sturdy construction and efficient design make it suitable for demanding environments where precise and reliable illumination is essential.

This fiber optical light guide is ideal for applications that require precise, efficient, and adaptable spot illumination.

Key Features:

• Suitable for halogen and LED cold light sources

• Low heat generation on the object

• High flexibility and luminous efficiency

• Spot illumination with a 70° beam angle

• Adaptable to various cold light sources and customer needs

Technical Data:

• Number of arms: 1

• Active light guide diameter: 11 mm

• Arm length: 1,000 mm

• Light guide access: Standard 15 mm

• Diameter of light output: 13 mm

• Diameter of light input: 15 mm

• Outer tube diameter: 10 mm

• Illumination: Point-like

• Beam angle: 70°

• Maximum temperature at light source input: 240°C

• Maximum ambient temperature: 80°C

• Tube material: Steel spiral, PVC
