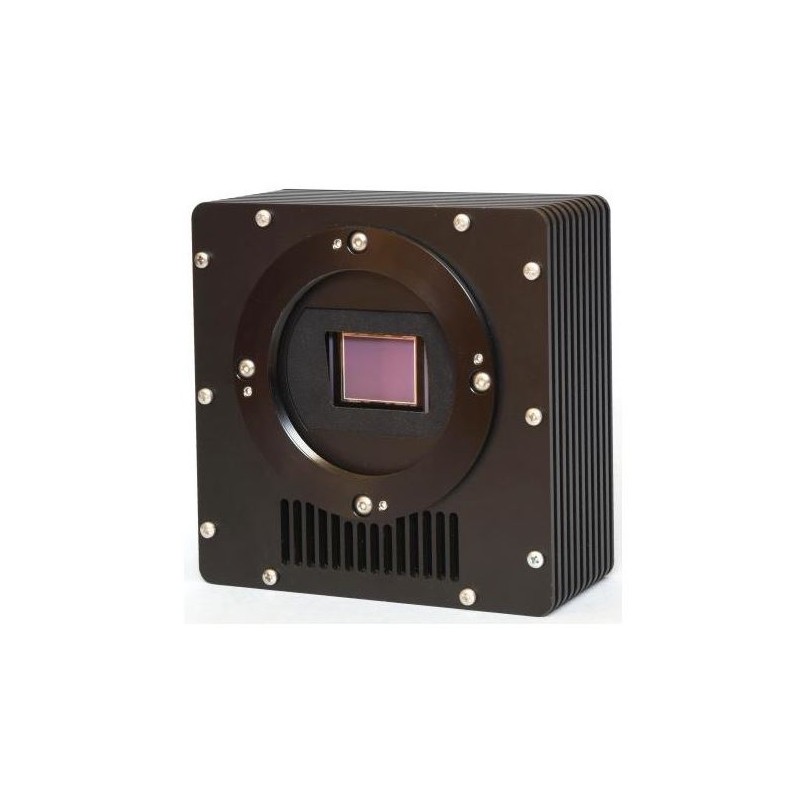

Starlight Xpress Camera Trius SX-46 Mono (56657)

The Starlight Xpress Camera Trius SX-46 Mono is a high-end full-frame CCD camera designed for advanced astrophotography. It features a 16.7 megapixel ON Semiconductor KAF-16200 sensor with an APS-H format (27 x 21.6 mm) and 6.0 μm pixels, delivering high resolution and excellent sensitivity. The camera is equipped with a mechanical roller blind shutter for uniform exposures, a multi-coated synthetic sapphire input window for superior thermal conductivity, and a compact, dry argon-filled CCD chamber that eliminates the need for desiccant. Its three-stage Peltier cooler provides cooling of more than 50°C below ambient, ensuring low noise and high image quality even during long exposures.

Key Features:

• 16.7 megapixel ON Semiconductor KAF-16200 CCD sensor

• APS-H format (27 x 21.6 mm), 6.0 μm pixel size

• Peak quantum efficiency of approximately 58% at 530 nm

• Mechanical stepper-driven roller blind shutter for uniform illumination

• Multi-coated synthetic sapphire input window for efficient heat transfer and dew prevention

• Dry argon-filled, O-ring sealed CCD chamber-no desiccant required

• Built-in LED flood illuminator for RBI elimination

• Fast image download (approx. 6.5 seconds for a full frame)

• Three-stage Peltier cooling, better than -50°C below ambient

• Integrated 3-port USB 2.0 hub

• Compact and lightweight (136 x 136 x 70 mm, 1.7 kg)

• Power consumption less than 2 amps at 12V DC

Technical Specifications:

• Sensor type: CCD-chip (KAF-16200)

• Sensor size: 27 x 21.6 mm

• Megapixels: 16.7

• Pixel size: 6.0 μm

• Image resolution: 4540 x 3640 pixels

• Active cooling: Yes, three-stage Peltier

• Max cooling below ambient: >50°C

• Minimum exposure time: 0.1 seconds

• Read noise: 9 electrons

• Full well capacity: 41,000 electrons

• Power supply: 12V DC

• Shutter: Mechanical

• Interfaces: USB 2.0, 3-port USB hub

• Weight: 1,700 g

• Dimensions: 136 x 136 x 70 mm

• Filter wheel: Not included

• Color camera: No (monochrome)

• Suitable for: Deep sky imaging (nebulae, galaxies); not intended for planetary, lunar, or meteor imaging
