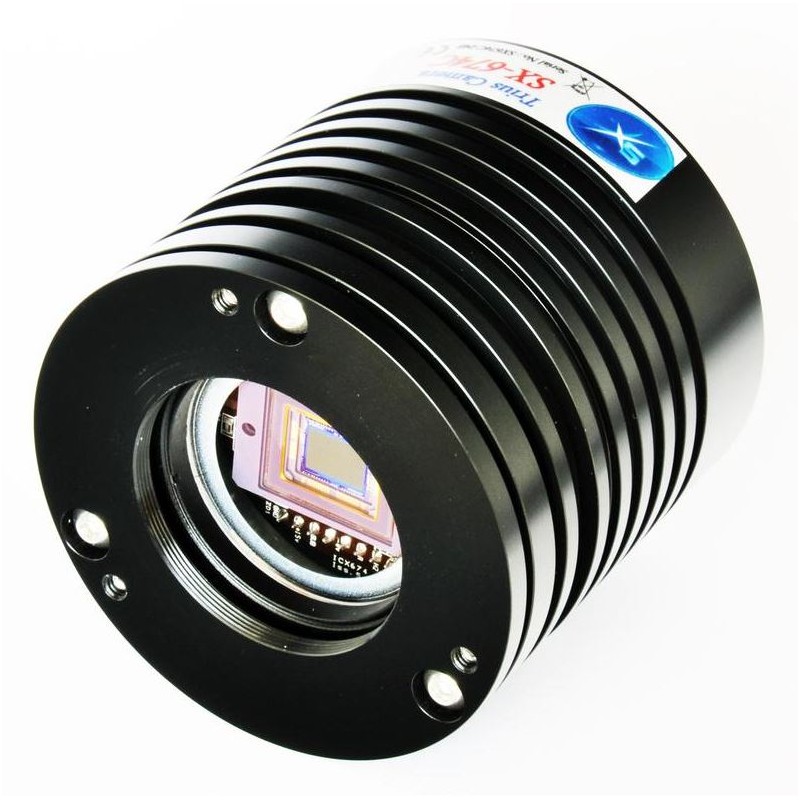

Starlight Xpress Camera Trius PRO-674 Mono (33552)

The Starlight Xpress Camera Trius PRO-674 Mono is a high-quality cooled monochrome CCD camera designed for astrophotography, suitable for capturing both deep sky objects and planetary details. It features a Sony ICX674ALG sensor with 2.8 megapixels, a resolution of 1940 x 1460, and a pixel size of 4.5 μm, delivering sharp and detailed images. The camera is equipped with a two-stage Peltier cooling system, allowing it to reach up to 40°C below ambient temperature, which significantly reduces noise for long exposures. The argon-filled sensor chamber prevents condensation, and the multi-coated quartz glass optical window ensures maximum light transmission and durability.

An integrated USB hub allows you to connect up to three peripheral devices directly to the camera, helping to minimize cable clutter on your telescope setup. The adjustable front adapter plate ensures the sensor can be precisely aligned with the telescope focal plane. Only high-grade CCD sensors are used, guaranteeing no dead pixels or defective columns.

Key Features:

• High-quality monochrome CCD sensor (Sony ICX674ALG)

• 2.8 megapixels (1940 x 1460 pixels), 4.5 μm pixel size

• Multi-coated quartz glass optical window

• Two-stage Peltier cooling system, up to -40°C below ambient

• Argon-filled sensor chamber to prevent condensation

• Integrated USB 2.0 hub for connecting up to three peripherals

• Adjustable adapter plate for precise sensor alignment

• Robust, lightweight aluminum housing

• Anti-blooming for improved image quality

• Suitable for use as an autoguider

Technical Specifications:

• Type: Astro CCD camera, monochrome

• Sensor type: Sony ICX674ALG

• Sensor size: 8.81 x 6.63 mm

• Pixel size: 4.5 μm

• Resolution: 2.8 megapixels (1940 x 1460 pixels)

• Quantum efficiency: 77% at 600 nm, 65% at 656 nm

• Full well capacity: 20,000 electrons

• Read noise: 5 electrons

• Bit depth: 16 bit

• Flange focal distance: 17 mm

• Active cooling: Yes, two-stage Peltier

• Power supply: 12V DC

• Power consumption: 1,500 mA

• Interfaces: USB 2.0, three-port USB hub

• Telescope connection: T2 thread

• Diameter: 75 mm

• Length: 70 mm

• Weight: 400 g

• Outer material: Aluminum

• Filter wheel: Not included

• Suitable for: Moon, planets, nebulae, galaxies, and autoguiding
