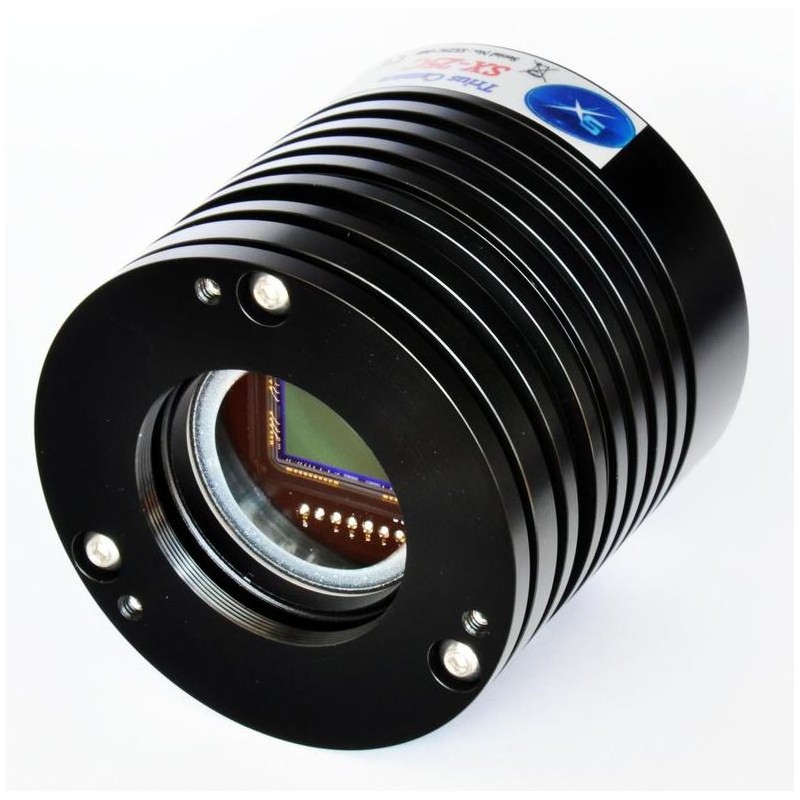

Starlight Xpress Camera Trius PRO-25C Color (33559)

The Starlight Xpress Trius PRO-25C Color is a high-quality cooled CCD camera designed for deep sky astrophotography. Starlight Xpress is known for its compact, innovative designs and outstanding quality, and the Trius series continues this reputation by offering improved noise performance and fast download speeds of about two million pixels per second.

The Starlight Xpress Trius PRO-25C Color camera is an excellent choice for astrophotographers who need high sensitivity, low noise, and reliable color imaging. Its advanced cooling, integrated USB hub, and premium-grade sensor make it well-suited for capturing detailed, low-noise color images of a wide range of celestial objects.

Main Features

• Integrated USB hub allows you to connect up to three peripheral devices directly to the camera (5V DC, maximum 200 mA per port), helping to keep your telescope setup organized and free of cable clutter. A guider can be connected using the RJ11 output.

• The camera is equipped with a multi-coated quartz glass optical window for enhanced image quality and durability.

• The advanced Peltier cooling system is highly efficient for a compact camera. A built-in fan at the back draws air through small holes in the front, and an additional side fan helps keep the camera cool in warmer weather.

• The CCD sensor chamber is filled with argon gas to prevent moisture condensation and to support effective cooling due to argon's low thermal conductivity.

• An adjustable adapter plate on the front of the camera allows the sensor to be aligned parallel to the telescope’s focal plane.

• Only high-quality grade 1 or better CCD sensors are used, ensuring there are no dead pixels or defective columns.

Technical Specifications

• Camera type: Astro CCD camera

• Sensor type: Sony ICX453 CCD

• Sensor size: 23.4 x 15.6 mm

• Sensor diagonal: 28.1 mm

• Megapixels: 6.2

• Image resolution: 3024 x 2016 pixels

• Pixel size: 7.8 microns

• Read noise: 7 electrons

• Active cooling: Yes (Peltier)

• Color camera: Yes

• Filter wheel: Not included

• Diameter: 75 mm

• Length: 70 mm

• Weight: 450 grams

• Series: Trius

Applications

• Suitable for use as an autoguider

• Excellent for imaging the Moon and planets

• Ideal for capturing nebulae and galaxies
