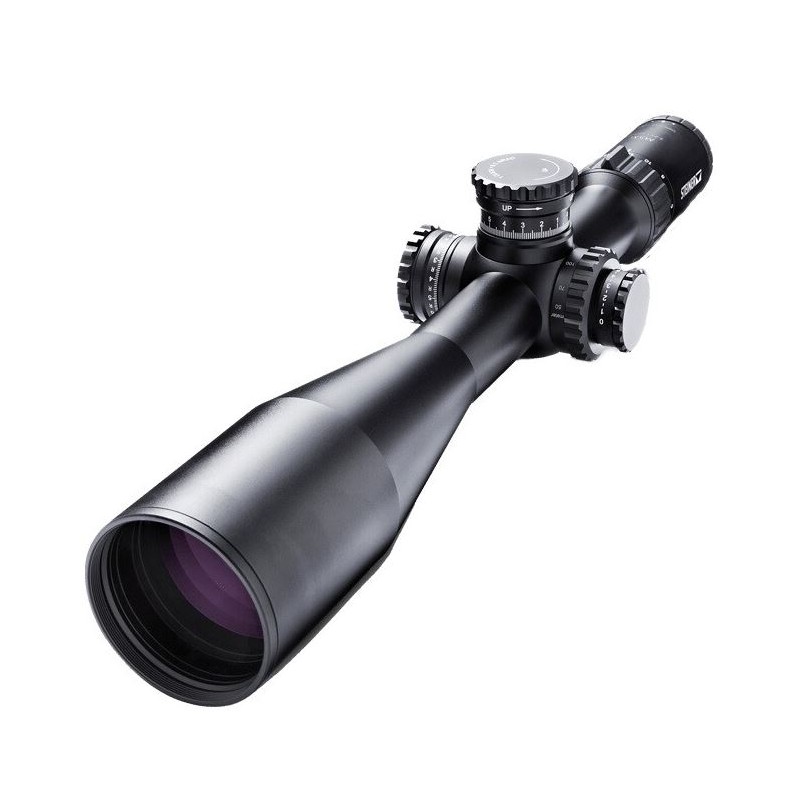

Steiner Riflescope 5-25x56 LM MX5i, G2B Mil-Dot FFP black (81004)

The Steiner Riflescope 5-25x56 LM MX5i with G2B Mil-Dot reticle in the first focal plane is a high-performance optic designed for precision long-range shooting and demanding hunting applications. Built to military standards, this riflescope offers exceptional ruggedness, reliability, and optical clarity, making it suitable for use with magnum calibers and in challenging environments. The large 56 mm objective lens and fully multi-coated optics provide excellent light transmission and bright images, even in low-light conditions. The 34 mm main tube allows for a wide adjustment range, and the illuminated G2B Mil-Dot reticle is ideal for accurate ranging, holdover, and windage corrections.

Key Features

• Variable magnification from 5x to 25x for versatile use, from mid-range to extreme long-range shooting

• Large 56 mm objective lens for superior light gathering and image brightness

• G2B Mil-Dot reticle in the first focal plane (FFP), allowing the reticle to scale with magnification for accurate measurements at any power

• Illuminated reticle with multiple brightness settings for day and night use

• Fully multi-coated lenses for maximum clarity and contrast

• Robust 34 mm central tube for increased adjustment range and durability

• Waterproof, fog-proof (nitrogen-filled), and shock-resistant construction

• Side parallax adjustment from 50 meters to infinity for precise focus at all distances

• Precise, tactile elevation and windage adjustments with 1 cm per click at 100 meters

• DuoScale elevation knob for quick reference and resettable zero

• Long eye relief (90–110 mm) for comfortable and safe use, even with high-recoil rifles

Specifications

• Magnification: 5x to 25x (zoomable)

• Objective lens diameter: 56 mm

• Exit pupil: 9.8 mm (min. magnification), 2.2 mm (max. magnification)

• Eye relief: 90–110 mm

• Diopter compensation: +2 to -3

• Central tube diameter: 34 mm

• Field of view at 100 m: 7.23 m (min. magnification), 1.43 m (max. magnification)

• Parallax-free: 50 m to infinity (side focus)

• Adjustment per click: 1 cm at 100 m (0.1 mrad)

• Elevation range at 100 m: up to 260 cm (26 mrad)

• Windage range at 100 m: ±60 cm (6 mrad)

• Twilight factor: 16.7 (min. magnification), 37.4 (max. magnification)

• Reticle: G2B Mil-Dot, first focal plane (FFP), illuminated

• Reticle use: Designed for sporting shooters and long-range applications

• Length: 420 mm

• Weight: 1000 g

• Objective lens outside diameter: 62 mm

• Eyepiece outside diameter: 45 mm

• Color: Matte black

• Series: M5Xi

Special Features

• Illuminated reticle with rotary digital control and intermediate off positions

• Waterproof up to 10 meters and dew protected

• Shock-proof up to 900 G

• Nitrogen-filled for fog-proof performance

• Resettable zero on elevation knob

• Protection cap included

Recommended Applications

• Long-distance shooting: Very good

• Magnum caliber rifles: Very good

• Raised hide hunting: Good

• General hunting and sporting use: Excellent for precision and reliability
