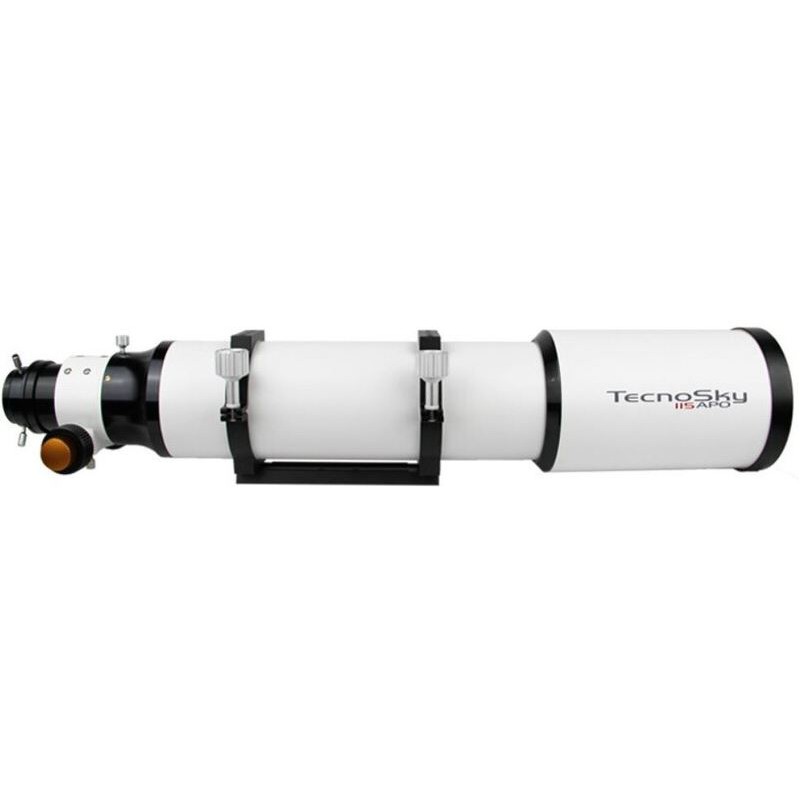

Tecnosky Apochromatic refractor AP 115/800 V3 Triplet OTA (57325)

The Tecnosky AP 115/800 V3 is a high-quality apochromatic refractor telescope designed for advanced users and astrophotography enthusiasts. Featuring a triplet lens design, this optical tube assembly (OTA) delivers sharp, color-corrected images with excellent light-gathering capabilities. Its robust aluminum construction ensures durability, while the precision focuser and versatile connections make it suitable for various imaging setups. Although it does not come with a mount or finder scope, it includes essential accessories for astrophotography.

Specifications

Optics

• Type: Refractor (Apochromat)

• Lens Design: Triplet

• Aperture: 115 mm

• Focal Length: 800 mm

• Aperture Ratio: f/7

• Resolving Capacity: 1 arcsecond

• Limiting Magnitude: 12.1

• Light Gathering Capacity: 270 times the human eye

• Maximum Useful Magnification: 230x

• Tube Weight: 6.4 kg

• Tube Material: Aluminum

• Carrying Length: 710 mm

• Tube Construction: Full tube

• Coating: Fully Multi-Coated (FMC)

• Stray Light Baffles: Yes

• Dew Cap Diameter: 140 mm

Focuser

• Type: Gear rack

• Free Aperture: 64 mm

• Rotating: Yes

• Telescope-Side Thread: M113

• Camera-Side Thread: M68

• Eyepiece Connection: 2"

• Gear Reduction: 1:10 fine focusing

• Load Capacity: 5 kg

• Adjustment Range: 80 mm

• Ring Clamp: Yes

Mount

• Mounting Type: None (OTA only)

• GoTo Control: No

Included Accessories

• Corrector: Not included

• Eyepiece Adaptor: 1.25" & 2"

• Prism Rail: Vixen-Style

• Tube Clamps: Yes

• Finder Base: Not included

• Finder Scope: Not included

• Dew Shield: Yes

• Transport Cases: Not included

• Deviating Optics: Not included

Area of Application

• Astrophotography: Yes (very good)

• Nature Observation: No

Recommended For

• Beginners: No

• Advanced Users: Yes

• Observatories: No

This telescope is ideal for experienced astronomers seeking a portable, high-performance OTA for deep-sky imaging and advanced visual observations.
